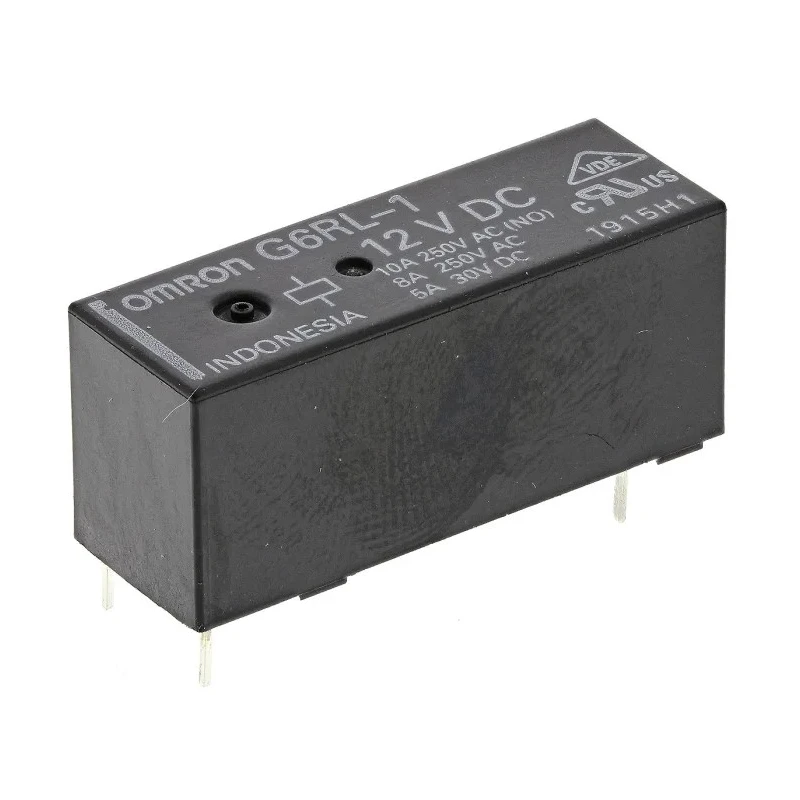

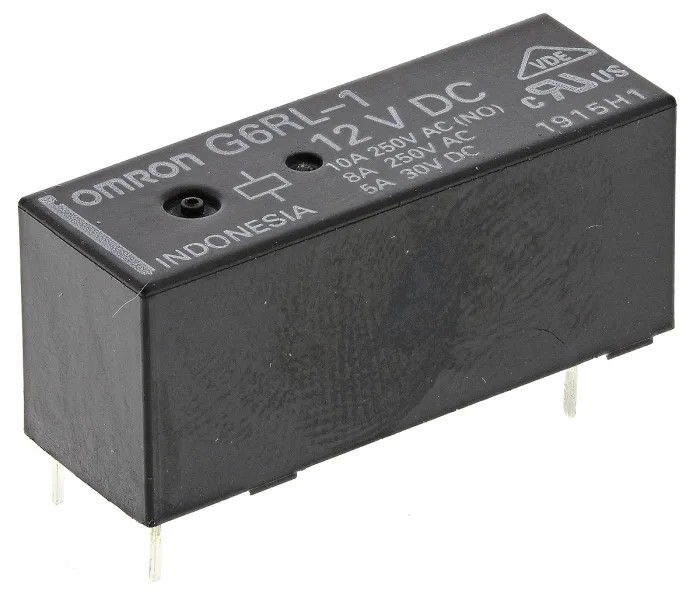

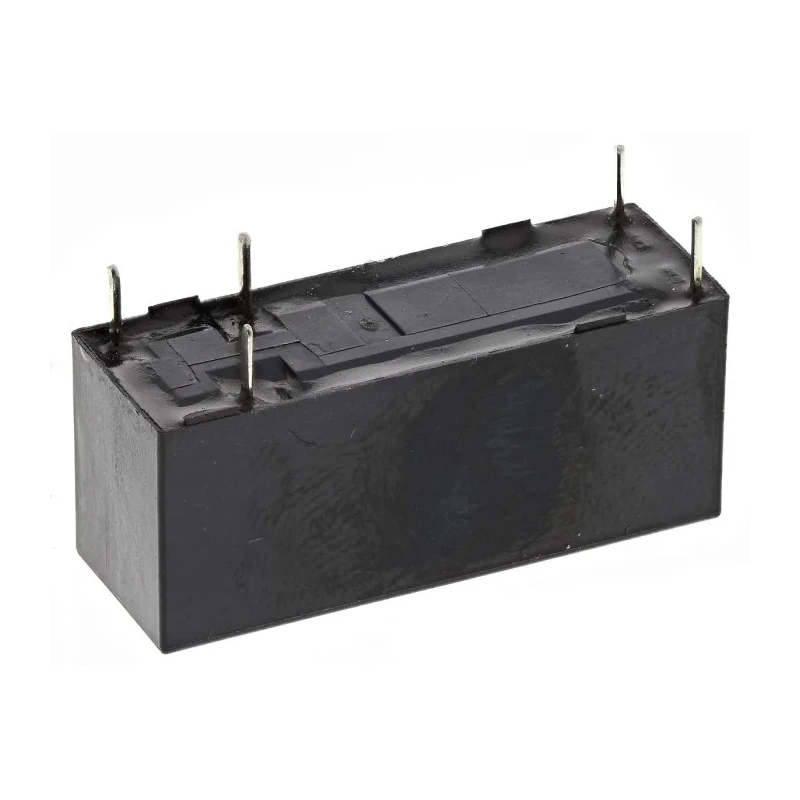

Omron Aratas PCB Power Relay 12V DC Coil 10A Switching Current SPDT G6RL-1 DC12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | G6RL-1 DC12 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Low Profile | 12.3mm max height |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 654Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 220mW |
| Low coil power consumption | 220mW (typical) |
Key Features
- The relay supports a coil voltage of 12V DC for efficient operation.
- It delivers a switching current capacity of 10 Amperes suitable for various electrical applications.
- The contact configuration is Single Pole Double Throw (SPDT), allowing versatile switching.
- Mounting is designed for PCB with solder terminal types for stable connection.
- This model belongs to the G6RL series, known for low coil power consumption.
- The relay has a switching DC voltage rating up to 300V and AC voltage rating up to 400V.
- Operating temperature ranges from -40°C minimum to 85°C maximum ensuring durability.

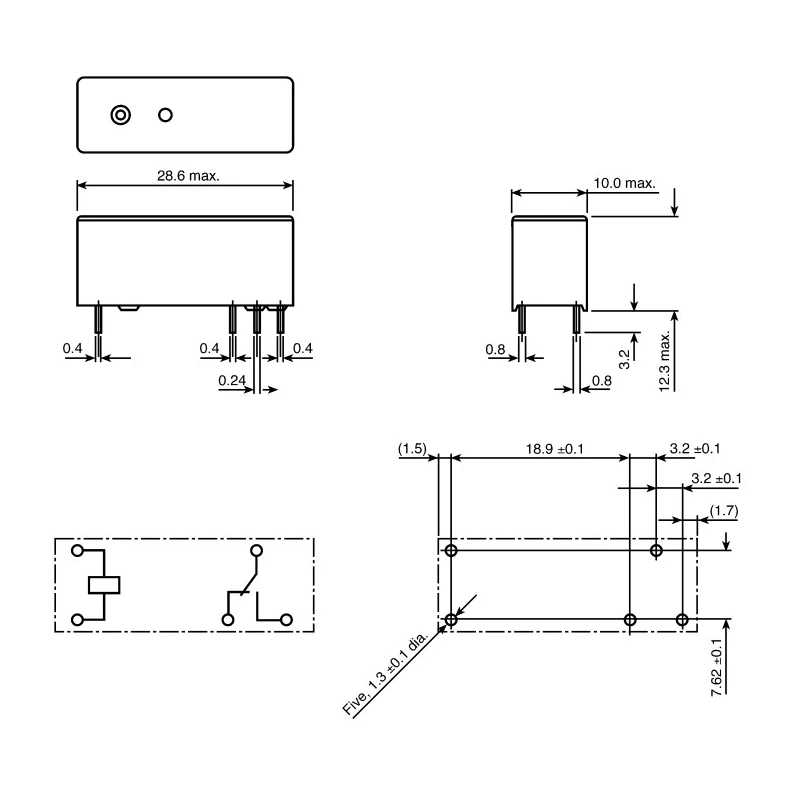

- Compact dimensions with length 28.5mm, width 10mm, and height 12.3mm allow low-profile PCB designs.
Product Description
Omron G6RL-1 DC12 PCB Power Relay is a high-quality industrial-grade power relay equipped with a 12V DC coil voltage and a switching current rating of 10A in a Single Pole Double Throw (SPDT) contact configuration. This relay is specifically designed for PCB mounting and uses solder-type terminals for secure installation. Typical applications include automation systems, signal conditioning equipment, and industrial control circuits where reliable high-voltage switching is required.
The G6RL series is well-regarded for its low profile design with a maximum height of 12.3mm, enabling space savings on densely populated PCB layouts. The relay supports both switching DC voltage up to 300V and AC voltage up to 400V, suitable for a broad range of electrical and electronic applications.
Operating temperature ranges from -40°C to 85°C, making it suitable for harsh industrial environments. The contact material consists of a silver alloy that ensures low contact resistance of 100mΩ, thereby guaranteeing a stable and long-lasting electrical connection. Coil resistance is 654Ω, with a coil power consumption of approximately 220mW, contributing to energy efficiency in control systems.
This relay has been designed to meet RoHS compliance standards, signifying adherence to environmental and safety regulations. The compact dimensions (28.5mm length, 10mm width, and 12.3mm height) and solder terminal type make it ideal for seamless integration in automated manufacturing, HVAC systems, instrumentation, and other industrial electrical installations.
The relay is available in SPDT contact configuration for flexible switching solutions. Low coil power consumption supports energy saving designs. Durable silver alloy contact material ensures consistent conductivity. Wide operating temperature range enables performance in diverse environments.
PCB mounting with solder terminals guarantees secure electrical connections.
This product is an essential component for industrial automation, electrical control panels, and other applications demanding high reliability and efficiency. Explore more high-quality Power Relays and related components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC, which is essential for its operation.
It can handle a maximum switching current of 10A, making it suitable for various electrical applications.
The relay supports a switching DC voltage rating of up to 300V and an AC voltage rating of up to 400V.
The contact configuration of the Omron G6RL-1 DC12 relay is Single Pole Double Throw (SPDT), allowing versatile switching options.
This model has compact dimensions of 28.5mm in length, 10mm in width, and 12.3mm in height.
The relay operates within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
It uses solder-type terminals for secure PCB mounting and stable electrical connections.
The contact material consists of a silver alloy, which ensures low contact resistance of 100mΩ.
The coil resistance is 654Ω, contributing to its efficient operation.
The coil power consumption is approximately 220mW, supporting energy-efficient designs.
Yes, the Omron G6RL-1 DC12 relay is RoHS compliant, adhering to environmental and safety regulations.
This relay is suitable for applications in automation systems, signal conditioning equipment, and industrial control circuits.
