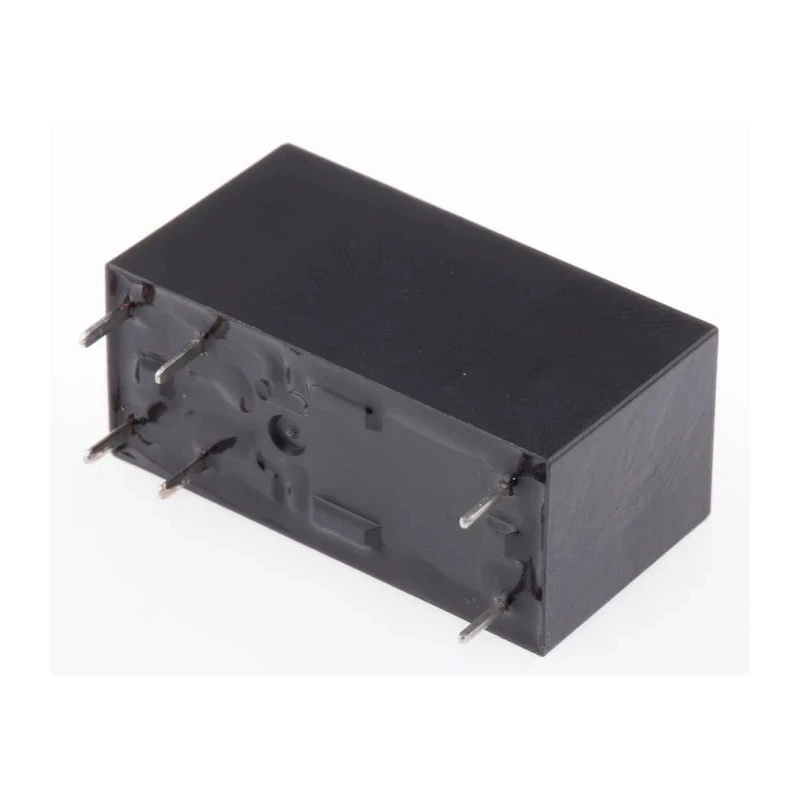

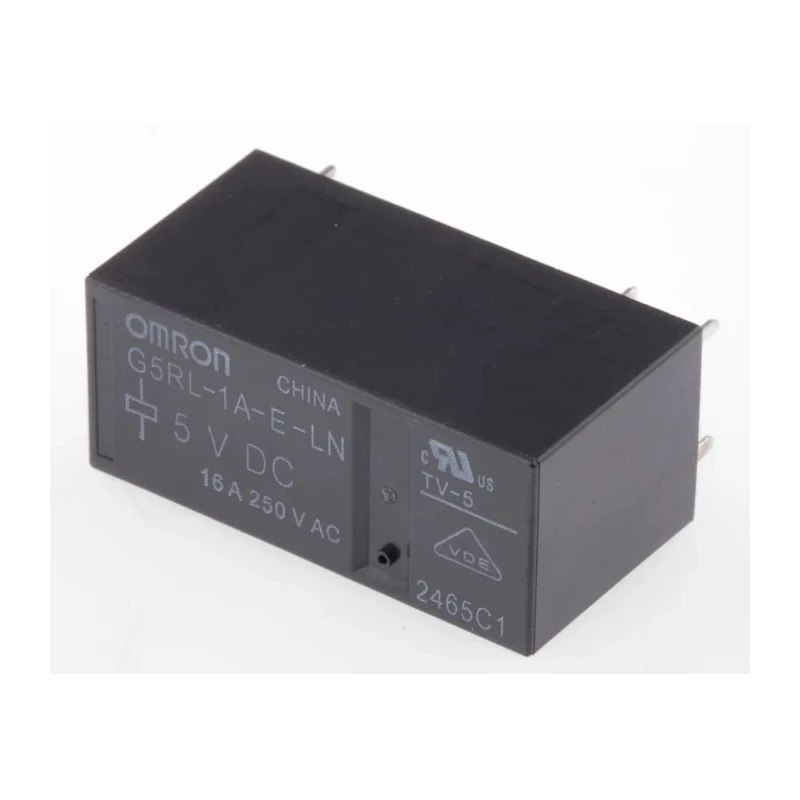

Omron PCB Power Relay 5V DC Coil 16A Switching Current SPST G5RL-1A-E-LN DC5

Omron G5RL-1A-E-LN DC5 PCB Power Relay is an industrial-grade power relay designed for precise and reliable PCB switching applications. Featuring a 5V DC coil and supporting a high switching current of 16A, this relay provides SPST (Single Pole Single Throw) contact configuration ideal for controlling various electrical loads. It supports switching voltages up to 24V AC and DC with a maximum switching power of 4kVA.

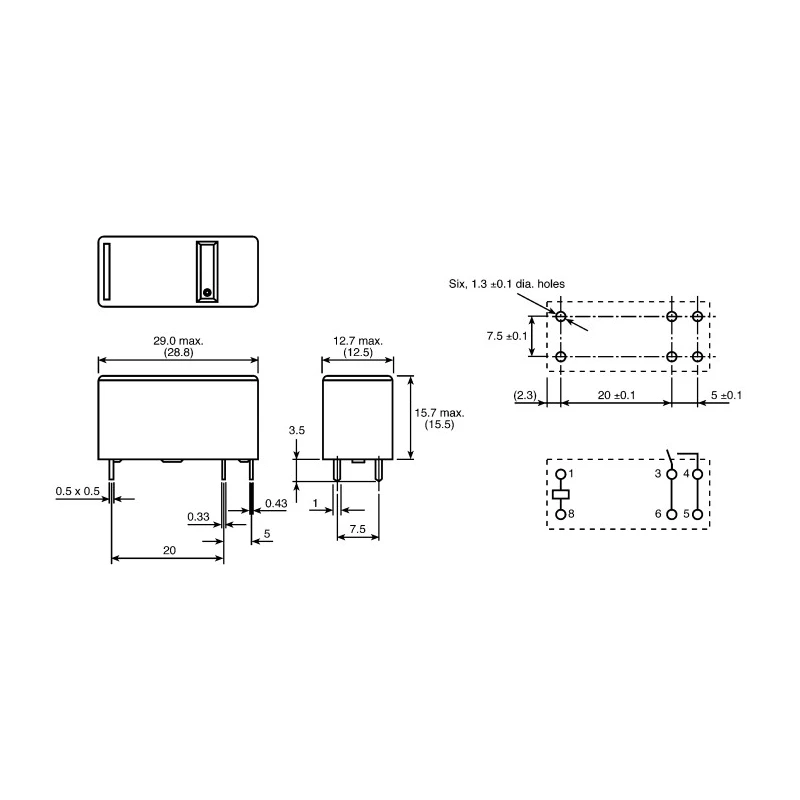

The relay's low profile height of 15.7mm combined with its compact length of 29mm and width of 12.7mm allows integration into space-constrained designs. Its silver alloy contact material ensures high conductivity and longevity, while the contact resistance is maintained at a low 100mΩ to guarantee efficient current flow with minimal losses.

Engineered to operate in harsh environments, the relay withstands temperatures ranging from -40°C up to 85°C, making it suitable for industrial, automation, and laboratory uses. The coil resistance of 47.2Ω and low coil power consumption of 530mW enhance energy efficiency. Additionally, the product offers flux proof construction with an 8mm creepage distance between coil and contacts, ensuring electrical isolation and safety.

This relay series includes variants featuring low noise operation releasing minimal audible disturbance at 44dB and high inrush capacity handling surge currents up to 100A, making it versatile for various industrial requirements.

Compliant with RoHS environmental directives, the Omron PCB Power Relay supports sustainable manufacturing and is produced in China under strict quality controls. Ideal for applications in industrial automation, manufacturing equipment, telecommunications, and control systems.

Designed for PCB mounting with solder terminals, ensuring secure electrical connections. Operates reliably over a wide temperature range from -40°C to 85°C. Low profile design with a max height of 15.7mm allows compact applications.

Silver alloy contact material offers high conductivity and durability. Coil resistance of 47.2Ω and coil power rating of 530mW optimize power consumption. Switching capacity up to 24V for both AC and DC loads, handling up to 4kVA switching power.

Low contact resistance of 100mΩ ensures efficient switching performance. Constructed with flux proof design and 8mm creepage for enhanced electrical safety. Complies with RoHS standards, suitable for environmentally conscious manufacturing.
