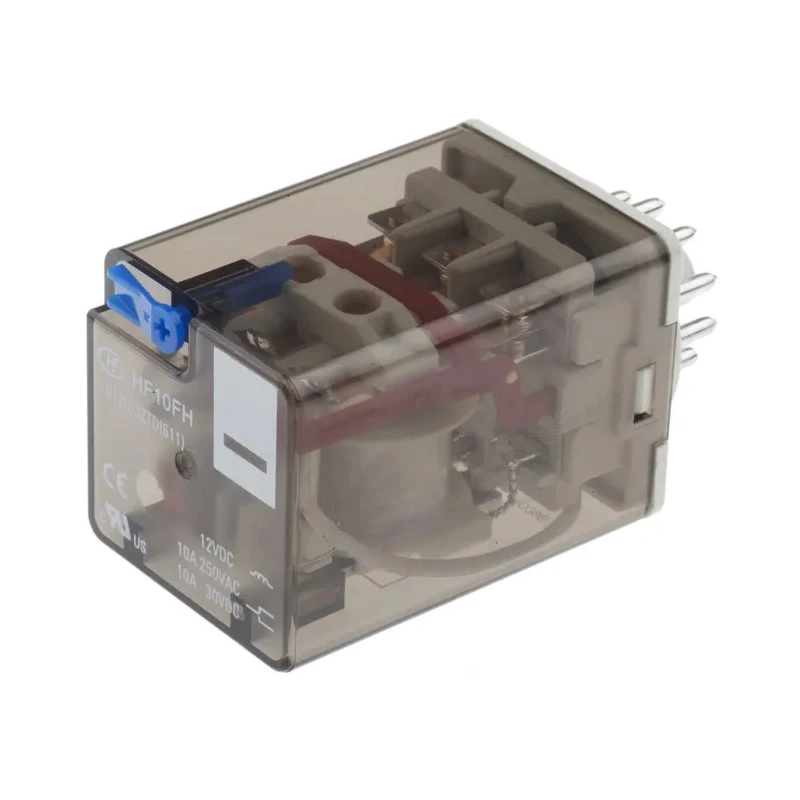

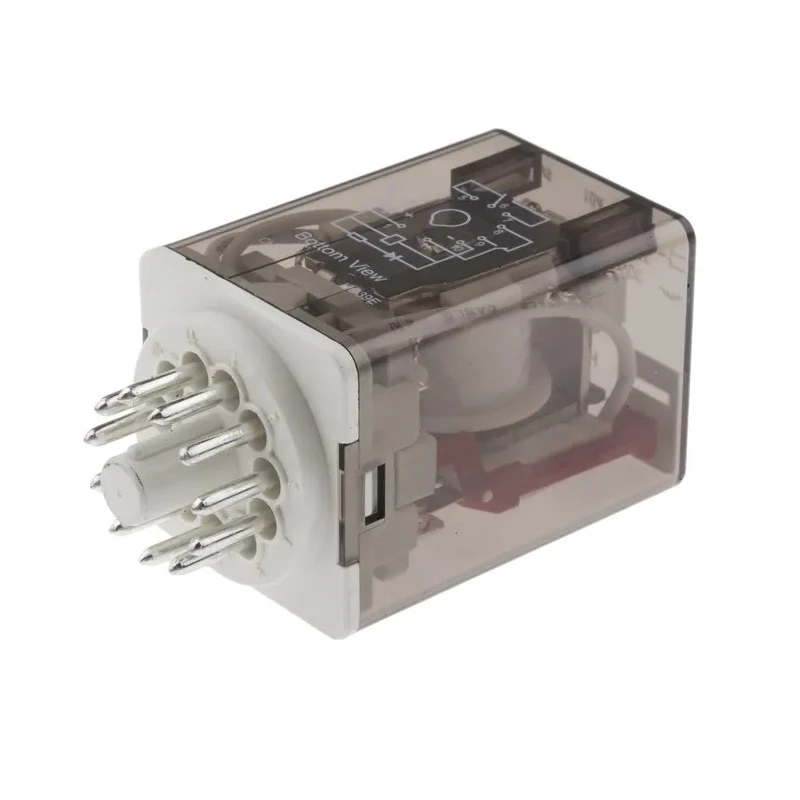

Hongfa Europe GMBH Power Relay 12V DC Coil 10A Switching Current 3PDT HF10FH012D3ZDT
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 55.3mm |
| Length | 35.5mm |
| Model | HF10FH012D3ZDT |
| Width | 35.5mm |
| Contact Material | Silver Alloy |
| Series | HF10FH |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CE, cULus |
| Coil Resistance | 95Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 1.5W |
| Switching Power | 300W |
Key Features
- Operates with a 12V DC coil voltage for standard control circuit integration.
- Designed with 3PDT contact configuration to provide versatile switching options.
- Supports a maximum switching current of 10 amperes suitable for moderate load applications.
- Switching power capacity of 300 watts enables handling of various electrical loads.
- Plug-in terminal type ensures easy installation and replacement on PCB or panel mounts.
- Operating temperature range from -40°C to 55°C for reliable performance in diverse environments.
- Constructed with silver alloy contact material for high conductivity and durability.
- Compact dimensions of 55.3mm height, 35.5mm width, and 35.5mm length to fit standard relay sockets.
Product Description
Hongfa Europe GMBH HF10FH012D3ZDT is a miniature high power relay designed for industrial automation, electrical control, and signal conditioning applications. Featuring a 12V DC coil voltage and a robust 10A switching current, this power relay offers reliable performance in switching AC and DC loads up to 250V AC and 30V DC respectively.
This relay supports a triple-pole double-throw (3PDT) contact configuration, making it suitable for complex circuit switching needs. Its plug-in terminal type allows easy integration into existing systems or replacement in PCB settings.
Operating efficiently with a coil resistance of 95 ohms and low coil power of 1.5W, it minimizes power consumption in control circuits. The contact material made from silver alloy ensures excellent conductivity and durability, with a low contact resistance of 100 milliohms providing reliable signal transmission.
Dimensions of 55.3 mm height, 35.5 mm width, and 35.5 mm length make it compatible with industry standard relay sockets, and the relay can operate over a wide temperature range from -40°C to 55°C, enabling use in harsh industrial environments.
Certified according to CE and cULus standards, the HF10FH012D3ZDT relay meets global safety and quality requirements. It is ideally suited for applications in industrial machinery, HVAC control systems, manufacturing automation, power supply controls, and other demanding electrical systems.
Operates with a 12V DC coil voltage allowing easy control. Provides 3PDT contact configuration supporting versatile switching. Switching current rated at 10A for a wide range of electrical loads. Compact design fits industry standard sockets and panels.
Silver alloy contacts ensure durability and excellent conductivity. Certified to CE and cULus standards to guarantee safety and reliability.
This power relay from Hongfa Europe GMBH is a reliable component choice for electrical engineers and system integrators seeking a durable relay with high switching capacity and industrial certifications. Explore more products in the Power Relay category to find compatible components for your automation projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 10 amperes, suitable for moderate load applications.
This power relay operates with a coil voltage of 12V DC, allowing for standard control circuit integration.
The relay has compact dimensions of 55.3 mm in height, 35.5 mm in width, and 35.5 mm in length, making it compatible with standard relay sockets.
It features a 3PDT (triple-pole double-throw) contact configuration, providing versatile switching options.
The relay can operate within a temperature range from -40°C to 55°C, suitable for diverse environments.
It has a plug-in terminal type, which facilitates easy installation and replacement on PCB or panel mounts.
The contacts are made from silver alloy, ensuring high conductivity and durability.
It supports a maximum switching power capacity of 300 watts, allowing it to handle various electrical loads.
The HF10FH012D3ZDT is certified according to CE and cULus standards, meeting global safety and quality requirements.
The coil resistance is 95 ohms, which contributes to its low coil power consumption of 1.5 watts.
This relay can switch AC loads up to 250V and DC loads up to 30V, making it versatile for different applications.
It is ideally suited for applications in industrial machinery, HVAC control systems, manufacturing automation, and power supply controls.
