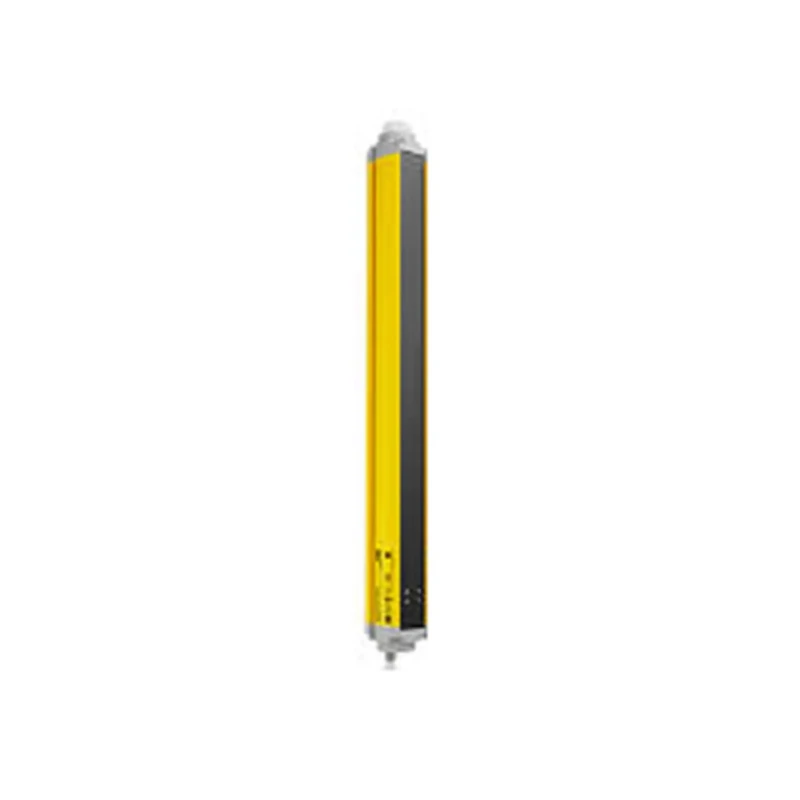

ABB Light Curtain Safety Sensor 4 Beams, Protective Height 1200mm 2TLA022307R0300 Orion3-4-K2C-120-E

ABB 2TLA022307R0300 Orion3-4-K2C-120-E Light Curtain is a safety sensor designed for industrial automation and safety applications. It comprises an integrated active unit that houses both the transmitter and receiver, with a passive reflector unit reducing cabling complexity and installation time. This 4-beam light curtain provides a protective height of 1200mm, maximum protective width of 65mm, and an operational scanning distance up to 8 meters. It features a rapid response time of 12 milliseconds, ensuring timely detection of objects within the safeguarded space.

The unit includes a local reset button option, eliminating the need for additional control wiring between the reset point and the electrical cabinet. It supports external device monitoring (EDM) functions inherently, which means individual light grids can supervise actuator status without extra modules. Alignment is made simpler through visual alignment indications displayed on the unit and rotation brackets, reducing downtime and preventing unwanted stops.

The robust profile of the curtain is well-suited for perimeter and access guarding in industrial, manufacturing, and automation environments where safety is critical. It complies with high safety standards, including EN ISO 13849-1:2008 PL e Category 4 and IEC 61508 SIL3, making it applicable for safety-critical systems.

The extended model version supports muting sensor connection directly, optimizing integration without the need for remote muting modules. Connectivity utilizes M12 8-pin connectors for efficient and secure electrical connections.

The Orion3 design significantly reduces cabling requirements by combining transmitter and receiver in one unit. Local reset support streamlines control interventions for faster production recovery. Comprehensive error feedback reduces troubleshooting time and maintenance costs.

Alignment aids and rotation brackets facilitate precise installation and adjustment. Muting sensor connectivity on extended models enhances operational flexibility. Applications include body detection, perimeter safety guarding, machine safety systems, and environments requiring robust safety sensors with minimal wiring complexity.

This ABB light curtain model is manufactured in Italy, ensuring quality and compliance with rigorous safety certifications such as CE, TUV, and cULus. Optimize your safety systems with the ABB Orion3 light curtain, combining reliability, compact design, and regulatory compliance for effective industrial safety solutions.
