Bourdon 40 mm 1/8 in G Threaded Pressure Gauge 6 bar MAT1-D10.B20

Free Delivery in India | Lowest Global Shipping Charges

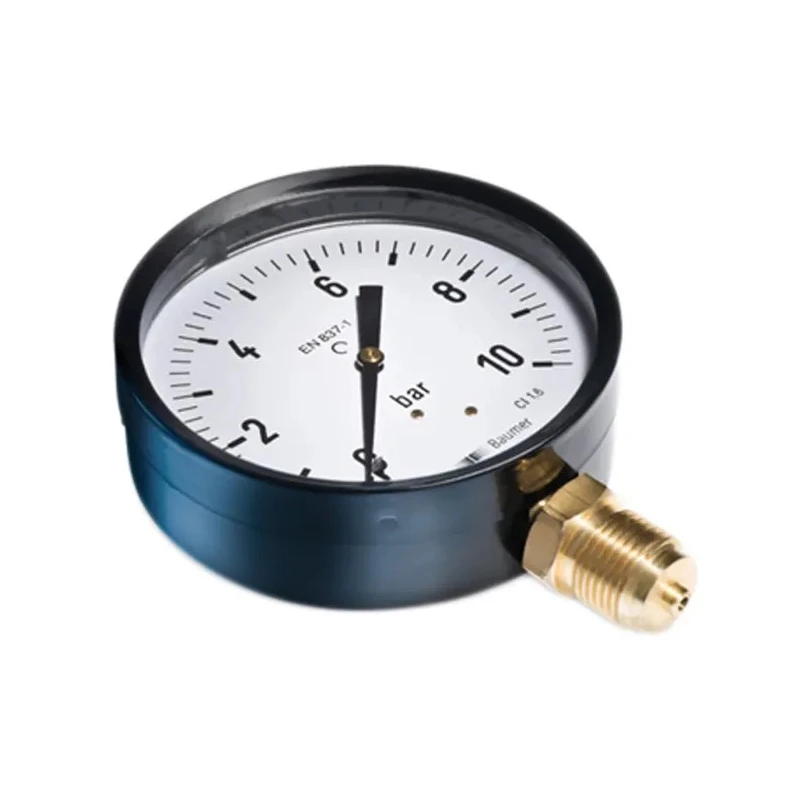

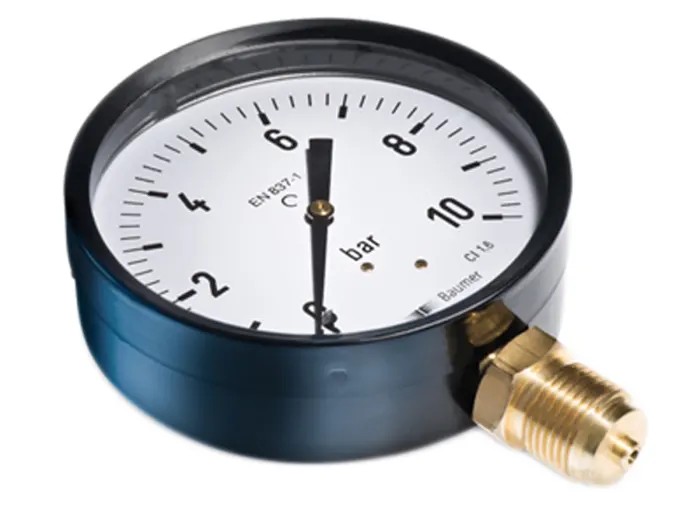

Bourdon 40 mm 1/8 in G Threaded Pressure Gauge 6 bar MAT1-D10.B20

Name: Bourdon 40 mm 1/8 in G Threaded Pressure Gauge 6 bar MAT1-D10.B20
Brand: Bourdon
SKU: 205818
Price: 13.96 USD
Availability: InStock



Category Pressure Gauges Brand Bourdon Condition New

Specifications

Country of Origin	China
Accuracy	±2.5 %
Brand	Bourdon
Model	MAT1-D10.B20
Connection Type	Threaded
Case Material	Black Painted Steel
Maximum Operating Temperature	70°C
Dial Size	40mm
Connection Size	1/8 in G
PRESSURE CONNECTION	Brass
Standards/Approvals	EN 837-1, PED 97/23/CE
Maximum Pressure Measurement	6bar
Minimum Pressure Measurement	0bar
Connection Location	Bottom Entry
Dial Colour	White

Key Features

Black painted steel case with a white dial for clear visibility.
Accurate pressure measurement with ±2.5% accuracy.
Brass 1/8 in G threaded bottom entry connection.
Maximum operating temperature up to 70°C.
Conforms to EN 837-1 and PED 97/23/CE standards.
Suitable for compressed gases, lubricating circuits, and water distribution.
White dial with knife edge black aluminium pointer for easy reading.
Durable cupreous metal Bourdon tube construction.

Product Description

Bourdon MAT1-D10.B20 40 mm 1/8 in G Threaded Pressure Gauge is a precision measuring instrument designed for industrial use. Featuring a black painted steel case and a white dial, this gauge provides clear and accurate pressure readings up to a maximum of 6 bar.

The pressure gauge includes a brass 1/8 in G threaded connection with bottom entry, ensuring reliable installation and operation in various fluid power and pneumatic systems. It operates safely at temperatures up to 70°C and meets rigorous European standards including EN 837-1 and PED 97/23/CE.

This gauge is ideal for use with compressed gases, lubricating circuits, hot or cold water networks, and general water distribution applications. The knife edge black aluminium pointer enhances readability against the white dial with a Kostil technopolymer face for durability.

Constructed with a cupreous metal Bourdon tube and featuring a welded tube connection assembly, the product offers robust performance and longevity in demanding industrial environments.

Its compact 40 mm dial size allows easy integration in control panels and monitoring stations where space is limited. The black painted steel case provides protection against mechanical damage and environmental factors.

Black painted steel case with durable finish. White dial with easy-to-read black graduations and knife edge pointer. Brass 1/8 in G threaded bottom entry connection for versatile mounting options. Accurate pressure measurement with ±2.5% accuracy class.

Maximum operating temperature rating of 70°C. Compliance with EN 837-1 and PED 97/23/CE standards for industrial safety and reliability. Suitable for pneumatic and hydraulic systems, water distribution, and compressed gas measurement.

Designed for use in industrial, mechanical, fluid power, and laboratory applications.

This Bourdon pressure gauge combines precision engineering with reliable materials to ensure safe and efficient pressure monitoring across a range of industrial sectors. Explore other Pressure Gauges and industrial measuring instruments on EnvMart for comprehensive equipment solutions.
