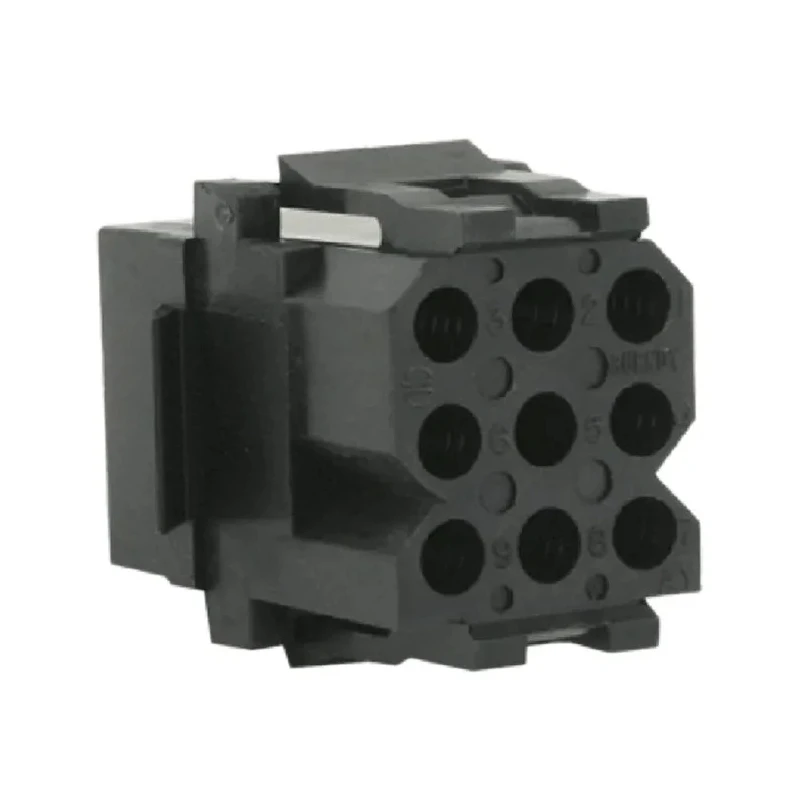

Souriau Sunbank by Eaton SMS Female Connector Housing 5.08 mm Pitch 9 Way 3 Row Straight SMS9R1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Length | 16.2mm |
| Model | SMS9R1 |
| Width | 25mm |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | SMS |
| Number of Rows | 3 |
| Pitch | 5.08mm |
| For Use With | Quick Mating PCB Connector |
| Number of Contacts | 9 |
| Connector Gender | Female |
Key Features
- This connector housing enables quick mating with PCB connectors, ensuring efficient assembly.
- Features a compact polyamide construction providing durability and insulation.
- Designed with 9 contacts arranged in 3 rows at a 5.08 mm pitch spacing.
- The straight orientation and panel mount type facilitate straightforward installation.
- Includes positive retention latches and polarization keys to prevent mismating.
- Contacts are sold separately, compatible with size 16 TRIM TRIO 1.6mm diameter snap-lock pin and socket contacts.
- Ideal for use in electronic component assemblies requiring reliable connector housing solutions.
Product Description
Souriau Sunbank by Eaton SMS9R1 female connector housing provides a reliable panel mount interface with a 5.08 mm pitch, configured with 9 contacts over 3 rows in a straight orientation. It is designed for quick mating PCB connector applications, facilitating easy and secure wire-to-board connections.
This housing from the SMS Series features a robust polyamide material ensuring good mechanical strength and electrical insulation for demanding industrial and electronic environments. The compact design allows snap and lock mounting in panel cut-outs without additional hardware, accelerating installation processes.
Positive housing retention latches and polarization keys secure the connector and prevent incorrect mating, improving system reliability. The contacts used with this housing are size 16 TRIM TRIO 1.6 mm diameter snap-lock pins and sockets, sold separately to accommodate various wiring needs.
Typical applications include industrial electronics, instrumentation, automation equipment, and other electronic component assemblies where durable and precise connector housings are required. The straight orientation and panel mount design optimize connection efficiency and space utilization.
This connector housing enables quick mating with PCB connectors, ensuring efficient assembly. Features a compact polyamide construction providing durability and insulation. Designed with 9 contacts arranged in 3 rows at a 5.08 mm pitch spacing.
The straight orientation and panel mount type facilitate straightforward installation. Includes positive retention latches and polarization keys to prevent mismating. Contacts are sold separately, compatible with size 16 TRIM TRIO 1.6mm diameter snap-lock pin and socket contacts.
Ideal for use in electronic component assemblies requiring reliable connector housing solutions. Explore the comprehensive range of Connector Housings and electronic components at EnvMart for advanced industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector housing features a 5.08 mm pitch with 9 contacts arranged in 3 rows.
The housing is constructed from polyamide, providing good mechanical strength and electrical insulation.
This model is designed for panel mounting, allowing for straightforward installation in panel cut-outs without additional hardware.
The connector housing has a straight orientation, which facilitates efficient connections in electronic assemblies.
It is ideal for use in industrial electronics, instrumentation, automation equipment, and other electronic component assemblies.
The housing has a length of 16.2 mm and a width of 25 mm.
It includes positive retention latches and polarization keys to prevent mismating and enhance connection reliability.
The housing is compatible with size 16 TRIM TRIO 1.6 mm diameter snap-lock pin and socket contacts, which are sold separately.
This model accommodates 9 contacts.
Yes, it is designed for quick mating with PCB connectors, facilitating easy and secure wire-to-board connections.
This connector housing belongs to the SMS Series.
The country of origin for this connector housing is India.
