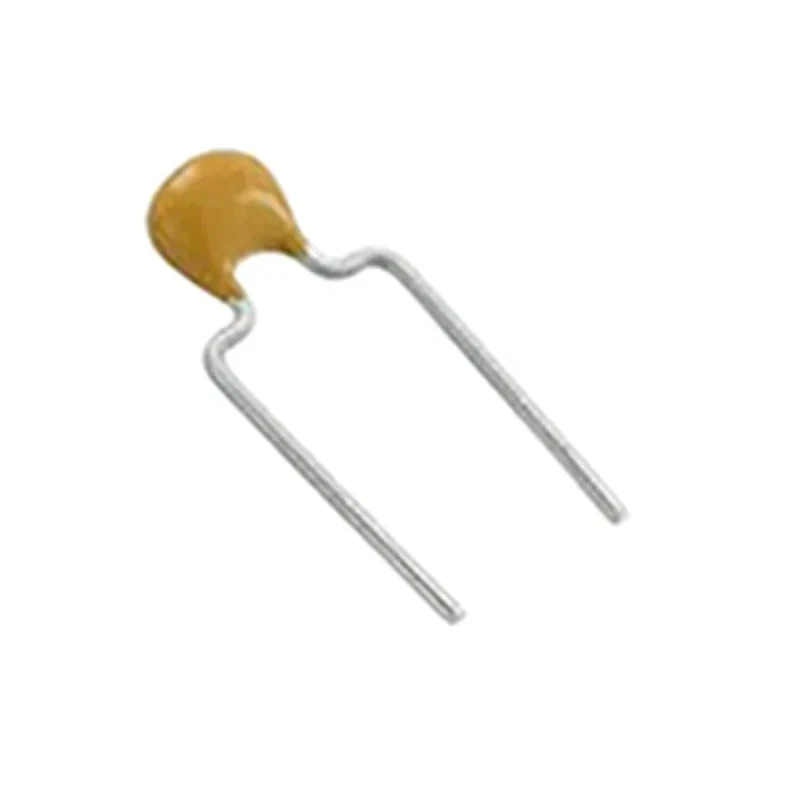

KEMET 10 nF Multilayer Ceramic Capacitor 630V DC ±5 % Through Hole Radial C330C103JBG5TA
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 630V dc |
| Brand | KEMET |
| Height | 9.14mm |
| Length | 7.62mm |
| Model | C330C103JBG5TA |
| Packaging | Tape & Reel |
| Width | 5.08mm |
| Mount Type | Through Hole |
| Series | Goldmax 300 |
| Termination Type | Radial |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 10nF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | REACH, RoHS, UL |
| Lead Diameter | 0.51mm |
| Dielectric | C0G |
| Suppression Class | Class I |
| Lead Spacing | 5.08mm |
Key Features
- Features C0G dielectric for stable capacitance over temperature and time.
- Through hole radial mount type ensures strong mechanical connections.
- Goldmax 300 series provides professional high-voltage performance.
- Maximum operating temperature rated at 125°C for reliable use in harsh environments.
- Termination type is radial with lead spacing of 5.08 mm and lead diameter of 0.51 mm.
- Conformally coated for enhanced protection against environmental stress.
- Typical applications include telecommunications, medical, military, and aerospace equipment.
- Country of origin is Mexico, complying with REACH, RoHS, and UL standards.
Product Description
KEMET C330C103JBG5TA is a 10 nF multilayer ceramic capacitor designed for high-voltage applications up to 630V DC with a tolerance of ±5 %.
This capacitor belongs to the Goldmax 300 series, known for its professional range of high-voltage multilayer ceramic capacitors that exhibit low ESR at high frequencies. It is mounted through hole with radial lead termination, providing stability and durability in demanding environments.
The capacitor uses C0G (NP0) dielectric material, which is known for stable and predictable characteristics across temperature and time, making it ideal for filtering, sample and hold, and timing circuits where high Q and excellent stability are required. It is conformally coated and classified as Class I suppression device.
Key physical dimensions include a height of 9.14 mm, length of 7.62 mm, width of 5.08 mm, lead spacing of 5.08 mm, and lead diameter of 0.51 mm. Rated for operation between -55°C to 125°C, it meets REACH, RoHS, and UL standards ensuring compliance with industry environmental and safety regulations.
These capacitors are typically employed in telecommunications, medical instrumentation, military hardware, and aerospace equipment requiring reliable filtering and snubbing functions.
Stable capacitance with C0G dielectric for precision applications. Radial through-hole mounting for secure PCB attachment. High temperature operating range suitable for industrial environments. Conformally coated to resist moisture and dust ingress.
Compliant with major international standards: REACH, RoHS, UL. Professional grade Goldmax 300 series performance. Dimensions supportive of compact design implementations. Origin: Mexico. Explore the extensive range of Multilayer Ceramic Capacitors on EnvMart for reliable electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitor has a capacitance value of 10 nF.
It is rated for a maximum voltage of 630V DC.
This model uses C0G (NP0) dielectric material, which provides stable capacitance characteristics over time and temperature.
The dimensions are as follows: height of 9.14 mm, length of 7.62 mm, width of 5.08 mm, with a lead spacing of 5.08 mm and lead diameter of 0.51 mm.
The operating temperature range is from -55°C to 125°C.
It is designed for through hole mounting with radial lead termination.
This capacitor belongs to the Goldmax 300 series, which is known for high-voltage performance.
It complies with REACH, RoHS, and UL standards.
It is packaged in Tape & Reel format.
Typical applications include telecommunications, medical instrumentation, military hardware, and aerospace equipment.
The capacitor has a tolerance of ±5 %.
It is classified as a Class I suppression device.
