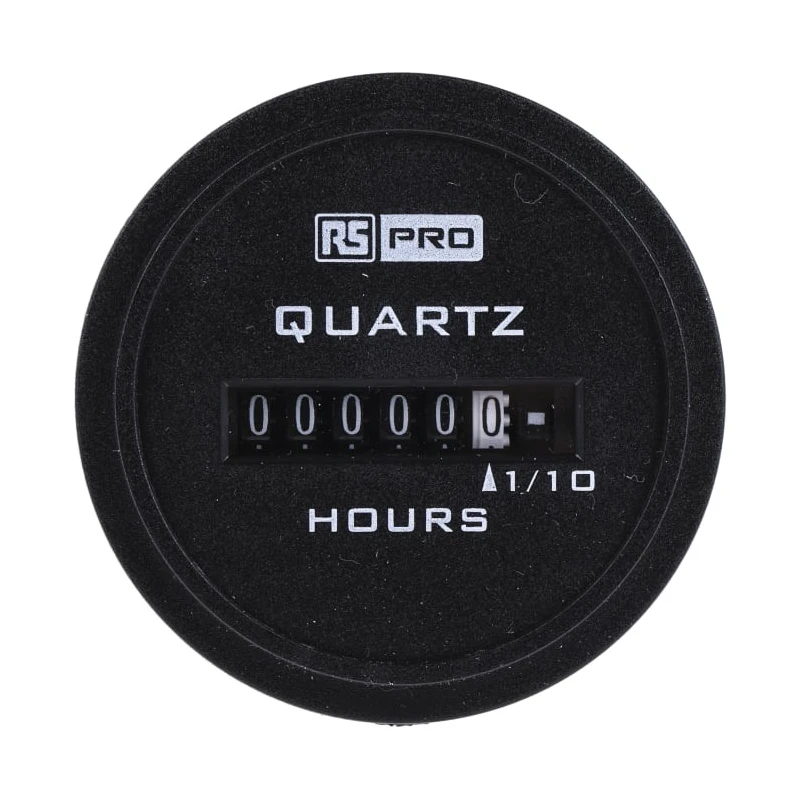

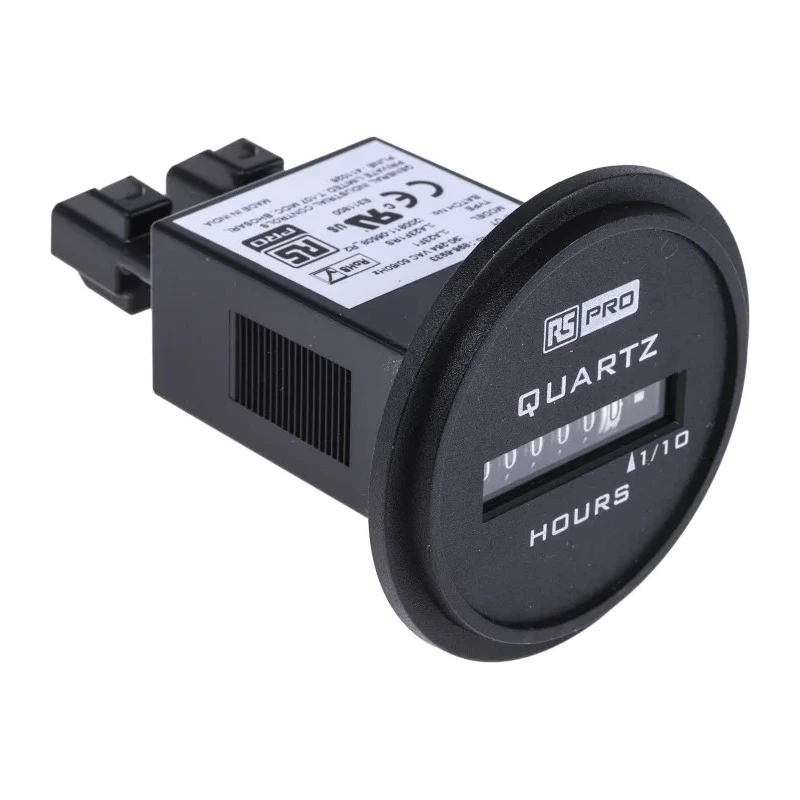

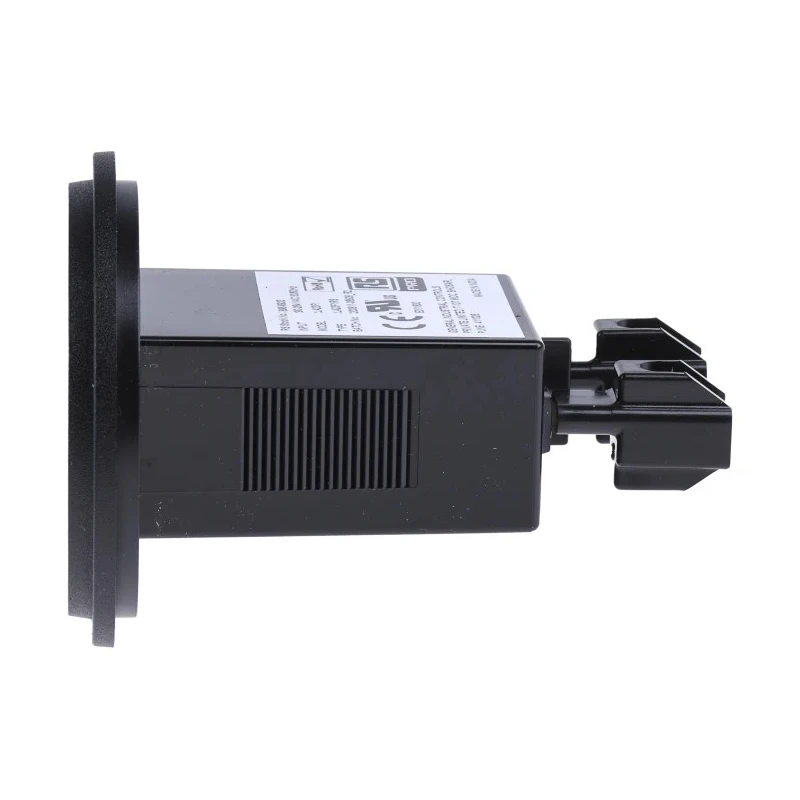

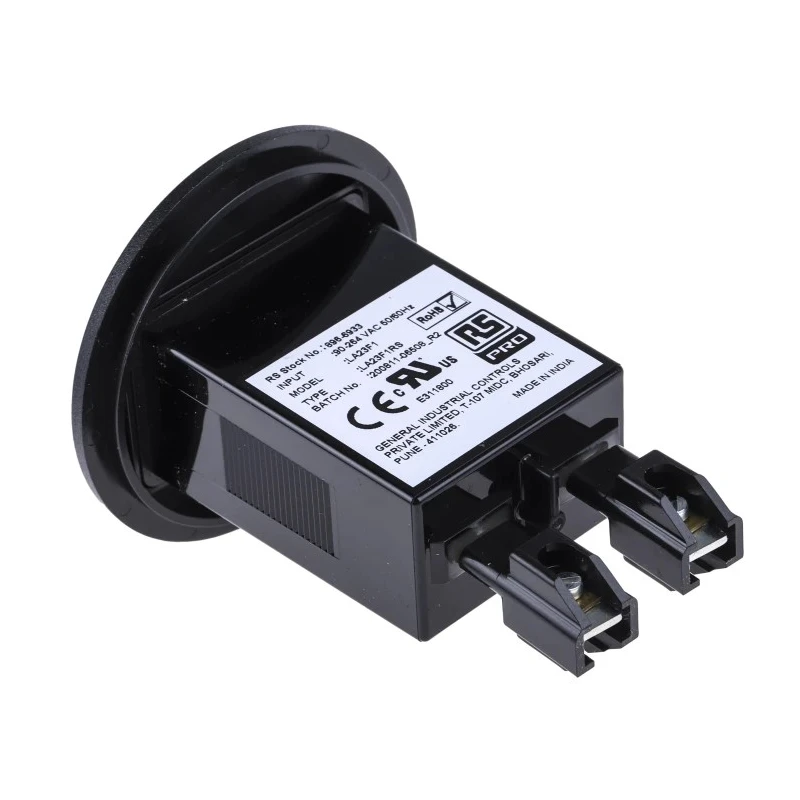

RS PRO 6 Digit Analogue Hour Meter Panel Mount 264V AC with 3.6mm Digit Height 896-6933

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 6 Digit Analogue Hour Meter Panel Mount 264V AC with 3.6mm Digit Height 896-6933

Name: RS PRO 6 Digit Analogue Hour Meter Panel Mount 264V AC with 3.6mm Digit Height 896-6933
Brand: RS PRO
SKU: 135874
Price: 30.67 USD
Availability: InStock



Category Panel Meters Brand RS PRO Condition New

Specifications

Country of Origin	India
Display Type	Analogue
Brand	RS PRO
Function	Hour Meter
Model	896-6933
Connection Type	Spade Terminal
Depth	70.5mm
Mount Type	Panel Mount
Maximum Operating Temperature	-40°C
Number Of Digits	6
Digit height	3.6mm
Standards/Approvals	SAE, NEMA 4X, cRUus, CE, RoHS
Cutout Height	24.1mm
Cutout Width	50.5mm
Count Direction	Up
Maximum Supply Voltage	264V ac
Reset Method	No Reset
RS PRO Hour Meter, 6 Digit Analogue 80V dcBrand	RS PRO

Key Features

The hour meter features a 6-digit analogue display with 3.6mm digit height for precise readings.
It operates with a count direction upwards and counts hours up to 99999.9 with ±0.02% accuracy.
The device uses spade terminal connections and has no reset method, ensuring continuous time tracking.
Its panel mounting type and square shape allow integration in various control panels and machines.
The meter supports operation in temperatures from -40°C up to high temperatures, with durable build for heavy-duty use.
Ingress protection IP66 rating ensures resistance to dust and low-pressure water sprays.
The unit is compliant with international standards including CE, cRUus, SAE, NEMA 4X, and RoHS, guaranteeing quality and safety.
The meter depth is 70.5mm with cutout dimensions of 50.5mm width and 24.1mm height for secure fitting.

Product Description

RS PRO 896-6933 is a high-accuracy 6 Digit Analogue Hour Meter suitable for panel mounting in industrial and commercial environments. Operating at a maximum supply voltage of 264V AC, it is designed to count hours continuously with a high degree of precision thanks to its ±0.02% meter accuracy.

This hour meter features a clear analogue display with six digits, each digit measuring 3.6mm in height, enabling precise monitoring of machine running times up to 99999.9 hours. The count direction is upwards, making it ideal for accumulated time-tracking applications without reset capability.

Equipped with spade terminal connections, the RS PRO 896-6933 ensures easy installation and reliable electrical connection on industrial control panels. Its robust construction supports a operating temperature range down to -40°C, complemented by an IP66 ingress protection rating that safeguards against dust ingress and water sprays, suitable for harsh industrial environments.

The device complies with multiple international certifications, including CE, cRUus, SAE, NEMA 4X, and RoHS directives, assuring safety, quality, and environmental compliance. Its compact panel cutout dimensions of 50.5mm width and 24.1mm height and a depth of 70.5mm facilitate easy integration within existing control setups.

The hour meter features a 6-digit analogue display with 3.6mm digit height for precise readings. Operation with count direction upward and no reset method ensures continuous timing. Spade terminal connection type simplifies installation.

Panel mounting square shape design fits standard control panels. Wide operating temperature range from -40°C and IP66 rating ensure durability in industrial environments. International approvals include CE, cRUus, SAE, NEMA 4X, and RoHS.

This RS PRO hour meter is ideal for commercial and industrial applications such as manufacturing lines, dairy equipment, and machinery requiring accurate operational time logging. Its reliable construction and certifications make it suitable for critical process control and automation tasks.
