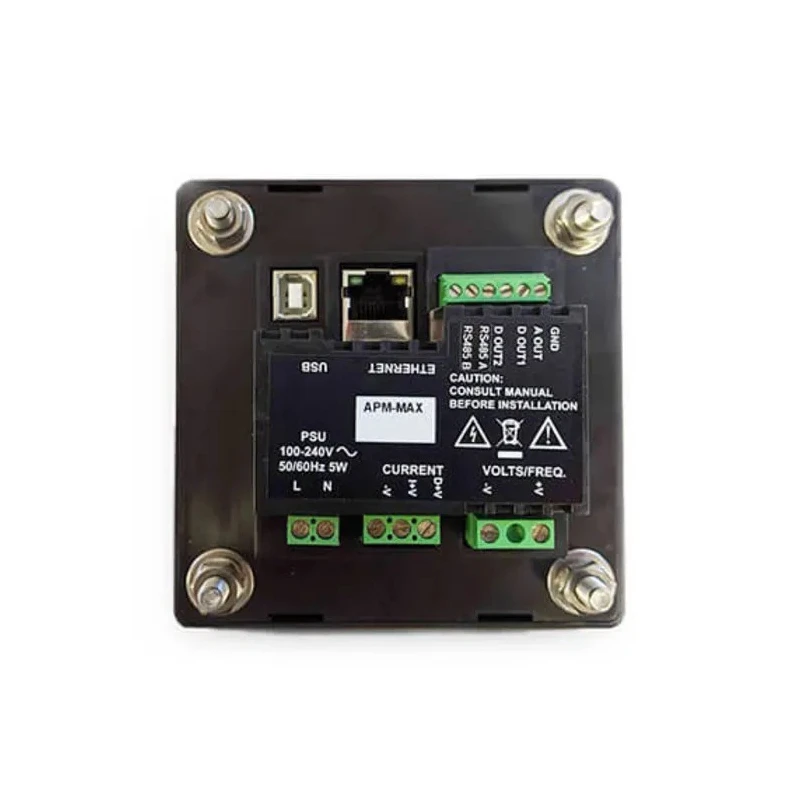

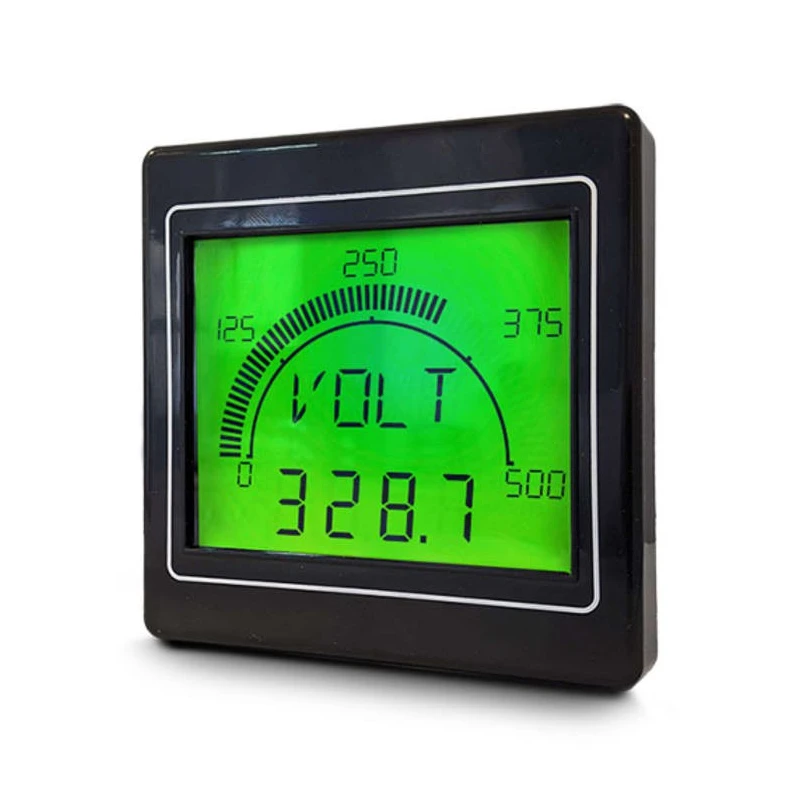

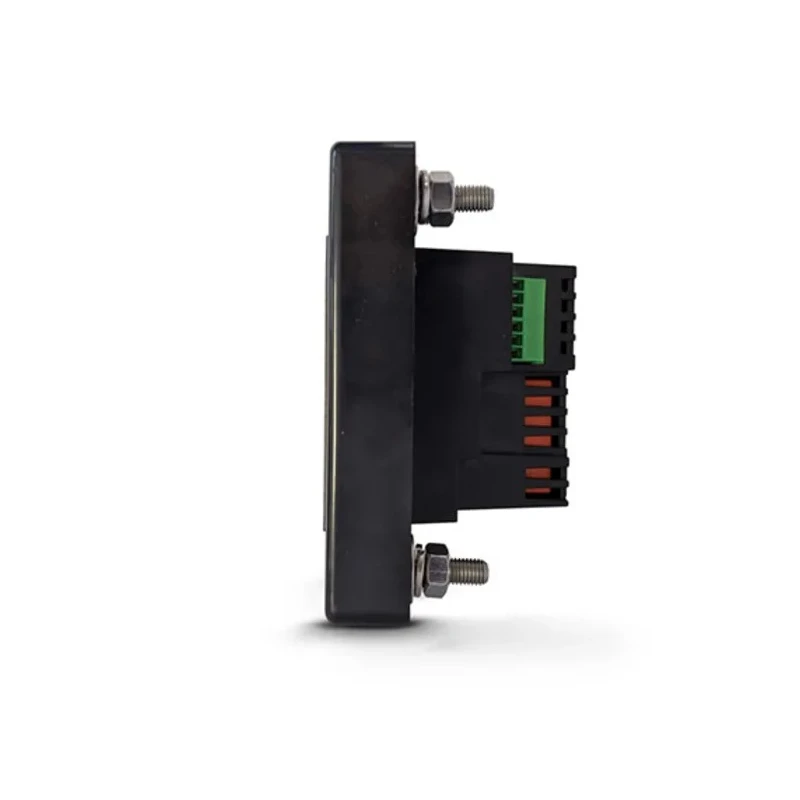

Trumeter Digital Panel Multifunction Meter APM-MAX-M23-PU-4R, LCD Display, Process or Shunt Meter, 68mm x 68mm
Specifications
| Country of Origin | Malaysia |
|---|---|
| Display Type | LCD |
| Display | screen |
| Brand | Trumeter |
| Model | APM-MAX-M23-PU-4R |
| Depth | 45mm |
| Series | APM-MAX |
| Maximum Operating Temperature | 60°C |
| Number Of Digits | 4 |
| Minimum Operating Temperature | -10°C |
| Digit height | 14.5mm |
| Standards/Approvals | CE, UL and cUL |
| Properties Measured | Process Meter or a Shunt Meter |
| Cutout Height | 68mm |
| Cutout Width | 68mm |
| 2 independent outputs | 2 digital (open collector), 1 analogue (4 - 20mA) |
Key Features

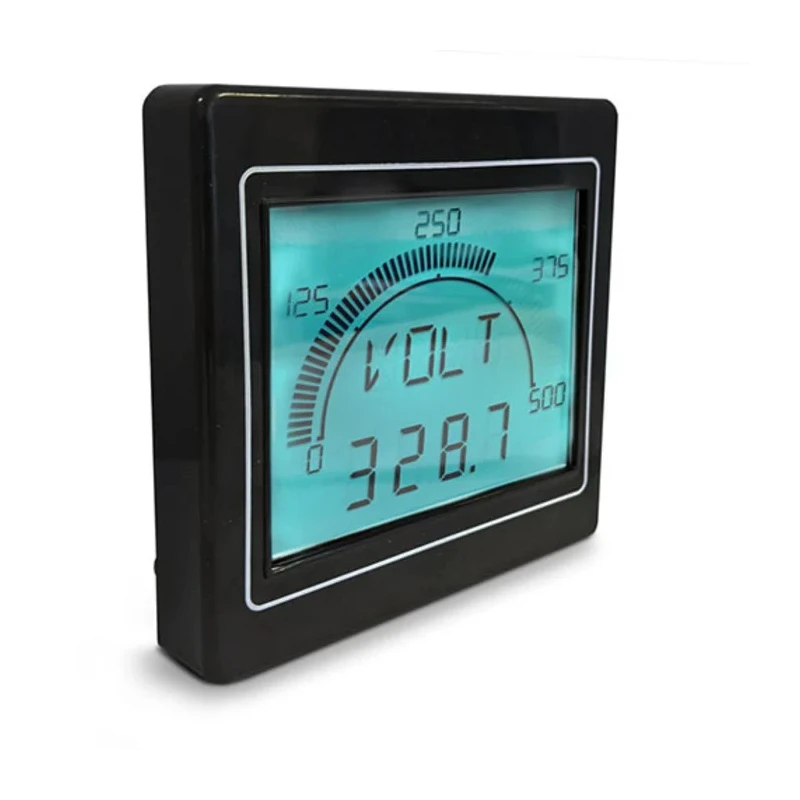

- The meter features a large 4-digit LCD with a 60-segment bar graph display for clear analog and digital readings.
- It offers programmable scaling and range including min and max values for precise measurement customization.
- The unit includes two independent alarm setpoints and multiple configurable outputs for advanced control applications.
- A full-color RGB dynamic backlight provides instant visual alerts and high visibility in bright environments.
- Communication is enabled via serial MODBUS RTU protocol for system integration.
- It is IP65 rated for protection against ingress and suitable for industrial environments.
- The meter supports remote monitoring with Trumeter Cloud when paired with the IoT Gateway device.
- The device complies with CE, UL, and cUL standards and is manufactured in Malaysia.
Product Description
Trumeter APM-MAX-M23-PU-4R is a high-performance digital panel multifunction meter engineered for use in process control and shunt meter applications. This meter features a 68 mm by 68 mm cutout with a high-contrast LCD that combines analog-style bar graph visualization and precise 4-digit digital readout for quick and reliable measurements.
The meter supports programmable scaling and range adjustments including minimum and maximum limits, offset, gain, and 20-point non-linearization scaling, enabling flexible configuration to suit various industrial processes. It includes two independent alarm setpoints and provides diverse outputs such as two digital open collector outputs and one analog 4 - 20 mA output, facilitating seamless integration into complex control systems.

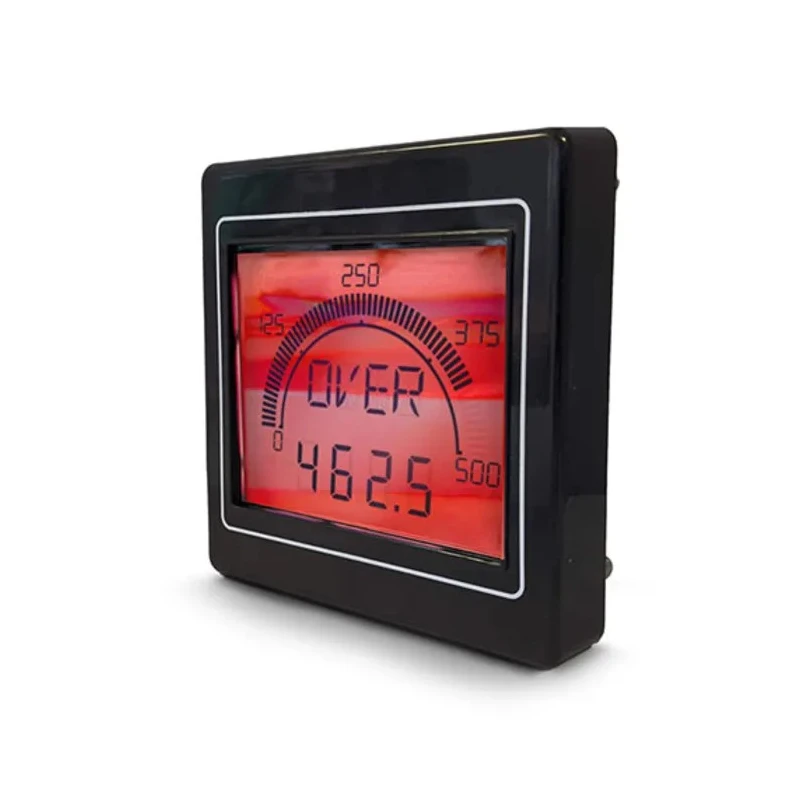

Its full-color RGB dynamic backlight enhances visibility and alerts operators promptly under different lighting conditions, while its IP65 enclosure rating ensures durability in harsh environments. Communication via Modbus RTU/TCP IP protocols enables remote monitoring and control, particularly when linked to Trumeter's IoT Gateway and Cloud platforms for comprehensive system oversight.
The meter measures process variables with 0.5% voltage accuracy and 0.1% frequency accuracy, supporting industrial, automation, manufacturing, and process control applications. Its robust construction and compliance with CE, UL, and cUL certifications attest to its quality and safety standards.
The meter features a large 4-digit LCD with a 60-segment bar graph display for analog and digital visualization. Programmable scaling options include min/max, offset, gain, and non-linearization for versatile measurement settings.
It supports two independent alarm setpoints and configurable digital and analog outputs for enhanced control. Full-color RGB backlight with adjustable intensity improves monitoring in bright or low-light environments. Communication protocols Modbus RTU/TCP IP enable integration with modern industrial automation systems.
IP65 rating provides protection against dust and water ingress, suitable for industrial environments. Trumeter Cloud monitoring is supported via optional IoT Gateway hardware.
Ideal for electrical, industrial automation, process control, manufacturing, and laboratory industrial applications requiring precise and configurable digital panel metering solutions.
Explore more in our Panel Meters category at EnvMart for quality industrial measuring instruments and solutions designed to meet professional standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features an LCD display with a 60-segment bar graph for clear analog and digital readings.
The cutout dimensions are 68 mm x 68 mm.
It operates within a temperature range of -10°C to 60°C.
The display has 4 digits.
It includes two digital open collector outputs and one analog output of 4 - 20 mA.
It supports Modbus RTU and TCP IP protocols for communication.
The meter has a voltage accuracy of 0.5% and a frequency accuracy of 0.1%.
Yes, it has an IP65 rating, providing protection against dust and water ingress, making it suitable for industrial environments.
The maximum operating temperature is 60°C.
It complies with CE, UL, and cUL standards.
It offers programmable scaling, including min/max values, offset, gain, and 20-point non-linearization scaling.
It is manufactured in Malaysia.
