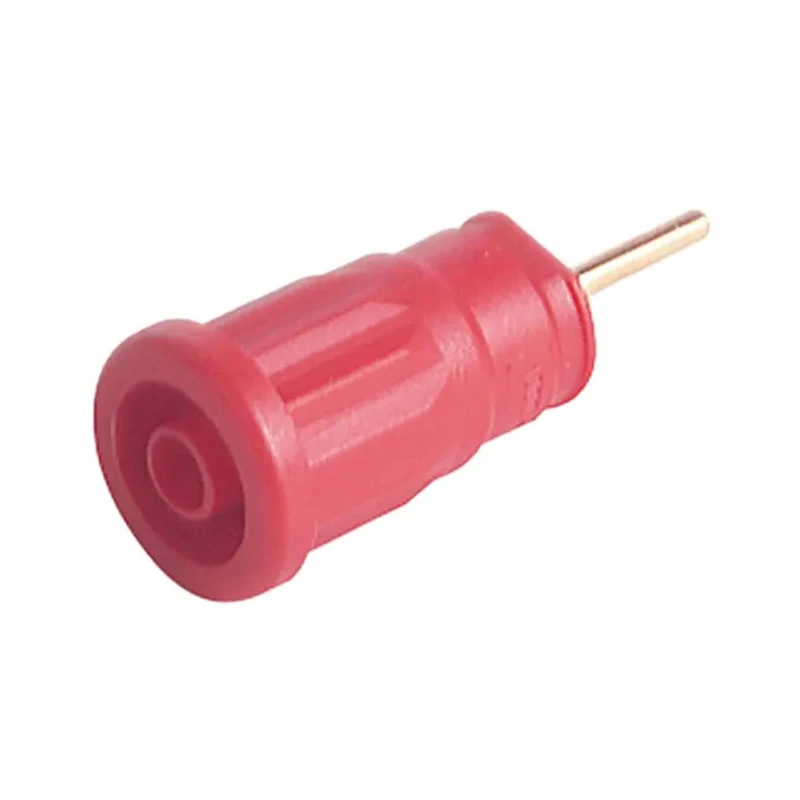

Hirschmann Test & Measurement Red Female Banana Socket 4 mm Connector Solder Termination 1000 V AC/DC 24A 972363101

Hirschmann Test & Measurement 972363101 Red Female Banana Socket is a high-performance 4 mm connector designed specifically for electrical test and measurement applications. It features a solder termination method, enabling reliable mounting on printed circuit boards or chassis. Rated for voltages up to 1000 V AC and DC and capable of carrying currents up to 24A, this banana socket is ideal for demanding industrial, laboratory, and electrical testing environments.

The connector body is constructed with a safety base compatible with Hirschmann CAT II 4mm safety systems and includes a 1.9 mm solder lug made of gold-plated brass for excellent contact quality and corrosion resistance. The contact-plated gold surface ensures minimal contact resistance and stable signal transmission. Encased in polyamide insulation, it ensures safety and durability under varied operating temperatures ranging from -40 to +80° C.

This banana socket complies with IEC 61010 and CEI 61010 standards, demonstrating its adherence to international safety and quality requirements for electrical measurement equipment. It is designed for easy front-face panel mounting with hole diameter of 12.2 mm and wall thickness accommodation between 1 and 10 mm, making installation straightforward in switch panels and equipment chassis.

Typical applications include electrical test equipment, industrial measurement devices, switch panel instrumentation, and laboratory testing apparatus. Its German manufacturing origin reflects strict quality control and durability for long-term performance in harsh electrical environments.

Connector features a 4 mm banana socket size for compatibility with standard test equipment. Constructed with gold-plated brass contact material ensuring reliable conductivity. Designed for solder termination to accommodate secure PCB mounting.

Voltage rated at 1000 volts for both AC and DC applications. Current capacity of 24 amperes suitable for high-demand electrical testing. Complies with IEC 61010 and CEI 61010 safety standards for measurement and test instruments.

Insulation made from durable polyamide material providing robust electrical isolation. Approved for use in professional testing, electrical measurement, and industrial applications. Compact length of 36 mm for easy panel installation with front face thickness from 1 to 10 mm.

Manufactured in Germany ensuring high quality and precision engineering. Explore more Electrical Test & Measurement connectors and accessories at EnvMart for comprehensive solutions to your testing needs.
