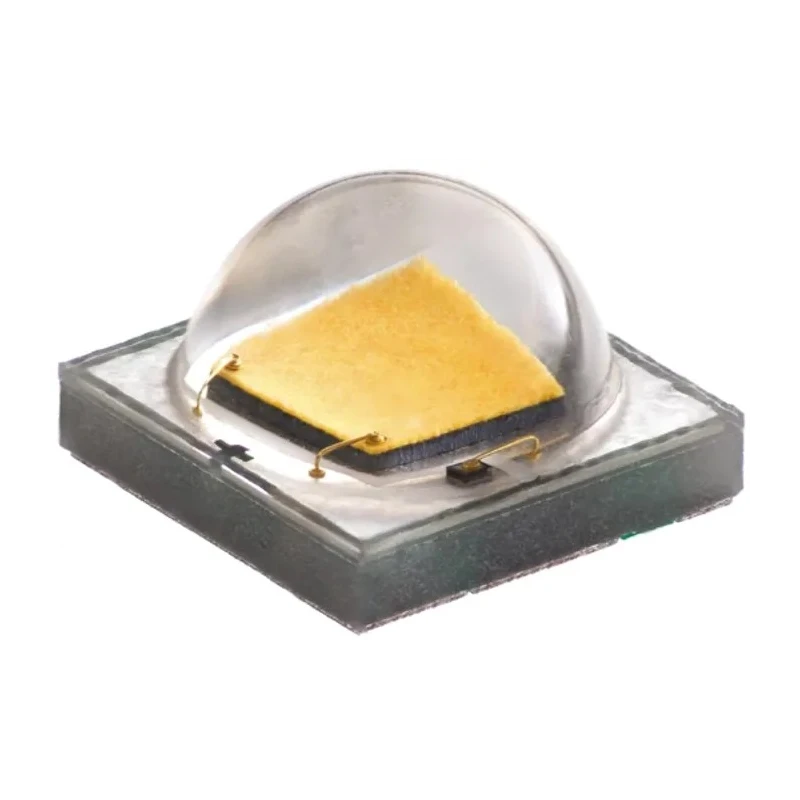

Cree LED 3.3 V White LED 3535 Surface XLamp XP-G2 XPGBWT-01-R250-00HE3
Specifications
| Country of Origin | China |
|---|---|
| Brand | Cree LED |
| Model | XPGBWT-01-R250-00HE3 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | XLamp XP-G2 |
| Number Of Leds | 1 |
| Maximum forward current | 1500mA |
| Viewing angle | 115 ° |
| Package Type | 3535 |
| Standards/Approvals | UL, RoHS |
| Colour Temperature | 5000k |
| LED Colour | White |
| Forward Voltage | 3.3V |
| Number of Pins | 2 |
| Lens Dimensions | 3.45 x 3.45 x 2.26 mm |
| Lens Shape | Square |
| LED Luminous Flux | 139 lm |
| Low thermal resistance | 4°C/W |
| Drive current | 1500mA (maximum) |
Key Features
- Operates at a forward voltage of 3.3 V with a maximum forward current of 1500mA.
- Features white LED color with a color temperature of 5000K providing bright, neutral light output.
- Packaged in a 3535 size surface mount device with tape and reel packaging for efficient production insertion.
- Offers a wide viewing angle of 115° and a luminous flux of 139 lumens for broad illumination.
- Utilizes Cree’s XLamp XP-G2 series technology with a low thermal resistance of 4°C/W for excellent heat dissipation.
- Lens is clear, square-shaped with dimensions of 3.45 x 3.45 x 2.26 mm, ensuring precise light direction.
- Complies with UL and RoHS standards for safety and environmental compliance.
- JEDEC J-STD-020C standard compliant for moisture and reflow sensitivity.
Product Description
Cree LED XPGBWT-01-R250-00HE3 is a high-performance white LED component operating at 3.3 V forward voltage from the renowned XLamp XP-G2 series. Designed using Cree’s advanced silicon carbide SC³ technology platform, this LED delivers up to 20% enhanced lumen output compared to previous generations, making it ideal for demanding lighting applications requiring high efficacy and brightness.
This single LED, housed in a compact 3535 surface mount package, features a clear square lens with dimensions of 3.45 x 3.45 x 2.26 mm and provides a wide 115° viewing angle. Its luminous flux rating of 139 lumens ensures broad and efficient illumination. The device is rated for a maximum forward current of 1500mA and has a low thermal resistance of 4°C/W, enabling effective thermal management in lighting fixtures.
The LED is supplied in tape and reel packaging to support automated manufacturing processes and improve production efficiency. It meets UL and RoHS standards, ensuring compliance with safety and environmental regulations, and conforms to JEDEC's J-STD-020C moisture/reflow sensitivity guidelines, making it suitable for robust industrial use.
Applications for the XPGBWT-01-R250-00HE3 LED include LED light bulbs, outdoor lighting solutions, portable lighting devices, indoor illumination, and solar-powered lighting systems. Its electrical neutrality and ANSI-compatible chromaticity bins support straightforward system integration and color consistency.
Operates at a forward voltage of 3.3 V with a maximum forward current of 1500mA. White LED color with 5000K color temperature for neutral bright light. Compact 3535 surface mount package with tape and reel packaging. Wide 115° viewing angle and luminous flux of 139 lumens for effective illumination.
Cree XLamp XP-G2 series ensuring high performance with low thermal resistance. Clear, square lens 3.45 x 3.45 x 2.26 mm dimension for focused light distribution. Compliance with UL, RoHS, and JEDEC J-STD-020C standards. Manufactured in China with no automotive standard applicability.
Preferred choice for industrial, commercial, and solar LED lighting applications. Explore more top-quality LED components in the Electronics & Electricals category at EnvMart for reliable and high-efficiency lighting solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a forward voltage of 3.3 V.
The maximum forward current for this LED is 1500mA.
It has a luminous flux rating of 139 lumens, providing effective illumination.
The color temperature of this LED is 5000K, which offers a neutral bright light output.
This model features a wide viewing angle of 115°.
The lens dimensions are 3.45 x 3.45 x 2.26 mm, and it has a square shape.
It is packaged in tape and reel format for efficient production insertion.
The LED complies with UL and RoHS standards, ensuring safety and environmental compliance.
This model is part of the Cree XLamp XP-G2 series, known for its high performance.
It has a low thermal resistance of 4°C/W, which aids in effective heat dissipation.
This unit contains a single LED.
It is suitable for various applications including LED light bulbs, outdoor lighting, and portable lighting devices.
