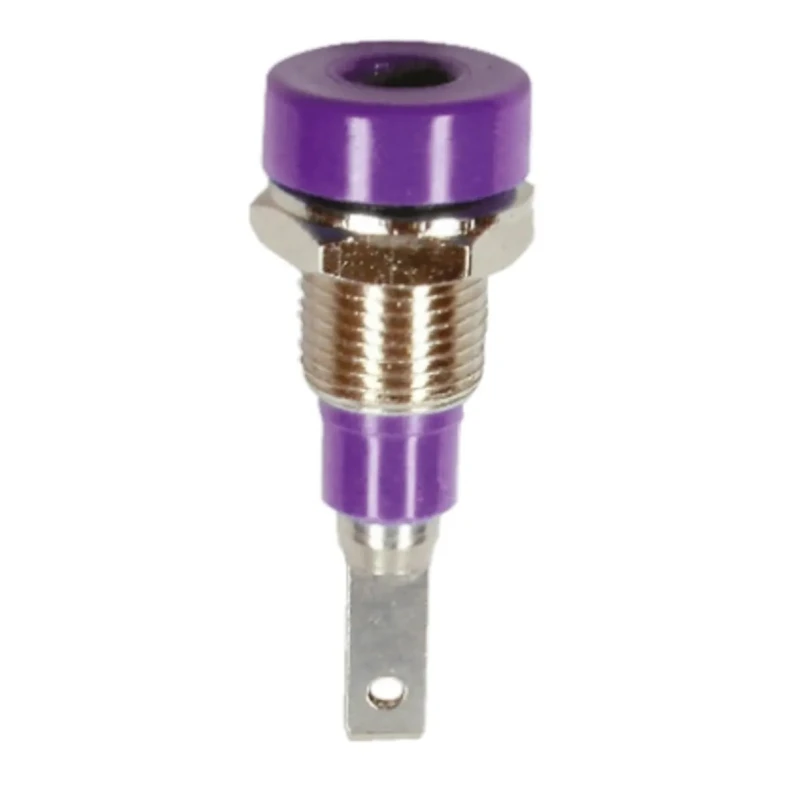

Staubli Violet Female Banana Socket 2 mm Connector Tab Termination 30 V, 60 V DC, 10 A 23.0030-26

Staubli 23.0030-26 Violet Female Banana Socket 2 mm Connector is a specialized electrical test connector suited for precision test and measurement applications in electronics and electrical engineering. It is designed to provide secure, reliable connections where consistent electrical contact and durability are critical.

This female banana socket features a 2 mm rigid brass socket finished with Optalloy® to resist wear and corrosion, enhancing longevity. It supports tab termination via a flat 2.8 mm by 0.8 mm tab, compatible with commonly used test lead tabs, ensuring stable electrical contact. The connector body includes an M6x0.5 threaded mounting that easily fits into pre-drilled panels and is provided with washer and locknut for secure mechanical fixing.

Rated at 10 amps for current and dual voltage ratings of 30 V AC and 60 V DC, the socket is well-suited for a variety of low voltage testing environments including laboratory instruments, industrial electrical test gear, and electronic devices. Its spring contact allows for repeated insertion cycles with reliable contact retention.

The connector's violet color coding allows easy recognition within test assemblies and helps maintain wiring and polarity organization. This socket is compatible with the SLS205-L range of multilam plug connectors, increasing its versatility in test setups that require multiple connector types.

Measuring 15.5 mm in length, it offers a compact and efficient design that suits panel mount requirements in instrumentation, electrical test, and industrial control system environments. It is manufactured in Switzerland, reflecting high quality and precision engineering standards.

The connector features a 2 mm size rigid brass socket with an Optalloy® finish for enhanced durability. It is designed for panel mount applications with M6x0.5 threading for secure installation. The socket includes a 2.8 x 0.8 mm flat tab termination for secure and consistent contact.

Rated for 10 amp current and voltages of 30 V AC and 60 V DC to handle various low voltage testing needs. Supplied complete with washer and locknut for easy panel mounting. The brown-violet color helps in easy phase or polarity identification in testing setups.

Compatible with SLS205-L 2 mm multilam plug connectors for versatile connectivity. Measuring 15.5 mm in length, designed for compact and efficient panel integration. Offers spring contact reliability for repeated insertion and removal cycles without degradation.

This banana socket is suitable for industrial, laboratory, electronics testing, electrical maintenance, and quality control applications where dependable connection and ease of installation are paramount. It enhances testing setups by providing secure, repeatable, and identifiable electrical connection points at low voltages.
