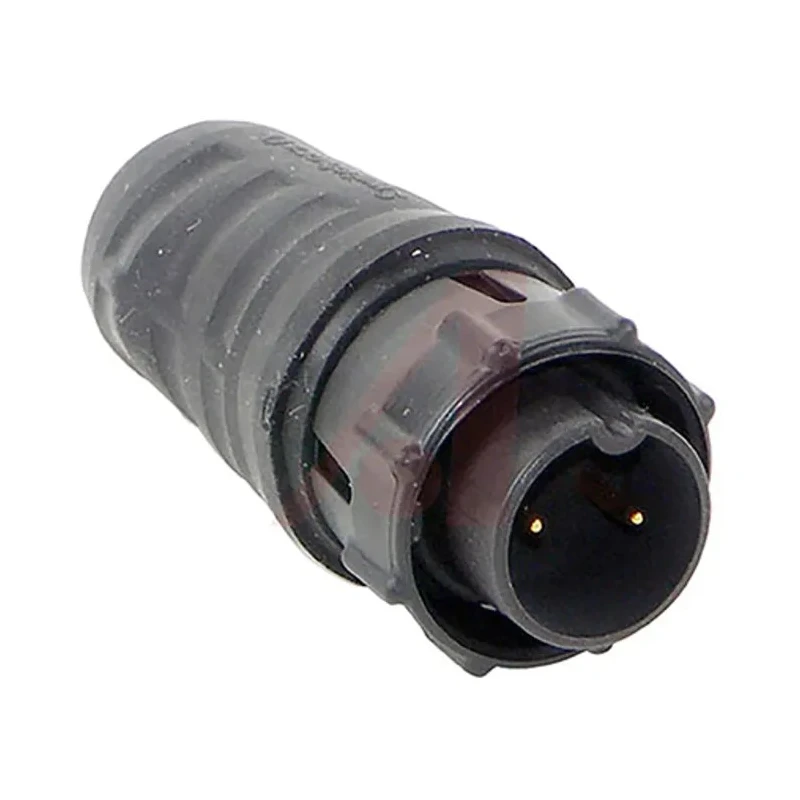

Switchcraft Industrial Circular Connector, 2 Contacts, Cable Mount Plug, Male, IP68 IP69K, Solder Termination EN3C2MX

Free Delivery in India | Lowest Global Shipping Charges

Switchcraft Industrial Circular Connector, 2 Contacts, Cable Mount Plug, Male, IP68 IP69K, Solder Termination EN3C2MX

Name: Switchcraft Industrial Circular Connector, 2 Contacts, Cable Mount Plug, Male, IP68 IP69K, Solder Termination EN3C2MX
Brand: SWITCHCRAFT
SKU: 135378
Price: 15.66 USD
Availability: InStock



Category Industrial Circular Connectors Brand SWITCHCRAFT Condition New

Specifications

Country of Origin	United States
Voltage	250, 600V
Brand	Switchcraft
Orientation	Straight
Current	7.5A
Model	EN3C2MX
IP Rating	IP68, IP69K
Mount Type	Cable, Cable
Housing Material	Thermoplastic
Contact Material	Copper
Series	EN3
Termination Type	Solder
Maximum Operating Temperature	65°C
Minimum Operating Temperature	-40°C
Contact Plating	Gold over Nickel
Number of Contacts	2
Contact Gender	Male
Mating Type	Bayonet
Connector Size	Standard
Plug/Socket	Plug

Key Features

This connector is rated IP68 and IP69K ensuring high-level water and dust resistance.
Features a bayonet mating type with solder termination for reliable electrical contact.
Constructed with thermoplastic housing and gold-over-nickel plated copper contacts for durability.
Operates within a temperature range from -40°C to 65°C suitable for rugged environments.
Supports 7.5A current and voltages of 250V and 600V AC/DC for versatile power handling.
Includes a straight orientation and a standard connector size for compatibility.
Ideal for applications in industrial, marine, medical instrumentation, military, and transportation sectors.
United States manufactured product ensuring quality and standards compliance.

Product Description

Switchcraft EN3C2MX is an industrial-grade circular connector designed for cable mounting applications. This male plug connector features 2 contacts with a robust bayonet mating mechanism and solder termination, ensuring secure and durable connections ideal for demanding environments.

Constructed with a thermoplastic housing and copper contacts plated with gold over nickel, it offers excellent corrosion resistance and electrical conductivity. The connector is rated IP68 and IP69K, providing superior protection against water ingress and dust, making it suitable for marine, transportation, military, medical instrumentation, industrial electronic, and process control applications.

Operating temperature ranges from -40°C to 65°C, this connector supports current ratings up to 7.5A and dual voltages of 250V and 600V AC/DC. The straight orientation and standard size facilitate easy integration into various cable systems. A snap-in place strain relief mechanism enhances durability for cable diameters up to 6.7mm. The connector achieves 600 insertion cycles, reflecting excellent mechanical longevity.

This connector is rated IP68 and IP69K ensuring high-level water and dust resistance. Features a bayonet mating type with solder termination for reliable electrical contact. Constructed with thermoplastic housing and gold-over-nickel plated copper contacts for durability.

Operates within a temperature range from -40°C to 65°C suitable for rugged environments. Supports 7.5A current and voltages of 250V and 600V AC/DC for versatile power handling. Includes a straight orientation and a standard connector size for compatibility.

Ideal for applications in industrial, marine, medical instrumentation, military, and transportation sectors. United States manufactured product ensuring quality and standards compliance.

This Switchcraft connector is a reliable choice for industrial electronic connectivity requiring weather-tight and robust cable mount plugs. Browse more Industrial Circular Connectors and related Switchcraft products at EnvMart for all your technical component needs.
