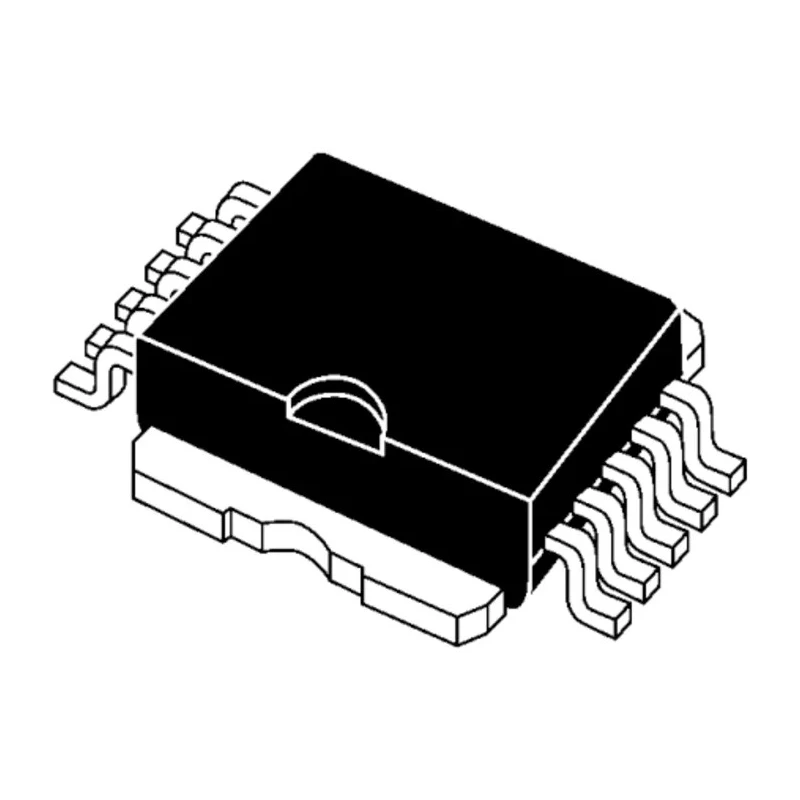

STMicroelectronics High Side Solid State Relay Power Switch IC 10-Pin PowerSO VN540SPTR-E
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | STMicroelectronics |
| Height | 3.55mm |
| Length | 7.6mm |
| Model | VN540SPTR-E |
| Width | 9.5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | PowerSO |
| Minimum Operating Temperature | -25°C |
| Operating Current | 2.8A |
| Number of outputs | 1 |
| Standards/Approvals | JEDEC JESD97 |
| Pin Count | 10 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 1V |
| Switch On Resistance RdsOn | 90mΩ |
Key Features
- Integrates logic interface, drivers, diagnostics, and protection features for high-side configurations.
- Has a switch on resistance (RdsOn) of 90 milliohms for low conduction losses.
- Supports 1 output with operating currents up to 2.8 amperes.
- Operates from a minimum supply voltage of 1V up to a maximum of 36V.
- Meets JEDEC JESD97 standards ensuring reliability and quality.
- Operating temperature range from -25°C to 85°C suitable for diverse industrial conditions.
- Compact dimensions with length 7.6 mm, width 9.5 mm, and height 3.55 mm.
- Not compliant with automotive standards and manufactured in Malaysia.
Product Description
STMicroelectronics VN540SPTR-E is an intelligent high side solid state relay power switch integrated circuit designed for high-side switch applications. The device combines the logic interface, driver, diagnostic, and power stage in a compact 10-pin PowerSO surface mount package, providing reliable control and protection of electronic loads.
This power switch IC features a low switch on resistance of 90 milliohms, minimizing power dissipation during operation. It supports a single output channel with a maximum operating current of 2.8 amperes, making it suitable for various electronic control applications requiring moderate current switching.
The device functions effectively over a wide operating voltage range, with a minimum supply voltage of 1 volt and a maximum of 36 volts. It is designed to operate reliably within a temperature range from -25°C to 85°C, ensuring adaptability to industrial and commercial environments.
Compliant with JEDEC JESD97 standards, the VN540SPTR-E upholds quality and reliability criteria important for semiconductor power management ICs. The package dimensions - 7.6 mm length, 9.5 mm width, and 3.55 mm height - facilitate compact PCB design and space savings.
Manufactured in Malaysia, this component is not certified for automotive applications, but is well-suited for industrial electronics, power management, and embedded system designs where intelligent high side switching is required.
Key Features:. Integrated intelligent high side switch with diagnostic and protection features. Low on-state resistance of 90 mΩ reduces conduction losses. Single output supporting up to 2.8 A operating current. Wide operating voltage range from 1 V to 36 V.
Operates reliably between -25°C and 85°C ambient temperatures. JEDEC JESD97 certified for reliability and performance. Compact 10-pin PowerSO surface mount package with small footprint.
This product is commonly used in industrial automation, power control systems, embedded controller boards, and other applications requiring efficient high-side load switching and control.
Explore a wide range of Power Switch ICs and other semiconductor solutions at EnvMart for high performance and reliable electronics design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum operating current of 2.8 amperes.
The VN540SPTR-E features a switch on resistance (RdsOn) of 90 milliohms, which helps minimize conduction losses.
It operates over a wide voltage range from a minimum of 1 volt to a maximum of 36 volts.
The compact dimensions of this unit are 7.6 mm in length, 9.5 mm in width, and 3.55 mm in height.
This power switch IC operates reliably within a temperature range of -25°C to 85°C.
It is packaged in a 10-pin PowerSO surface mount configuration.
Yes, it meets the JEDEC JESD97 standards, ensuring reliability and quality.
This model supports a single output channel.
It is commonly used in industrial automation, power control systems, and embedded controller boards requiring efficient high-side load switching.
This product is manufactured in Malaysia.
It utilizes surface mounting for installation.
Yes, it integrates diagnostic and protection features for high-side configurations.
