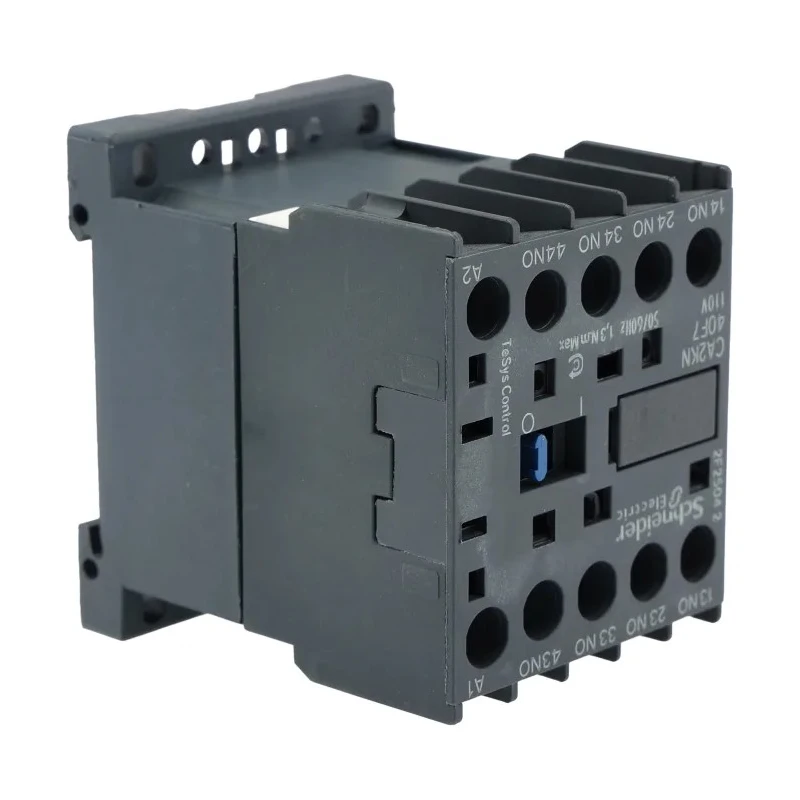

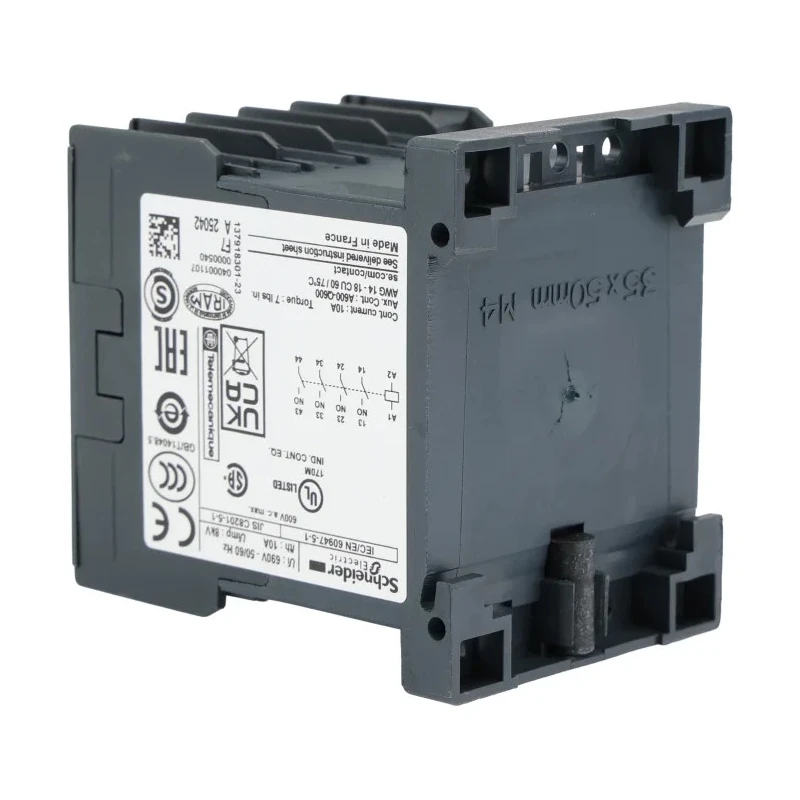

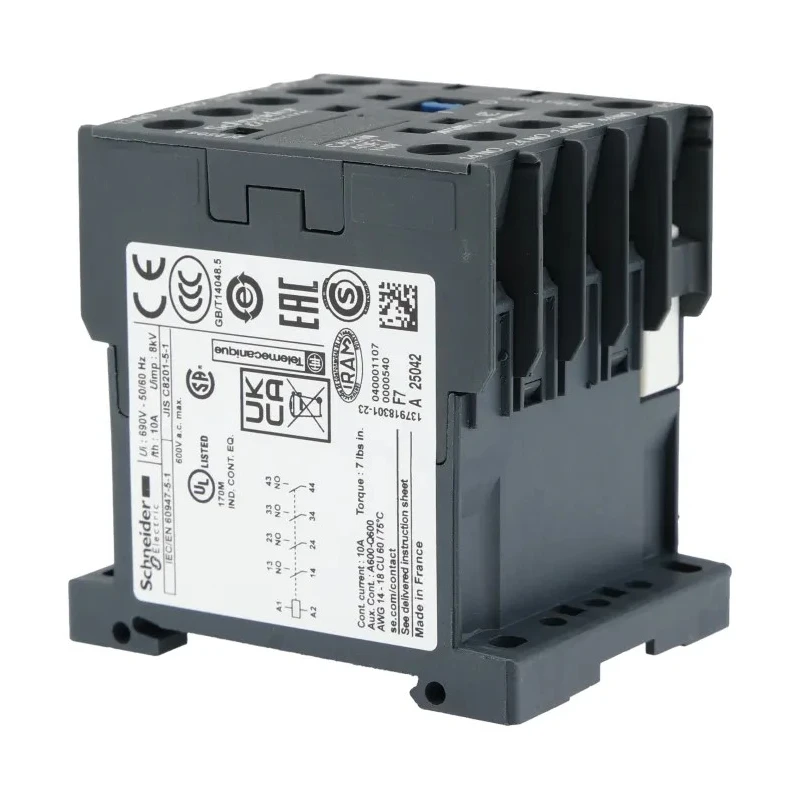

Schneider Electric TeSyS CA 4-Pole Contactor, 110V AC Coil Voltage, 10A Current, 4 NO Contacts CA2KN40F7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Reversing |
| Length | 45mm |
| Model | CA2KN40F7 |
| Depth | 57mm |
| Width | 58mm |
| Mount Type | DIN Rail |
| Series | TeSyS CA |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 10A |
| Number of Auxiliary Contacts | 4 |
| Auxiliary Contact Configuration | 4 NO |
| Operational Current Ie | 10A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Control Relay |
| Pole and Throw Configuration | 4 |
| Schneider Electric CA2KN Contactor, 10 A, 4 NO, 690V acBrand | Schneider Electric |
Key Features
- Designed for reversing function, allowing flexible circuit control.
- Features four normally open (4 NO) contact points for effective switching.
- Compact DIN rail mountable design for easy installation in control panels.
- Rated contact voltage of up to 690V AC ensures high voltage tolerance.
- Operates efficiently within temperature range of -25°C to 50°C, suitable for industrial environments.
- Mechanical endurance rated for 10 million cycles provides long service life.
- Screw clamp terminals support solid and flexible cables from 0.34mm² to 4mm², ensuring secure connections.
- Complies with multiple international standards including UL, CE, CB, and UKCA certifications.
Product Description
Schneider Electric CA2KN40F7 is a high-performance TeSyS CA series contactor designed for industrial and automation control applications. This 4-pole device is equipped with a 110V AC coil voltage and can handle operational currents up to 10 amperes. Its compact dimensions (45mm length, 58mm width, 57mm depth) make it suitable for DIN rail mounting, allowing for streamlined control panel installations.
The contactor features four normally open (4 NO) contacts rated at 690V AC, ensuring robust switching capabilities in demanding electrical circuits. Its reversing function enhances operational flexibility, suitable for a variety of control relay applications in manufacturing and HVAC sectors.
Designed to operate in harsh ambient conditions, it supports a temperature range from -25°C to +50°C and is mechanically rated for 10 million operational cycles, providing reliable and durable performance in industrial environments. Screw clamp terminals accommodate solid and flexible cables from 0.34mm² to 4mm² cross-sections, facilitating versatile wiring options.
Certified under a broad range of international standards such as GB/T 14048.4, JIS C8201-4-1, UL 60947-4-1, CE, CB scheme, UKCA, and CSA, this contactor ensures compliance and safety for critical electrical installations.
Reversing type contactor with 4 normally open contacts. Control relay designed for industrial automation. Din rail mounting for easy and secure installation. Suitable for industrial machinery, HVAC systems, and manufacturing controls.
Supports control circuits requiring switching up to 10A and 690V AC. Robust screw clamp terminals for cables 0.34mm² to 4mm². Wide operating temperature range and mechanical endurance for reliable service.
This Schneider Electric TeSyS CA Contactor offers industrial users an efficient and trusted solution for managing control circuits and switching operations in complex electrical systems. For more electrical components and automation gear, explore the relevant categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor is 110V AC.
It can handle a maximum contact voltage of 690V AC.
The operational current rating is 10A.
This contactor has 4 poles.
The dimensions are 45mm in length, 58mm in width, and 57mm in depth.
It uses screw clamp terminals that support solid and flexible cables from 0.34mm² to 4mm².
The operating temperature range is from -25°C to +50°C.
The mechanical endurance is rated for 10 million cycles.
Yes, it features a compact design that is suitable for DIN rail mounting.
It is designed for control relay applications in industrial automation and HVAC systems.
It complies with multiple international standards including UL, CE, CB, and UKCA certifications.
The normal state configuration consists of 4 normally open (4 NO) contacts.
