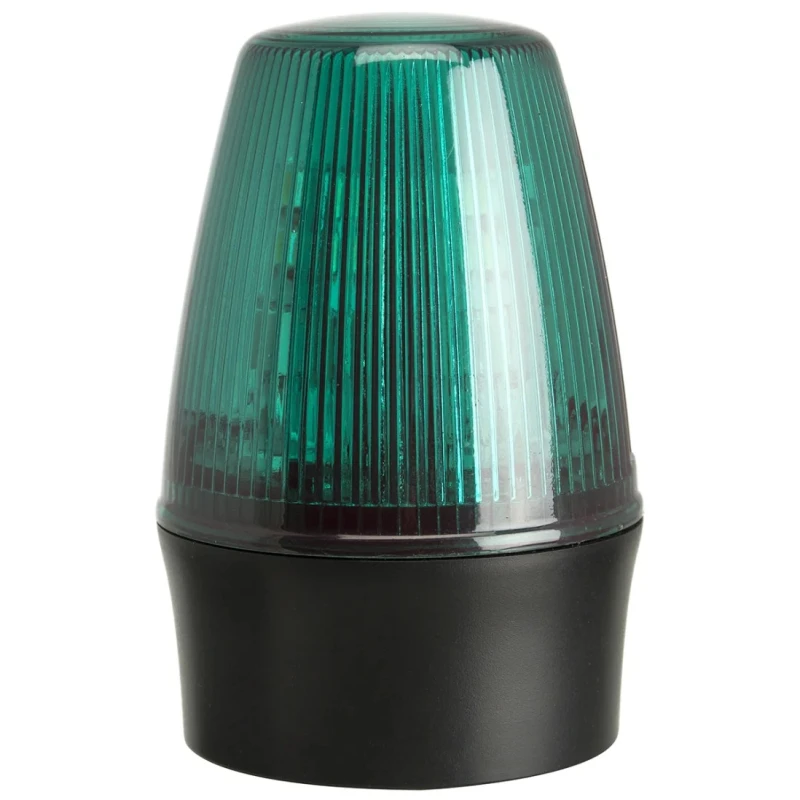

Moflash Green Beacon LEDS100-01-04 17V AC/DC Flashing Surface Mount LED Bulb IP65

Moflash LEDS100-01-04 Green Beacon is an industrial LED signaling device operating at 17V AC/DC with a flashing light effect. This beacon is designed for robust and long-lasting performance in commercial and industrial automation signaling applications requiring clear local visual indication.

The LEDS100 series offers dual selectable alarm stages, allowing users to switch between flashing and continuous static light modes via a jumper link on the PCB. Additionally, a third wire connection permits toggling from preset static to flashing mode, providing installation flexibility.

Constructed with UV stable polycarbonate for the lens and a UV resistant ABS plastic housing in black, the beacon maintains durability against environmental factors. It provides 360 degrees light visibility around the vertical axis, enabling clear signaling from all angles.

Mounting is simplified with two 5mm fixing studs spaced 45mm apart, suitable for surface, conduit box, or wall mounting. The beacon's design incorporates internal termination options accessible through its base or a 6mm cable channel angled at 90 degrees for surface-mounted cabling.

Operationally, it achieves 160 flashes per minute with low power consumption and is continuously rated for reliable use. It operates effectively within ambient temperatures from -25°C up to 55°C and carries an IP65 rating, ensuring dustproof and weatherproof protection in harsh industrial environments.

Compliance with CE and RoHS standards assures quality, safety, and environmentally responsible manufacture. The beacon includes the lamp and supports versatile AC/DC current types, enhancing applicability across various automation and industrial signaling setups.

Typical use cases include industrial automation, manufacturing facility signaling, machinery status indication, and safety alert systems demanding visible, reliable LED beacon performance with robust environmental protection.

The beacon offers dual function with flashing or continuous static mode selectable by jumper link. Designed for surface mounting with two 5mm studs on 45mm centers for secure fixing. Constructed with UV stable polycarbonate lens and ABS plastic black housing, ensuring durability.

Provides 360° light output with a 160 flashes per minute rate and low current consumption. Rated IP65 for dustproof and weatherproof protection suitable for industrial environments. Operates reliably within a temperature range of -25°C to 55°C and is continuously rated.

Suitable for applications in industrial, manufacturing, automation, and safety signaling. Complies with CE and RoHS standards for environmental and safety requirements. Height of 107mm and base diameter of 72mm, supporting easy installation and integration.

Includes the lamp and supports connection versatility with AC/DC current types. Explore more automation signaling devices and LED beacons in the Electronics & Electricals category at EnvMart for your industrial and manufacturing applications.
