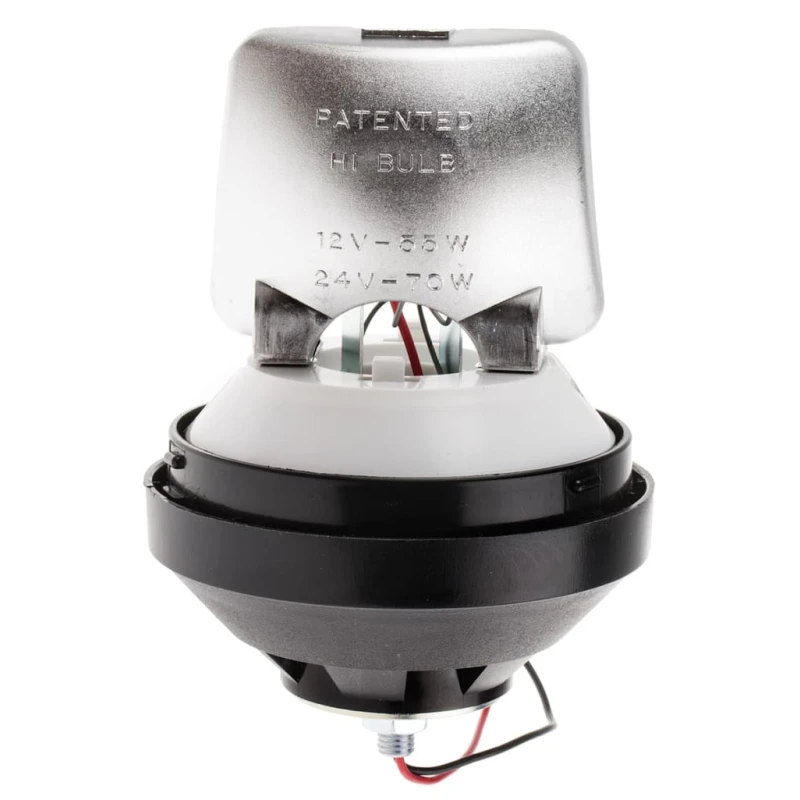

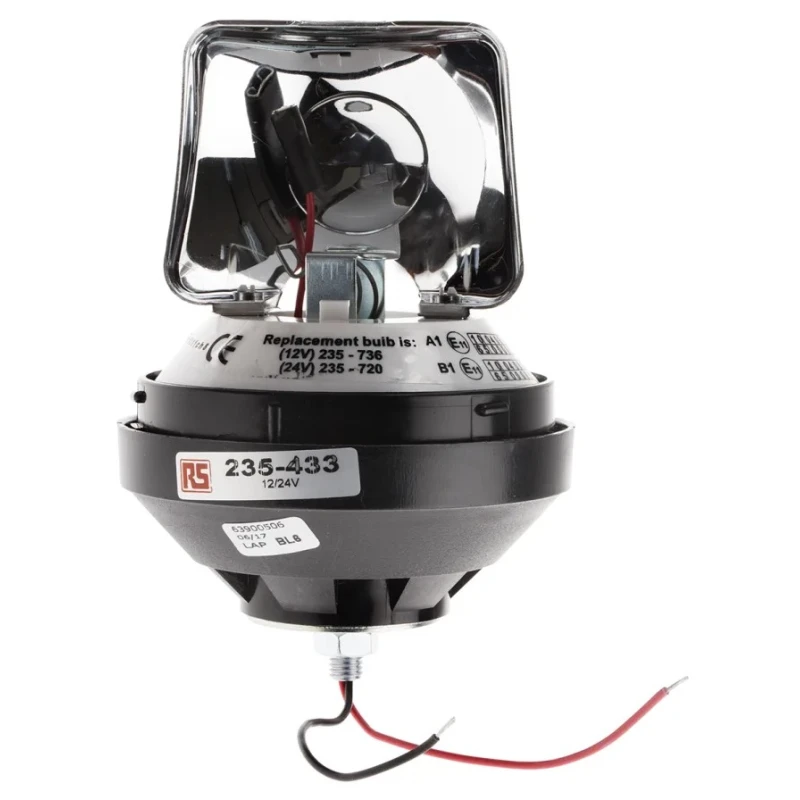

RS PRO V10994 Series Multi-Colour Rotating Beacon 24V DC Flexi DIN Magnetic Single Point Incandescent Bulb 235-433
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Height | 203mm |
| Operating Temperature Range | -30°C → +50°C |
| Model | 235-433 |
| IP Rating | IP56 |
| Mount Type | Flexi DIN, Magnetic, Single Point |
| Bulb Type | Incandescent |
| Series | V10994 |
| Maximum Operating Temperature | 50°C |
| Current Type | DC |
| Current consumption | 4.6A |
| Minimum Operating Temperature | 30°C |
| Base Diameter | 130mm |
| Revolution Speed | 180rpm |
| Lens Colour | Green, Red, Clear, Blue, Amber |
| Standards/Approvals | EMC, RoHS Compliant |
| Maximum Supply Voltage | 24V dc |
| Housing Colour | Black |
Key Features
- High-speed rotating beacon with excellent multi-colour visibility.
- Supports green, red, clear, blue, and amber lens options for diverse signalling requirements.
- Operates at 24V DC with a current consumption of 4.6A, suitable for industrial automation and safety applications.
- Features Flexi DIN mounting and magnetic single-point installation for versatile use.
- Incandescent bulb delivers reliable guided warning signals across wide operating temperatures.
- Reverse polarity protection ensures safe operation in demanding environments.
- IP56-rated housing for water and dust resistance, with robust black construction.
- Designed for continuous rotation at 180rpm and a base diameter of 130mm for compatibility with standard panel cutouts.
Product Description
RS PRO V10994 Series 235-433 is a high-performance multi-colour rotating beacon, engineered for demanding industrial and automation signalling applications. Designed to support green, red, clear, blue, and amber lens variants, this beacon provides clear visual indicating signals where assured attention and safety are paramount. Its versatile Flexi DIN mounting and magnetic single-point installation options facilitate quick deployment and reliable use across a variety of machine panels, control cabinets, and equipment environments.
The beacon operates efficiently at 24V DC with a low current consumption of 4.6A, making it suitable for integration into modern automation and control networks. The robust IP56-rated black housing protects against dust and water ingress, ensuring durability under challenging conditions, and continuous operation in environments subject to wide ambient temperature ranges from -30°C to +50°C.
An incandescent bulb delivers dependable, continuous rotational warning signals at a speed of 180rpm. The beacon is engineered with reverse polarity protection, safeguarding sensitive electronics and providing secure performance regardless of installation orientation. The unit features a generous base diameter of 130mm and a height of 203mm, compatible with standard industry panel cutouts.
Magnetic versions of the V10994 series are rated for vehicle speeds up to 70mph and offer optional DIN mounting stems, which further extend flexibility in deployment. All lens and bulb items must be sourced separately, allowing tailored selection per site requirements. This model complies with EMC and RoHS directives, ensuring suitability for regulated industrial workplaces.
Ideal for applications in factories, laboratories, warehouses, assembly lines, vehicle fleets, and safety-critical environments, the RS PRO V10994 Series rotating beacon stands out as a reliable solution for enhanced operational safety and process awareness. It addresses requirements for clear status indication, emergency signalling, and operational guidance within manufacturing, process control, and industrial automation. Explore more from RS PRO and browse the Automation Signalling Beacon range on EnvMart for tailored industrial signalling solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at 24V DC with a current consumption of 4.6A.
The beacon has a height of 203mm and a base diameter of 130mm.
It features a continuous rotation speed of 180rpm.
The housing is rated IP56, providing protection against dust and water ingress.
This model supports green, red, clear, blue, and amber lens options.
It operates within a temperature range of -30°C to +50°C.
It features Flexi DIN mounting and magnetic single-point installation for versatile use.
The beacon uses an incandescent bulb for its operation.
Yes, this model is designed with reverse polarity protection to ensure safe operation.
It complies with EMC and RoHS directives, ensuring suitability for regulated environments.
It is ideal for use in factories, laboratories, warehouses, assembly lines, and safety-critical environments.
The beacon is manufactured in the United Kingdom.
