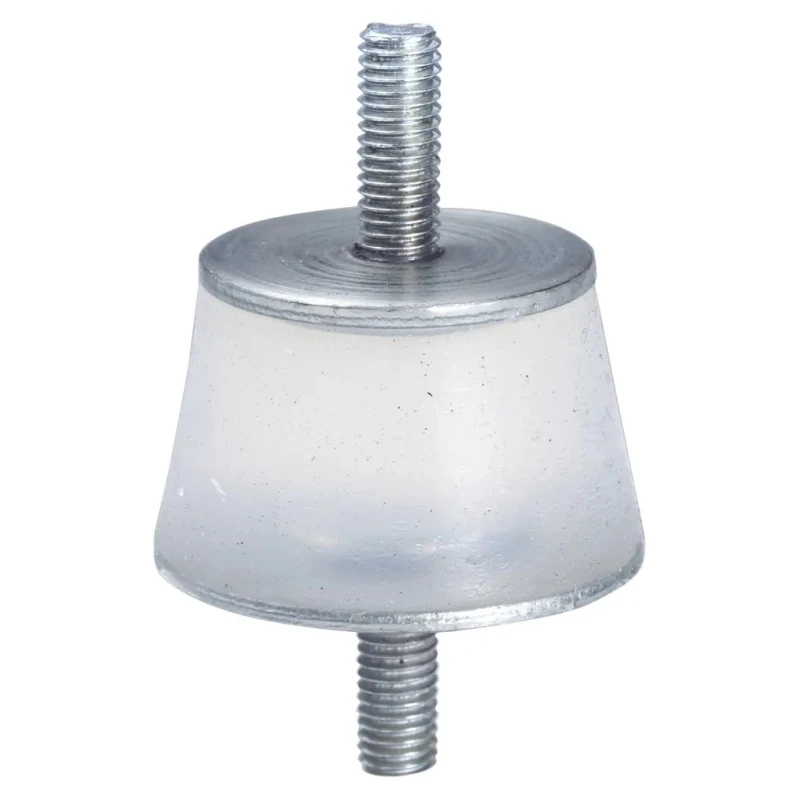

Taica Round M6 Anti-Vibration Mount Male to Male Bobbin with 47 N Compression, 6mm Bore, 35 mm OD, 25 mm H THETA-TW SUS
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Taica |
| Material | Silicone Gel |
| Model | THETA-TW SUS |
| Mount Type | Screw |
| Series | THETA-TW SUS |
| Outside diameter | 35mm |
| Thread Size | M6 |
| Bore Diameter | 6mm |
| Overall height | 25mm |
| Static Load Rating | 18kg |
| Bore Length | 12mm |
| Anti Vibration Mount Type | Male to Male Bobbin |
| Compression Load | 47N |
| Compression Deflection | 10.5mm |
| Foot Colour | Black |
| Foot Shape | Round |
| Foot Height | 12mm |
Key Features
- Constructed from soft silicone gel for effective vibration damping.
- Suitable for loads between 2 kg and 100 kg supported at four points.
- Resistant to ozone, UV, weathering, and chemicals with high temperature tolerance from -40 to 200°C.
- Features stainless steel parts for durability and fixation using two vertical slotted bolts.
- Ideal for vacuum pumps, precision equipment, measuring devices, and sensitive electronics.
- Mount type is screw with M6 thread size and male to male bobbin configuration.
- Compression deflection is 10.5 mm with a static load rating of 18 kg and compression load of 47 N.
Product Description
Taica THETA-TW SUS round M6 anti-vibration mount is a male to male bobbin type designed specifically for effective vibration isolation, shock absorption, and noise reduction in industrial and precision applications.
Manufactured from soft silicone gel, these mounts provide superior vibration damping performance, capable of handling loads from 2 kg up to 100 kg across four point supports. The silicone formulation allows for damping at a lower frequency compared to rubber or neoprene alternatives.
All SUS versions feature stainless steel components ensuring strong bonds between metal parts and silicone. Fixing is facilitated by two vertical slotted bolts enhancing stability and reliability during use.
The mounts exhibit excellent resistance to harsh environments with high tolerance to temperature extremes between -40°C and 200°C, along with excellent weathering, ozone, ultraviolet, and chemical resistance.
Typical uses include mounting for vacuum pumps, precision instruments, measuring equipment, onboard computer systems, and other sensitive electronic devices requiring low-frequency vibration isolation.
Soft silicone gel construction for vibration isolation. Male to male bobbin mount with M6 screw type connection. 6 mm bore diameter and 35 mm outside diameter for standard mounting compatibility. 25 mm overall height with 10.5 mm compression deflection.
Static load rating of 18 kg and compression load capacity of 47 N. Stainless steel parts provide corrosion resistance and durability. High temperature resistance and excellent chemical and weathering resistance. This product is made in Japan and is supplied new in single item packaging.
Explore more anti-vibration mounts and machine mounts in the EnvMart catalog for industrial and engineering applications.
Explore more products in our Anti Vibration Mounts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The static load rating of this mount is 18 kg.
The compression load capacity is 47 N.
This mount is constructed from silicone gel and features stainless steel parts for durability.
The mount has a bore diameter of 6 mm, an outside diameter of 35 mm, and an overall height of 25 mm.
The compression deflection is 10.5 mm.
It can operate within a temperature range of -40°C to 200°C.
It is installed using two vertical slotted bolts, which enhance stability during use.
This model is suitable for vacuum pumps, precision instruments, measuring equipment, and sensitive electronic devices requiring vibration isolation.
It uses an M6 thread size for the screw connection.
The foot shape is round and the foot color is black.
The silicone gel provides resistance to ozone, UV, weathering, and chemicals.
This product is made in Japan.
