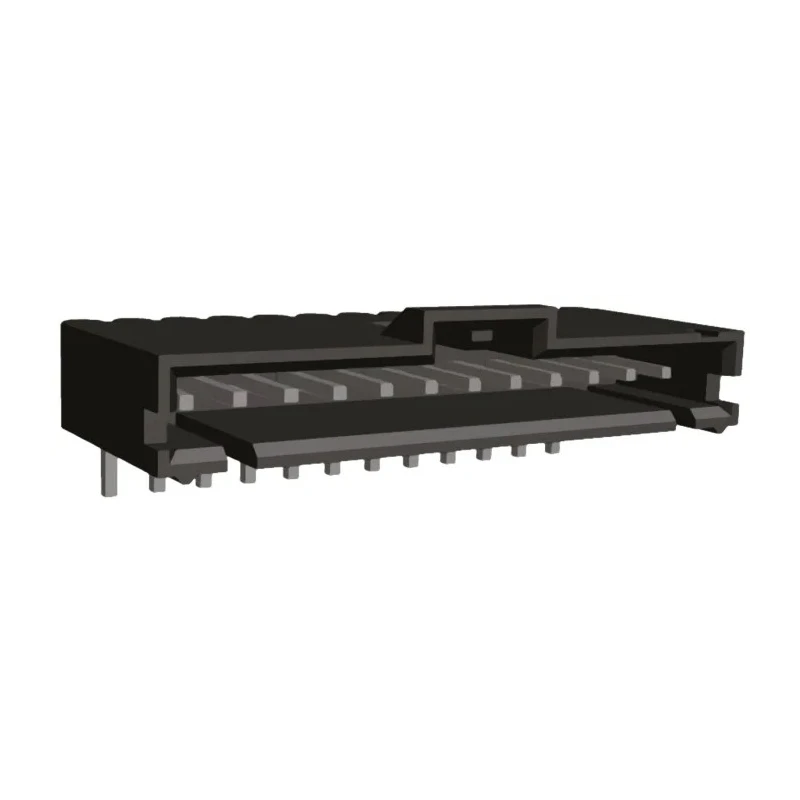

TE Connectivity AMPMODU MTE Series Right Angle Through Hole PCB Header, 12 Contacts, 2.54 mm Pitch, 1 Row 6-103634-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPMODU MTE |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.3mm |
| Mating Pin Length | 5.84mm |
Key Features
- Designed for wire-to-board connections with a right angle orientation.
- Supports a current rating of up to 3A at 600V voltage.
- Features thermoplastic housing with brass contacts plated with tin for reliability.
- Single row, shrouded connector ensures secure mating with integral latching system.
- Suitable for use in electronic equipment such as computers, telecommunications, and automotive controls.
- Operates reliably in temperatures ranging from -65°C to 105°C.
- Through hole mount type with solder termination for PCB applications.
- Includes 3.3 mm tail pin length and 5.84 mm mating pin length for secure connections.
Product Description
TE Connectivity 6-103634-1 AMPMODU MTE Series Right Angle Through Hole PCB Header is a durable and efficient connector designed for wire-to-board electronic applications. Featuring a pitch of 2.54 mm and 12 contacts arranged in a single row with a shrouded housing, it offers secure and reliable connections for printed circuit boards.
The connector uses thermoplastic housing materials combined with brass contacts plated in tin for enhanced corrosion resistance and consistent electrical performance. It supports currents up to 3 amperes and withstands voltages up to 600 volts, making it suitable for a broad range of electronic and industrial uses.
Its right angle orientation and through hole mounting type facilitate easy integration onto PCB assemblies. The product incorporates an integral latching mechanism that ensures a secure mating connection with compatible IDC receptacle connectors, enhancing assembly stability.
Designed for tough industrial environments, it operates effectively within a temperature range of -65°C to 105°C. Applications for this PCB header include computers, telecommunication devices, commercial printers, medical instrumentation, and automotive control systems.
TE Connectivity's AMPMODU MTE Interconnection System offers labor-saving mass termination solutions based on insulation displacement contact (IDC) technology, eliminating the need for wire stripping and expediting assembly processes.
Designed for wire-to-board connections with a right angle orientation. Supports a current rating of up to 3A at 600V voltage. Features thermoplastic housing with brass contacts plated with tin for reliability. Single row, shrouded connector ensures secure mating with integral latching system.
Suitable for use in electronic equipment such as computers, telecommunications, and automotive controls. Operates reliably in temperatures ranging from -65°C to 105°C. Through hole mount type with solder termination for PCB applications.
Includes 3.3 mm tail pin length and 5.84 mm mating pin length for secure connections. This connector is ideal for industrial, manufacturing, laboratory, and commercial electronics assembly requiring robust, reliable connections.
Explore EnvMart’s extensive range of electronic connectors and PCB components to find compatible parts and accessories.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of up to 3A.
The voltage rating is up to 600V.
The housing is made of thermoplastic, and the contacts are brass plated with tin.
The pitch size is 2.54 mm.
It features 12 contacts arranged in a single row.
It operates reliably in temperatures ranging from -65°C to 105°C.
It supports through hole mounting with solder termination.
The tail pin length is 3.3 mm.
The mating pin length is 5.84 mm.
It utilizes a wire-to-board connector system.
Yes, it is suitable for use in electronic equipment such as computers, telecommunications, and automotive controls.
The orientation is right angle.
