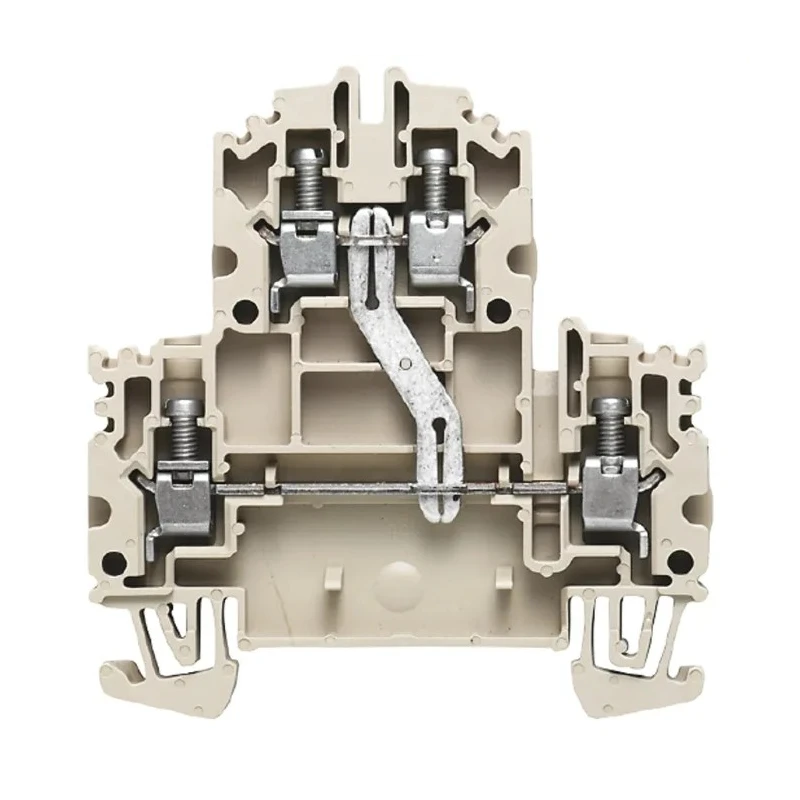

Weidmüller W Series Double Level Terminal Block Dark Beige 4mm² 32A Screw 800V 1041910000
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 800V |
| Brand | Weidmüller |
| Colour | Dark Beige |
| Series | W |
| Termination Type | Screw |
| Maximum Operating Temperature | 120°C |
| Number of Levels | 2 |
| Minimum Operating Temperature | -50°C |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 10AWG |
| Cable CSA | 4mm² |
| Terminal Block Current | 32A |
Key Features
- This terminal block features a double-tier design allowing efficient wire connection in compact spaces.
- The color is dark beige, constructed from nylon 6.6 for high durability and temperature resistance.
- It supports wire sizes from 26AWG to 10AWG and has screw-type terminations for secure connections.
- Operates reliably in temperatures ranging from -50°C to 120°C, meeting industrial operational needs.
- Designed for snap-on mounting on 'Top Hat' DIN rails complying with BS5584 and EN 50022 standards.
- Body material is self-extinguishing to UL94V-0 and free from cadmium and halogen substances.
- Copper current bars ensure electrical current loading above the nominal rating for enhanced safety.
- No hazardous area certification or additional standards approvals are applied to this terminal block.
Product Description
Weidmüller 1041910000 W Series Double Level Terminal Block is an industrial-grade terminal block designed for secure and reliable electrical connections in control panels and junction boxes. It features a double-tier screw clamp design facilitating compact wiring arrangements. The dark beige block is manufactured from nylon 6.6 polymer which offers excellent mechanical strength, heat resistance up to 120°C including short-term peaks at 180°C, and UL94V-0 self-extinguishing properties for enhanced safety.
This model supports wire sizes between 26AWG and 10AWG with a cable cross-sectional area of up to 4mm². It is rated for 32A current carrying capacity and up to 800V operating voltage, making it suitable for a wide range of industrial electrical applications and machinery installations.
The screw terminal type ensures a secure mechanical and electrical connection, suitable for vibrational environments. The blocks clip easily onto standard symmetric 'Top Hat' DIN rails as per BS5584:1978 and EN 50022, simplifying installation in electrical cabinets and automation systems.
Current bars are made from 10 mm electrolytic copper, providing superior conductivity and overload capacity beyond the nominal rating for operational safety. The terminal block is free of hazardous substances such as cadmium and halogen, aligning with environmental compliance requirements.
Typical applications include industrial automation, manufacturing electrical panels, HVAC systems, and other commercial electrical equipment installations where compact and reliable terminal connections are essential.
This terminal block features a double-tier screw clamp design optimized for space-saving electrical connections. Constructed with nylon 6.6 housing offering thermal endurance and UL94V-0 self-extinguishing properties. Supports wire sizes from 26AWG to 10AWG with a cable cross section of 4mm².
Rated for 32A current load and 800V maximum operating voltage. Snap-on mounting compatible with symmetric 'Top Hat' DIN rails according to BS5584 and EN 50022. Copper current bars provide enhanced conductivity and overload capacity.
Designed without hazardous cadmium and halogen substances for environmental safety. Operating temperature from -50°C to 120°C meets broad industrial requirements. Manufactured in Romania ensuring quality control and standard compliance.
Explore more in the EnvMart catalog under Electronics Components and DIN Rail Terminal Blocks for compatible industrial electrical connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this model is 800V.
It is rated for a current carrying capacity of 32A.
This terminal block supports wire sizes ranging from 26AWG to 10AWG, with a cable cross-sectional area of up to 4mm².
The operating temperature range for this terminal block is from -50°C to 120°C.
It uses a screw-type termination for secure connections.
It is designed for snap-on mounting on 'Top Hat' DIN rails, compliant with BS5584 and EN 50022 standards.
It is manufactured in Romania, ensuring quality control and standard compliance.
It features a double-tier screw clamp design that facilitates compact wiring arrangements.
Typical applications include industrial automation, manufacturing electrical panels, and HVAC systems.
The body material is self-extinguishing to UL94V-0, enhancing safety in electrical installations.
