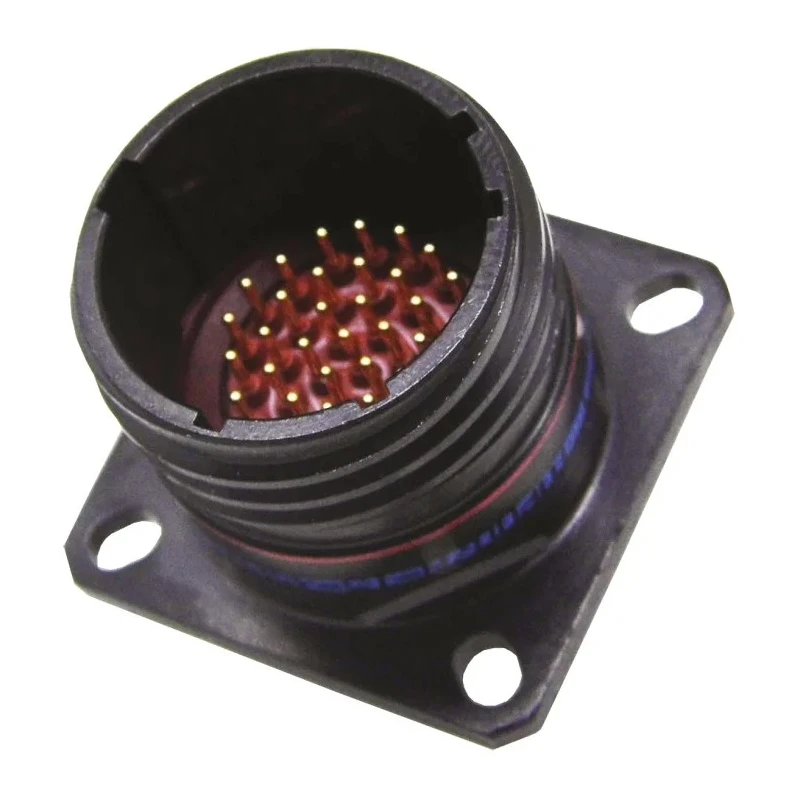

Amphenol Limited MIL Spec Circular Connector Copper Alloy Straight 22 Way Wall Mount Black Zinc Nickel TVP00ZN-13-35PN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 400, 500V ac |
| Brand | Amphenol Limited |
| Colour | Black |
| Orientation | Straight |
| Current | 5A |
| Model | TVP00ZN-13-35PN |
| Mount Type | Wall Mount |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | TV |
| Termination Type | Solder |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |
| Number of Contacts | 22 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 13 |
| Military Standard | MIL-DTL-38999 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Black Zinc Nickel |
Key Features
- This MIL-DTL-38999 Series III circular connector features 22 contacts for reliable electrical connections.
- The connector has a straight orientation with male contacts and a female connector gender.
- Designed with black zinc nickel plating for superior corrosion resistance and durability.
- The aluminium housing with solder termination supports operating temperatures from -65°C up to 175°C.
- Supports up to 5A current and 400 to 500V AC voltage for industrial and military applications.
- Wall mount type with screw coupling mating ensures secure and stable connection.
- This connector complies with RoHS and meets demanding military standards for rugged environments.
- Ideal for use in military aircraft, vehicles, submarines, communication devices, and harsh commercial settings.
Product Description
Amphenol Limited TVP00ZN-13-35PN is a MIL Spec Circular Connector featuring a copper alloy construction and black zinc nickel plating, designed to meet MIL-DTL-38999 Series III Class Z standards. This 22-way straight, wall mount connector is engineered for harsh industrial and military environments, offering excellent durability with salt spray resistance up to 500 hours and up to 500 mating cycles.
The connector houses 22 male contacts within a female shell of aluminium material, with solder termination type and screw coupling mating for secure connections. It operates reliably within a wide temperature range from -65°C to 175°C and supports AC voltages of 400 to 500 volts and currents up to 5 amps.
Its black zinc nickel plating is a RoHS-compliant alternative to cadmium, providing low shell-to-shell continuity below 2.5 milliohms and corrosion resistance suitable for defense and demanding commercial applications. The strain relief feature enhances mechanical stability, and gold-plated contacts ensure consistent electrical performance.
This connector is suited for applications across military aircraft systems, land vehicles, submarines, and communications equipment, as well as other industrial sectors requiring rugged and reliable circular connectors.
This MIL Spec Circular Connector has 22 contacts ensuring efficient power and signal transmission. Black zinc nickel plating delivers excellent corrosion resistance and environmental durability. Aluminium housing provides a lightweight yet robust enclosure for demanding applications.
Supports high mating cycles and extreme temperature ranges for long-term reliability. Screw coupling mechanism ensures stable connection in vibration-prone environments. Complies with MIL-DTL-38999 standards, making it suitable for military and defense projects.
Gold-plated copper alloy contacts maximize conductivity and reduce signal loss. Strain relief feature prevents damage to wires and improves connector lifespan. Explore more Mil Spec Circular Connectors by Amphenol Limited and find reliable connectors for industrial and military use cases at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this connector is 175°C.
This model features a wall mount type with a screw coupling mating mechanism.
The TVP00ZN-13-35PN connector has 22 contacts.
It supports AC voltages of 400 to 500 volts.
The housing is made of aluminium, and the contacts are made of copper alloy with gold plating.
The connector supports a maximum current of 5 amps.
It complies with the MIL-DTL-38999 military standard.
The contacts in this connector are arranged in a straight orientation.
The minimum operating temperature is -65°C.
The screw coupling mechanism ensures a secure and stable connection, particularly in vibration-prone environments.
This connector is suitable for military aircraft, vehicles, submarines, communication devices, and other harsh commercial settings.
The shell is plated with black zinc nickel, providing corrosion resistance.
