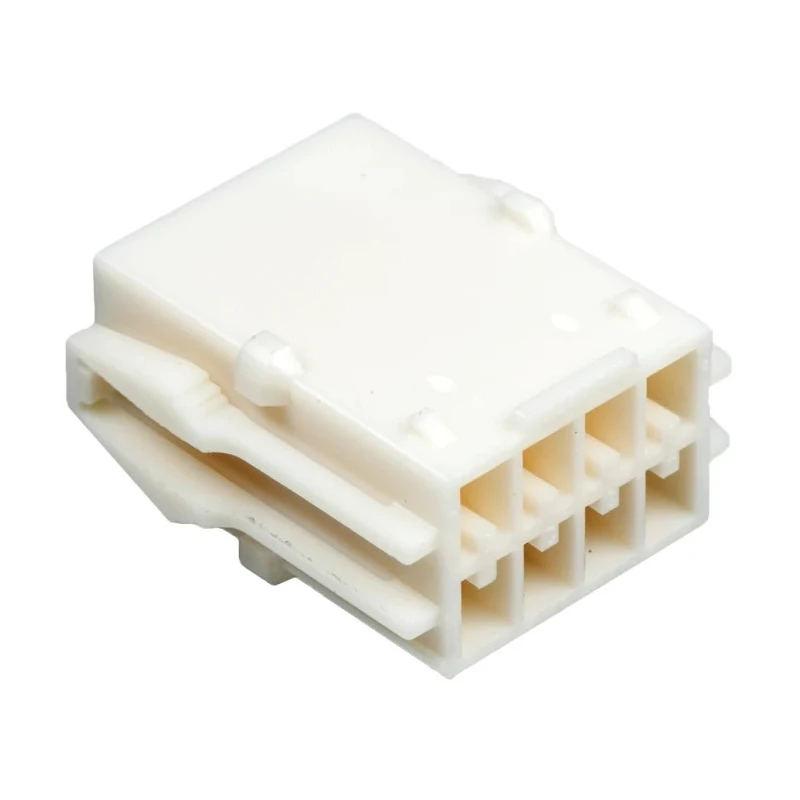

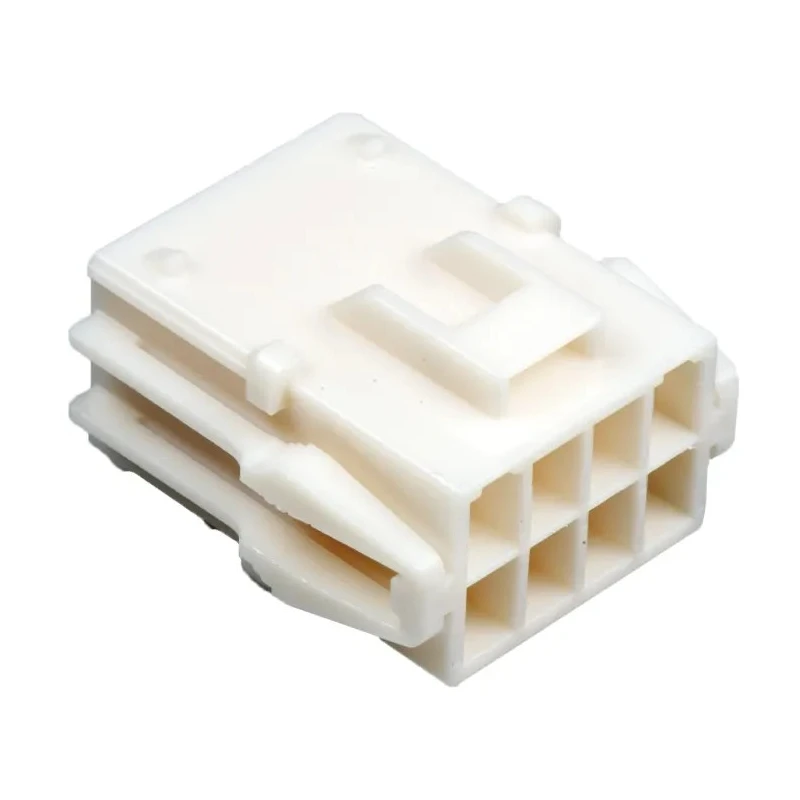

JST HLR Female Connector Housing 3.96 mm Pitch 8 Way 2 Row Straight HLR-08V

JST HLR-08V is a female connector housing from the HL series, featuring a 3.96 mm pitch and arranged with 8 contacts in 2 rows. This connector housing is designed for wire-to-wire applications, providing secure and reliable electrical connections in electronic assemblies.

Manufactured from robust polyamide material, the housing offers excellent insulation and mechanical durability. It supports HL series crimp style connectors, making it suitable for varied industrial and commercial electronic uses.

The connector housing incorporates low insertion force contacts along with a housing lance and inner housing lock. Secondary retainers and panel lock construction provide positional assurance, enhancing connection stability during use.

With a straight connector orientation and compact dimensions of length 23.8 mm and width 14.2 mm, this female housing suits tight PCB layouts and electronic component assemblies.

This component is essential for applications requiring secure, modular, and reliable wire-to-wire interfacing in industries such as electronics manufacturing, laboratory equipment assembly, and industrial automation systems.

The housing is made from durable polyamide for reliable insulation and mechanical strength. It accommodates HL series crimp style wire-to-wire connectors enhancing modular connectivity. Features low insertion force contacts and inner housing lock ensuring secure electrical connection.

Includes housing lance, secondary retainers, and panel lock construction for positional assurance. Compact dimensions: 23.8 mm length and 14.2 mm width allow for space-efficient PCB design. The connector is female gender type suitable for wire housing applications in electronic assemblies.

No specific standards or approvals apply to this connector housing model. Ideal for industrial, electronic component manufacturing, and maintenance applications.
