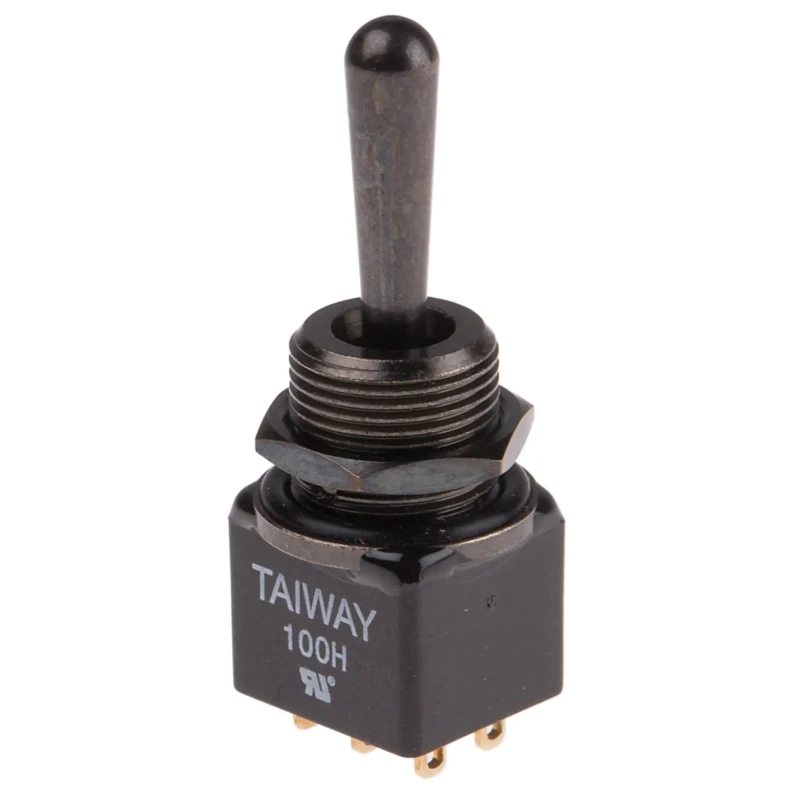

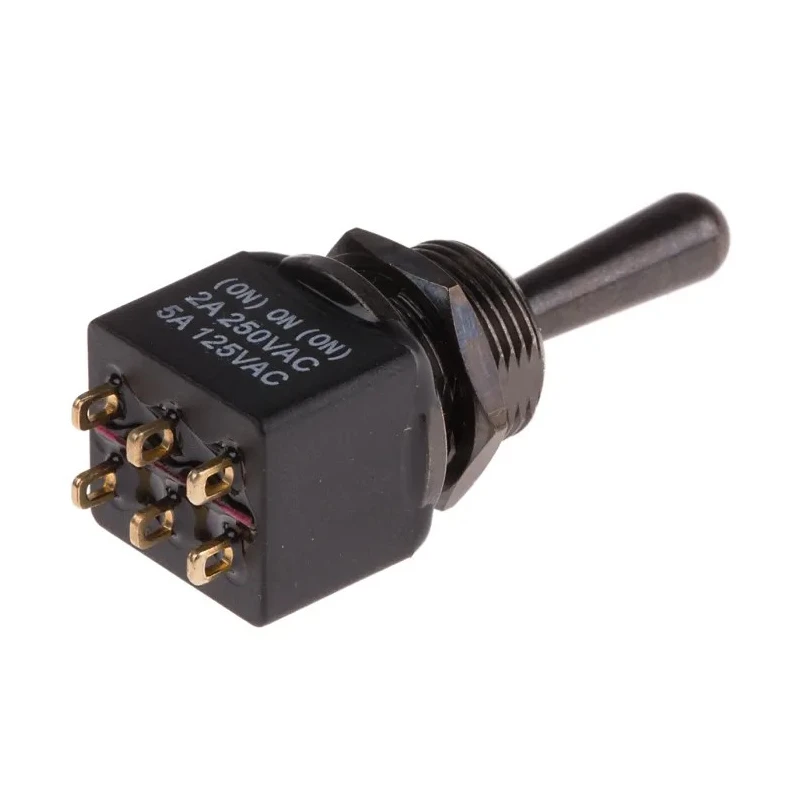

RS PRO Toggle Switch PCB Mount On-On-On DPDT Solder Terminal 28 V DC 250 V AC 820-0526

RS PRO 820-0526 is a high-performance toggle switch designed for PCB mounting with On-On-On double pole double throw (DPDT) operation. It supports contact voltages of 28 V DC and 250 V AC, accommodating various electrical applications. The switch features solder terminals for secure and reliable connections on printed circuit boards.

This miniature toggle switch is fully sealed to IP67 standard, providing superior protection against dust and water, making it suitable for harsh industrial environments. Its double shell case construction enhances mechanical strength and electrical insulation. The actuator is crafted from brass and measures 18 mm in length, delivering robust tactile feedback during operation.

The switch offers excellent electrical capabilities, suitable for low-level switching down to 10 mA at 50 mV, as well as power applications up to 5 A at 250 VAC. It operates reliably across a temperature range from -30°C to +85°C, supporting diverse environmental conditions. The mechanical life is rated at 50,000 cycles, ensuring long-term operational durability.

With compact dimensions of 40.2 mm height, 16 mm length, and 14.48 mm width, the toggle switch is ideal for space-constrained applications. It meets the MIL-STD-202F standards, underpinning its quality and ruggedness.

Common industrial uses include electronics manufacturing, automation controls, electrical equipment, instrumentation, and instrumentation panels requiring reliable switch components.

The switch features a sealed IP67 rating ensuring protection against dust and water ingress. Actuator is made of brass with a length of 18 mm for robust operation. Operates reliably within temperature ranges from -30°C to 85°C.

Switch configuration is double pole double throw (DPDT) with On-On-On operation. Mounting type is PCB, and terminals are solder type for strong connections. Mechanical life expectancy of the switch is up to 50,000 cycles ensuring long-term durability.

Compact size with dimensions 40.2 mm height, 16 mm length, and 14.48 mm width. Conforms to MIL-STD-202F standards for reliability and durability.

This RS PRO Toggle Switch is a dependable choice for high-quality electronics assemblies and industrial control systems. Browse the complete range of RS PRO switches for further options at EnvMart.
