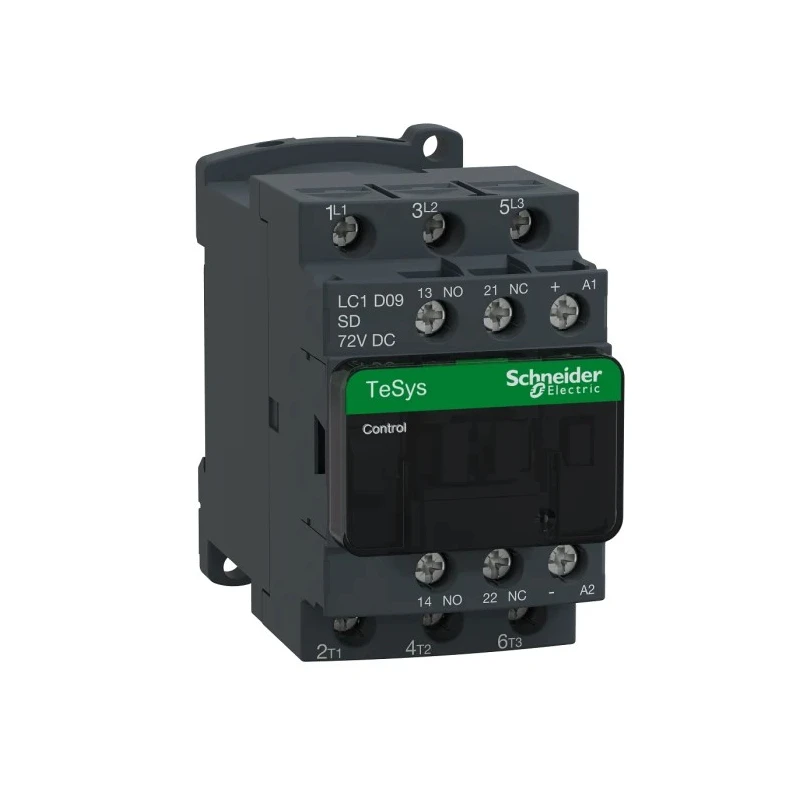

Schneider Electric LC1D09SD Contactor, 72V DC Coil, 3-Pole, 9 A, 4 kW, 3 NO, 600V AC LC1D09SD

Schneider Electric LC1D09SD Contactor is a high-quality 3-pole contactor equipped with a 72V DC coil designed for reliable motor control applications. It supports contact currents up to 9 A and power switching up to 4 kW, making it ideal for various industrial electrical control setups.

This contactor operates at a contact voltage of 600V AC and features 3 normally open (NO) power contacts along with built-in auxiliary contacts configured as one normally open and one normally closed. The built-in auxiliary contacts are mirror certified enhancing reliability in control circuits.

The product is designed for mounting on DIN rail or screw fixing, with a compact width of 45 mm, length of 77 mm, and depth of 95 mm, facilitating space-saving installations. It functions effectively across a wide temperature range from -5°C to 60°C, suitable for demanding industrial environments.

The LC1D09SD is compliant with numerous international standards such as IEC 60947-4-1, UL 508, CSA C22.2 No 14, CCC, EAC, and Marine certifications, reflecting its global quality and safety acceptance. It also meets environmental standards such as RoHS and REACh under Schneider Electric’s Better World initiatives, emphasizing sustainability and reduced environmental impact.

It provides excellent electrical endurance with an operating rate of up to 3600 cycles per hour. The screw clamp terminals ensure secure and reliable connections for both load and auxiliary circuits.

This contactor is suitable for motor control applications including squirrel cage motors, pumps, compressors, lifts, escalators, conveyors, and air conditioning units. It accommodates high breaking capacity (SCCR) when used alongside appropriate circuit breakers or fuses, ensuring protection and safety in operation.

Set includes the Schneider Electric LC1D09SD contactor with a 72 V DC coil and integrated protective features such as a transient suppressor module. The product's compact dimensions and high performance make it suitable for incorporation into various automation and control systems in industrial, manufacturing, HVAC, and commercial settings.

Operates at 600V AC contact voltage for versatile electrical systems. Power rating of 4 kW suitable for switching motors and industrial loads. Includes 2 auxiliary contacts, one normally open and one normally closed, for control signalling.

Compact design with DIN rail mount facilitates easy installation. Durable in temperatures ranging from -5°C to 60°C. Screw clamp terminals ensure secure connections. Compliant with IEC, UL, CSA, CCC, EAC, and Marine standards.

Better World product with RoHS/REACh compliance and designed for disassembly. Suitable for motor starters and various industrial automation applications. Explore more Schneider Electric Contactors and automation solutions on EnvMart for industrial and commercial electrical control needs.
