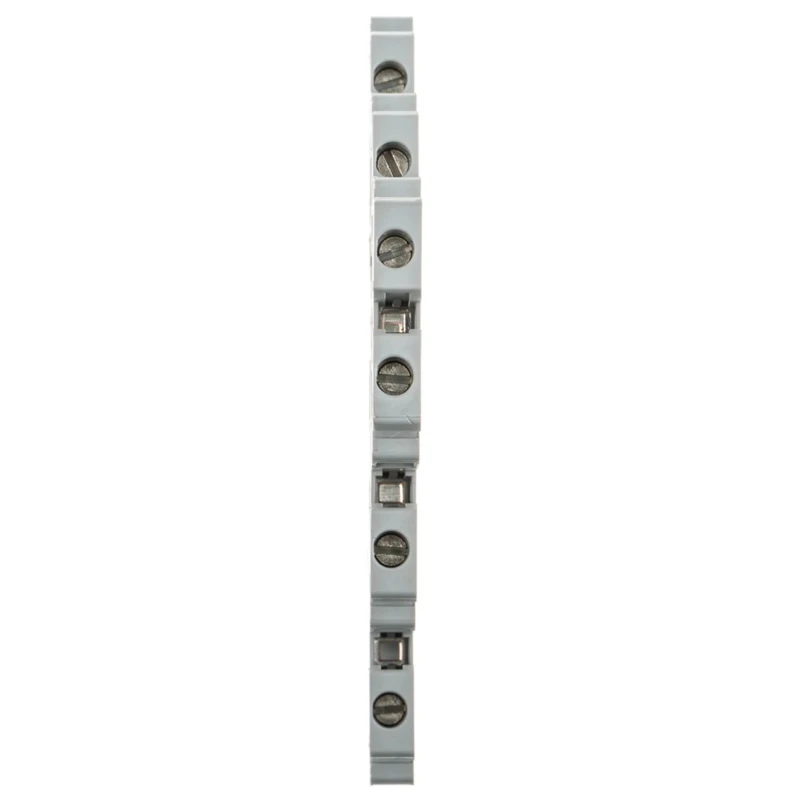

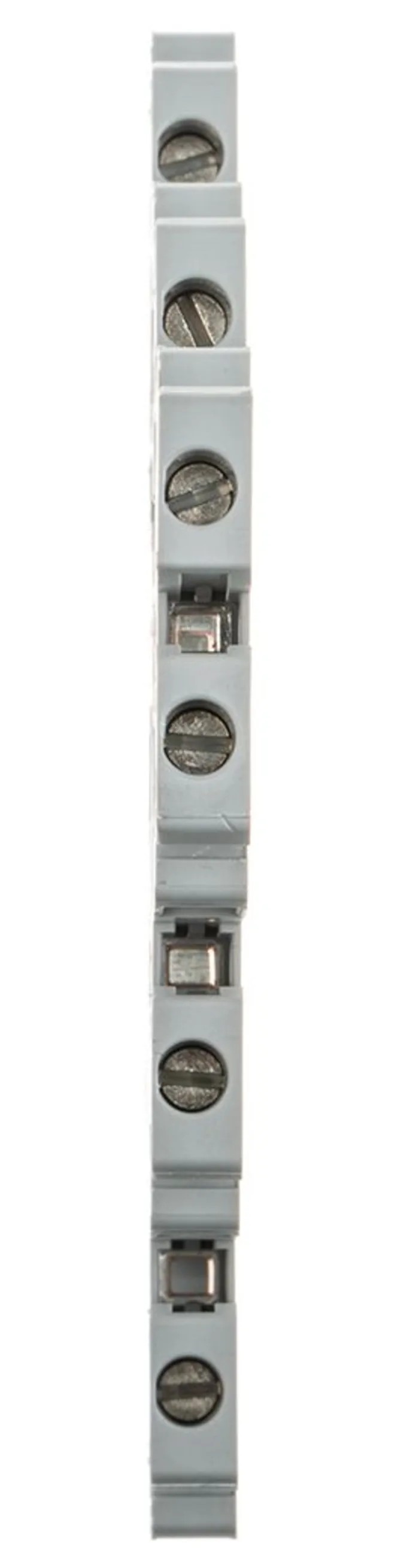

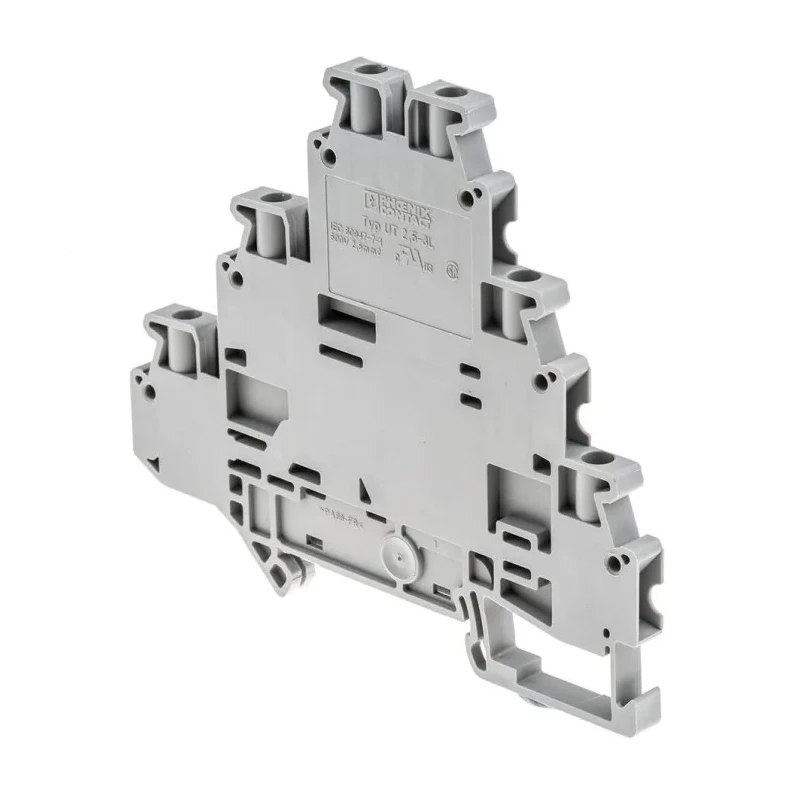

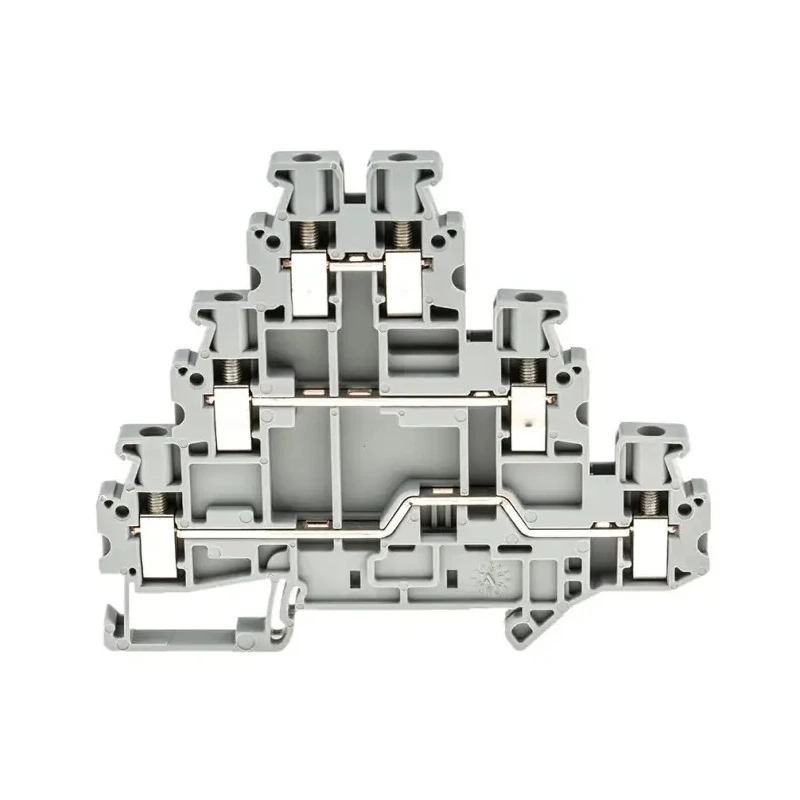

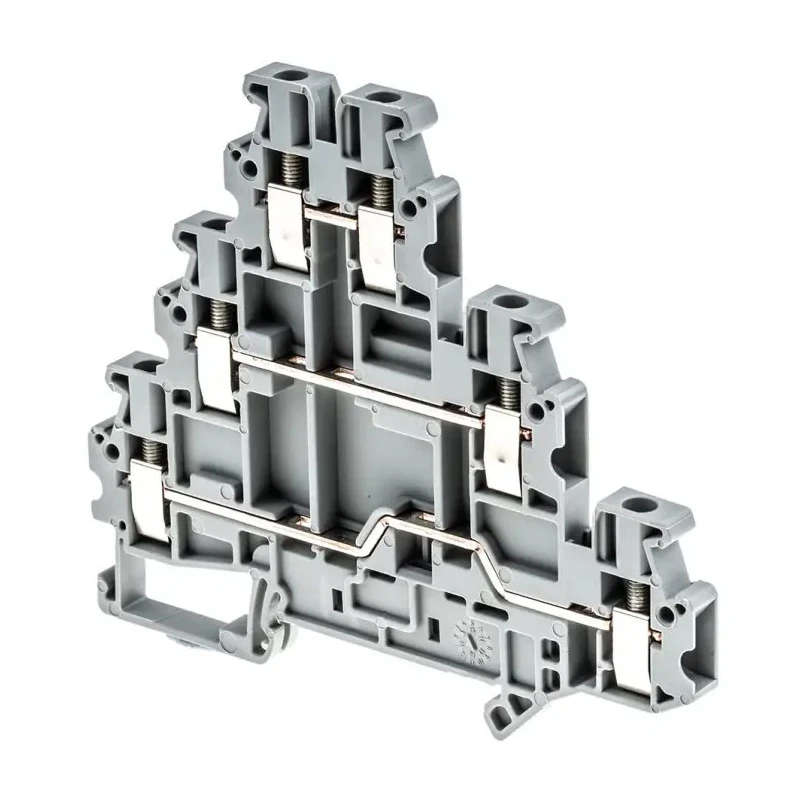

Phoenix Contact Multi Level Terminal Block Grey 3-Level, 19A Screw Termination, 500V UT 2.5-3L 3214259
Specifications
| Country of Origin | Poland |
|---|---|
| Voltage | 500V |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 3214259 |
| Series | UT 2.5-3L |
| Termination Type | Screw |
| Maximum Operating Temperature | 105°C |
| Number of Levels | 3 |
| Number of Positions | 1 |
| Sub Type | Multi-Level |
| Minimum Operating Temperature | -60°C |
| Standards/Approvals | CSA Certified |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 12AWG |
| Terminal Block Current | 19A |
Key Features
- This terminal block features a compact three-level design to enhance wiring density in limited space.
- It supports a wire size range from 26AWG minimum to 12AWG maximum for versatile connectivity.
- The screw termination type enables secure and quick installation of solid or stranded conductors without ferrules.
- It operates reliably over a wide temperature range from -60°C to 105°C for use in harsh environments.
- Constructed with grey polyamide insulation, the block offers excellent electrical safety and CSA certification compliance.
- The block weighs approximately 25 grams and measures 5.2mm in width, 90mm length, and 77.5mm depth for compact panel mounting.
- This product is ideal for industrial automation, railway, and oil and gas applications requiring safe and neat wire arrangements.
Product Description
The Phoenix Contact 3214259 UT 2.5-3L multi level terminal block is designed for efficient and secure wiring in industrial and automation systems. This screw-type terminal block is grey in colour and contains three levels, enabling multiple wire connections within a compact footprint.
Its robust polyamide (PA) insulation ensures electrical safety and resistance to shocks. The screw termination allows connection of solid and stranded conductors ranging from 26AWG to 12AWG without requiring ferrules. It is CSA certified and rated for medium-voltage applications up to 500V and a current rating of 19 amps.
With a surge voltage rating of 6kV and an operating temperature range from -60°C to +105°C, this terminal block performs reliably even in harsh environmental conditions such as oil and gas automation or railway systems.
Compact dimensions of 5.2mm width, 90mm length, and 77.5mm depth make it suitable for small enclosure installations where space optimization is critical. Each terminal features function shafts for fast potential distribution and labelling areas for easy identification without obstructing connections.
This terminal block maximizes wiring density while maintaining safe and neat terminal arrangements. It is ideal for use in industrial automation, railway, and oil and gas sectors seeking reliable wire management solutions.
The robust polyamide insulation offers self-extinguishing UL94V-0 rated material for fire safety. The product offers convenience through screw termination suitable for solid and stranded conductors without ferrules. It is certified to CSA standards, validating its quality and safety for electrical installations.
Phoenix Contact’s UT multi-level block series delivers reliable, compact, and efficient solutions for industrial wiring applications. Choose this 3214259 terminal block for demanding medium-voltage wiring projects requiring compact and secure connections.
Explore our Electronics & Electricals category for more industrial terminal blocks and DIN rail components available on EnvMart.
Explore more products in our DIN Rail Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this terminal block is 500V.
This model has a current rating of 19 amps.
It supports a wire size range from 26AWG minimum to 12AWG maximum.
The terminal block measures 5.2mm in width, 90mm in length, and 77.5mm in depth.
It operates reliably over a wide temperature range from -60°C to 105°C.
This terminal block uses a screw termination type, allowing for secure connections of solid or stranded conductors without ferrules.
Yes, this terminal block is CSA certified, ensuring compliance with safety standards.
The insulation is made of grey polyamide, which provides excellent electrical safety.
It is ideal for industrial automation, railway, and oil and gas applications requiring safe and neat wire arrangements.
The terminal block weighs approximately 25 grams.
This terminal block features a compact three-level design, allowing for multiple wire connections.
The terminal block is manufactured in Poland.
