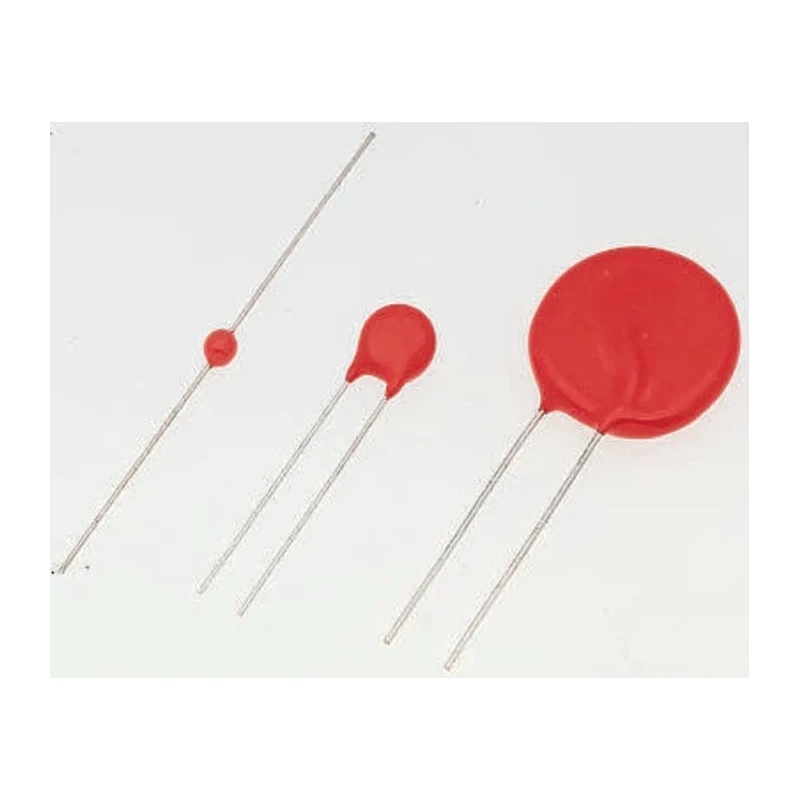

Littelfuse ZA Metal Oxide Varistor Radial Leaded Ceramic Disc 7 nF Capacitance 10 A Clamping Current 1240 V V39ZA6P
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 17mm |
| Brand | Littelfuse |
| Material | Metal |
| THICKNESS | 5mm |
| Length | 36mm |
| Model | V39ZA6P |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Mount Type | Radial |
| Series | ZA |
| Energy Rating | 80J |
| Capacitance | 7nF |
| Minimum Operating Temperature | -55°C |
| Maximum dc Voltage | 31V dc |
| Standards/Approvals | UL 1449, RoHS, MIL-STD-202, Halogen-Free |
| Package/Case | Radial Leaded Ceramic Disc |
| Pin Count | 2 |
| Termination Style | Radial Lead |
| Lead Pitch | 8.5mm |
| Maximum AC Voltage | 25V ac |
| Clamping Voltage VC | 1240V |
| Clamping Current | 10A |
| Maximum Surge Current | 1kA |
| Varistor Voltage | 39 V |
Key Features
- Features a capacitance of 7 nanofarads for effective transient absorption.
- Clamping voltage rated at 1240 volts for high voltage surge handling.
- Maximum clamping current of 10 amperes suitable for protection applications.
- Radial lead termination providing secure board mounting and durability.
- Compact dimensions of 36mm length, 17mm diameter, and 5mm thickness.
- Operating temperature range down to -55°C ensuring reliability under harsh conditions.
- Complies with UL 1449, RoHS, MIL-STD-202 standards enhancing quality and safety.
- Constructed from high-quality metal oxide ceramic materials for durability.
Product Description
Littelfuse V39ZA6P Metal Oxide Varistor is a radial leaded ceramic disc designed to protect low and medium-voltage circuits from transient voltage surges. This varistor features a 7 nF capacitance with a clamping voltage of 1240 volts and a clamping current rating of 10 amperes, making it ideal for safeguarding sensitive electronic components and maintaining circuit integrity.
Constructed with metal oxide technology and radial lead terminations, this device ensures reliability and easy integration onto circuit boards. Its compact size of 36 mm length, 17 mm in diameter, and 5 mm thickness allows space-efficient placement in various electronic assemblies.
The V39ZA6P operates reliably within a broad temperature range down to -55°C, suitable for diverse industrial and commercial environments. It meets several industry standards including UL 1449, RoHS compliance, MIL-STD-202 testing, and is halogen-free, underscoring its safety and environmental compatibility.
Typical applications encompass motor control circuits, telecommunications equipment, automotive systems, solenoid protection, and power supply designs requiring dependable transient voltage suppression. This Varistor is packaged in tape and reel format to support automated soldering and assembly lines.
Capacitance of 7 nF supports efficient energy absorption. Radial leaded ceramic disc form factor for robust mounting. High energy rating of 80 joules for durable surge protection. Compliant with global safety and environmental standards.
Rated for up to 10 amperes clamping current and maximum 1240 V surge tolerance. Maximum AC voltage of 25 V and DC voltage of 31 V for circuit compatibility. Lead pitch is 8.5 mm for precise PCB placement. Designed for long term reliability in industrial and consumer electronics.
Explore our extensive range of surge protection components to find compatible devices for your application at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this model is rated at 1240 volts, which allows it to handle high voltage surges effectively.
It features a capacitance of 7 nanofarads, which supports efficient energy absorption during transient events.
The maximum clamping current for this unit is 10 amperes, suitable for various protection applications.
This model has a length of 36 mm, a diameter of 17 mm, and a thickness of 5 mm, allowing for compact placement in electronic assemblies.
It operates reliably within a temperature range down to -55°C, making it suitable for harsh conditions.
The device complies with UL 1449, RoHS, MIL-STD-202 standards, and is halogen-free, ensuring quality and safety.
The energy rating of this model is 80 joules, providing durable surge protection.
It is packaged in tape and reel format, which supports automated soldering and assembly processes.
The maximum AC voltage is 25 volts, and the maximum DC voltage is 31 volts, ensuring compatibility with various circuits.
This model features radial lead terminations, providing secure mounting on circuit boards.
Typical applications include motor control circuits, telecommunications equipment, automotive systems, and power supply designs requiring transient voltage suppression.
The lead pitch is 8.5 mm, allowing for precise placement on printed circuit boards (PCBs).
