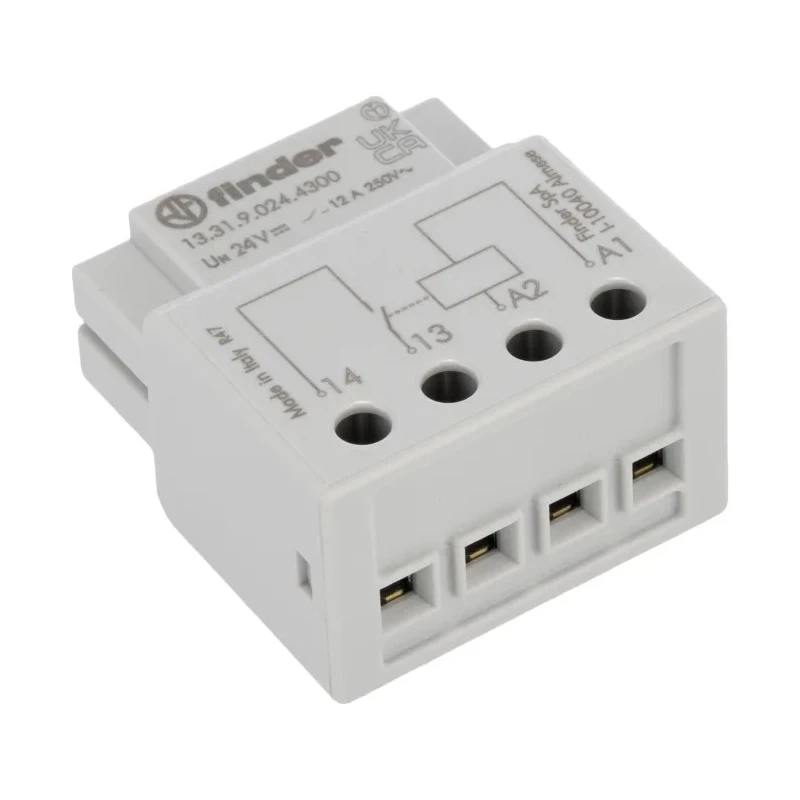

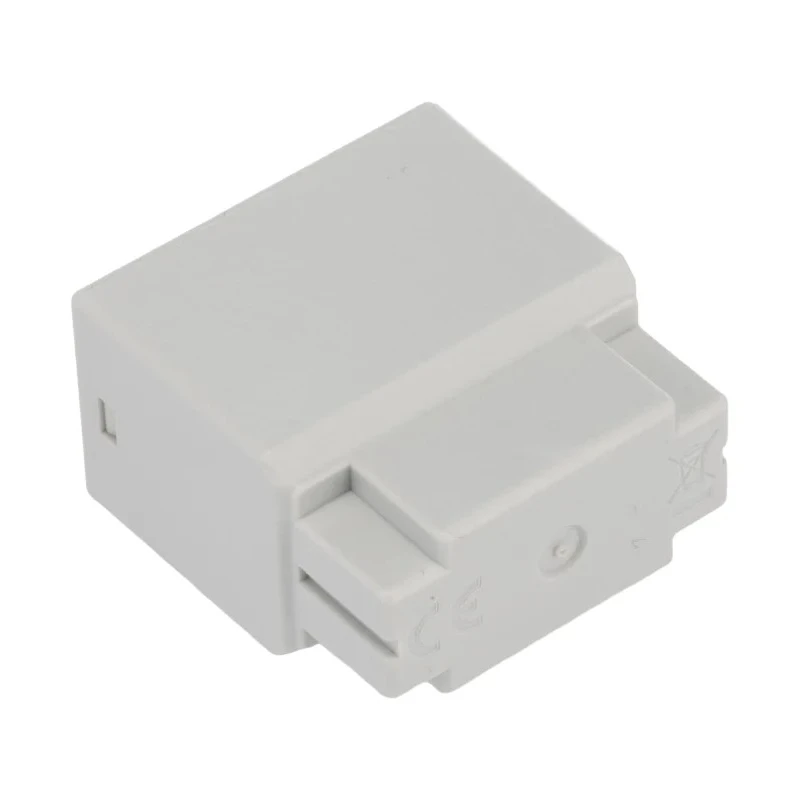

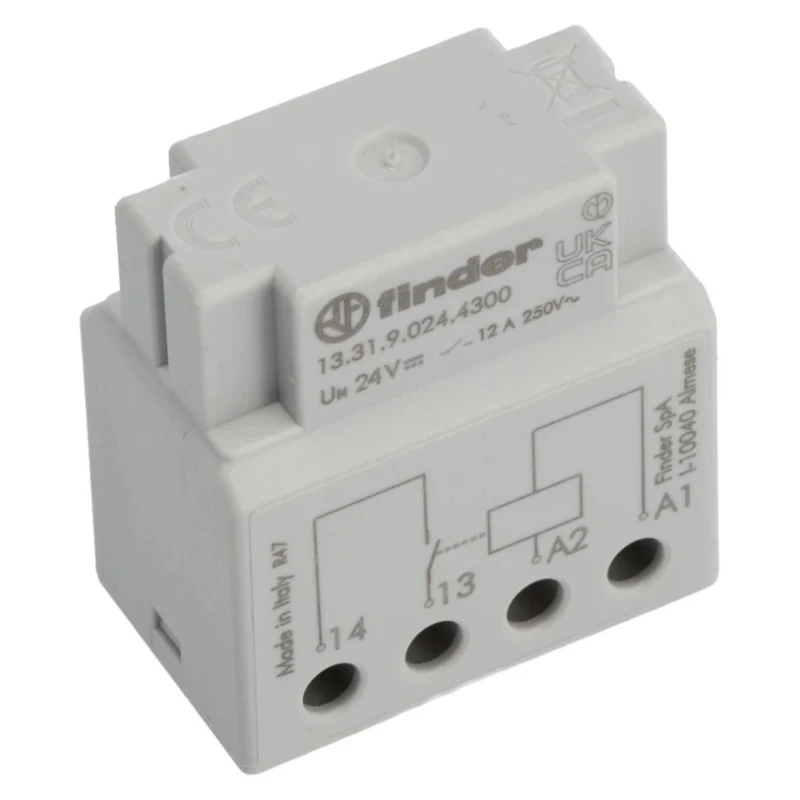

Finder Switch Box Power Relay 24V DC Coil Voltage 12A Switching Current SPST 13.31.9.024.4300

Finder 13.31.9.024.4300 switch box power relay is a high-performance electrical component engineered for industrial, commercial, and automation applications requiring reliable switching capability. Featuring a 24V DC coil, this relay delivers stable activation and is capable of managing switching currents up to 12 amps. Designed with a SPST (single-pole single-throw) contact configuration, it offers straightforward on/off control functions commonly used in lighting and automation systems.

With compact dimensions of 37 mm in length, 22.7 mm in width, and 39 mm in height, it fits conveniently within standard switch boxes. The relay's silver alloy contacts provide durability and longevity, ensuring consistent contact conductivity under repeated cycling. This unit can switch AC and DC voltages of up to 250 volts, making it versatile for a range of electrical circuits.

The maximum operating ambient temperature of 60°C allows the relay to function reliably in demanding environments including industrial and mechanical automation settings. Energy-efficient coil design limits power consumption to 400mW, contributing to low operational costs. The coil and contacts are insulated to withstand 2 kV, enhancing user safety and system integrity.

Installation is simplified with screw terminal connections that facilitate secure and stable wiring. The relay is compliant with EAC and CE standards, reflecting its adherence to quality and safety regulations. Ideal applications include interposing lighting controls for bathrooms, offices, bedrooms, and living rooms, as well as mechanical and electrical automation systems incorporating incandescent or LED lighting loads.

This product offers an expected operational life of approximately 70,000 cycles, ensuring dependable performance for continuous switching tasks. Overall, the Finder 13.31.9.024.4300 power relay stands out as a robust, efficient component suited for varied electrical control environments.

Operates with a coil voltage of 24 volts DC for stable performance. Supports switching currents up to 12 amps, suitable for demanding applications. Single-pole, single-throw (SPST) contact configuration for versatility. Compact dimensions fitting switch boxes: 37mm length, 22.7mm width, and 39mm height.

Durable silver alloy contacts ensure extended operational lifespan. Capable of switching AC and DC voltages up to 250V. Maximum operating temperature of 60°C allows use in elevated temperature environments. Coil power consumption is low at 400mW for energy efficiency.

Insulated with 2 kV between coil and contacts for enhanced safety. Designed for easy mounting using screw terminal type. Find more Power Relays and electrical automation products on EnvMart for industrial, commercial, and residential applications.
