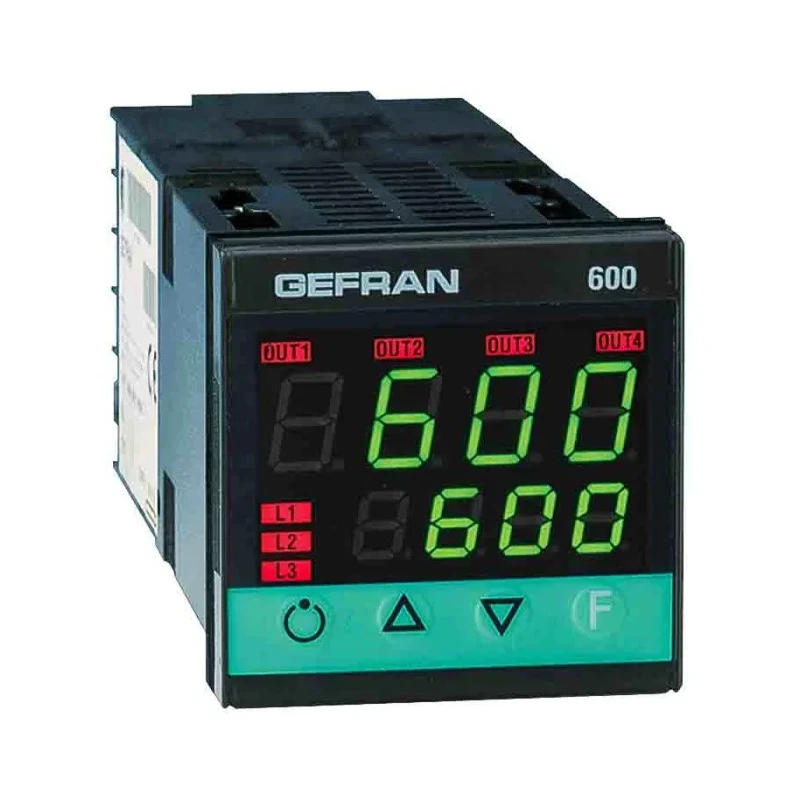

Gefran 600 Panel Plug-in PID Temperature Controller 2 Output Logic Relay 240V Self-Tuning Heat/Cool F000550/ 600-R-D-H-R-1

Gefran F000550/ 600-R-D-H-R-1 PID Temperature Controller is a high-accuracy, microprocessor-based control device designed for industrial temperature regulation tasks. Featuring a robust plug-in panel mount format and a 48x48 mm cutout, it fits standard industrial panels and offers a frontal IP65 rating courtesy of the Lexan membrane faceplate, protecting against dust and moisture ingress.

This controller supports two output types combining logic and relay functions with relay rating up to 5A at 250Vac/30Vdc. It operates on 240V supply and can handle 3-phase controlled power, making it suitable for complex industrial heating and cooling setups.

Equipped with advanced self-tuning PID algorithms including Pb-Dt-It functions, it facilitates optimal temperature control with minimal manual intervention. The device supports heat and cool action modes and additionally offers on-off control to accommodate a wide range of process requirements.

Communication interfaces include an optically isolated RS485 serial port that supports both Gefran Cencal and Modbus RTU protocols, enabling seamless integration within larger automation systems. The controller features diagnostic capabilities such as short circuit detection and heater break alarms to ensure reliable and safe operation.

Input flexibility is high, accepting signals from thermocouples, PT100, PT1000 sensors, as well as multiple voltage and current ranges (4-20 mA, 0-10 V, etc.), allowing it to interface with diverse sensor types.

The clear LED display consists of two green 7 mm, 4-digit indicators allowing operators to monitor setpoints and process values with ease. Industrial certifications include compliance with CE standards and electromagnetic compatibility directives applicable across European installations.

Main industrial applications encompass ovens, extrusion lines, packaging machinery, cooling plants, polymerization plants, and heat punches, among others. The control unit supports soft-start and bumpless manual/automatic functions to protect process integrity.

Supports 2 outputs combining logic and relay control for versatile operation. Operates with 240V supply and 3 controlled phases. Self-tuning PID control with heat and cool actions for precise temperature regulation. Panel plug-in mount with IP65 frontal protection rating.

RS485 communication supporting Gefran Cencal and Modbus protocols. Diagnostics include probe short-circuit, heater break alarms, and self-diagnostics. Compatible with multiple input types including thermocouples and PT sensors.

Clear dual 4-digit green LED display. Manufactured in Italy, compliant with European safety and EMC standards. Explore more Temperature Controllers and industrial automation solutions in the EnvMart catalog to enhance your process control and monitoring capabilities.
