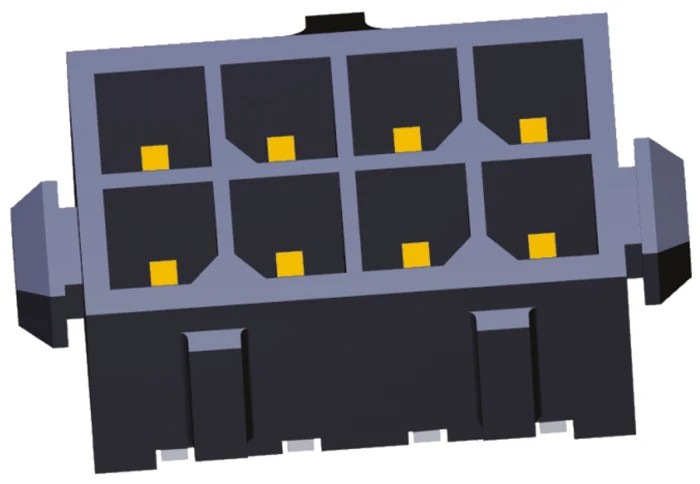

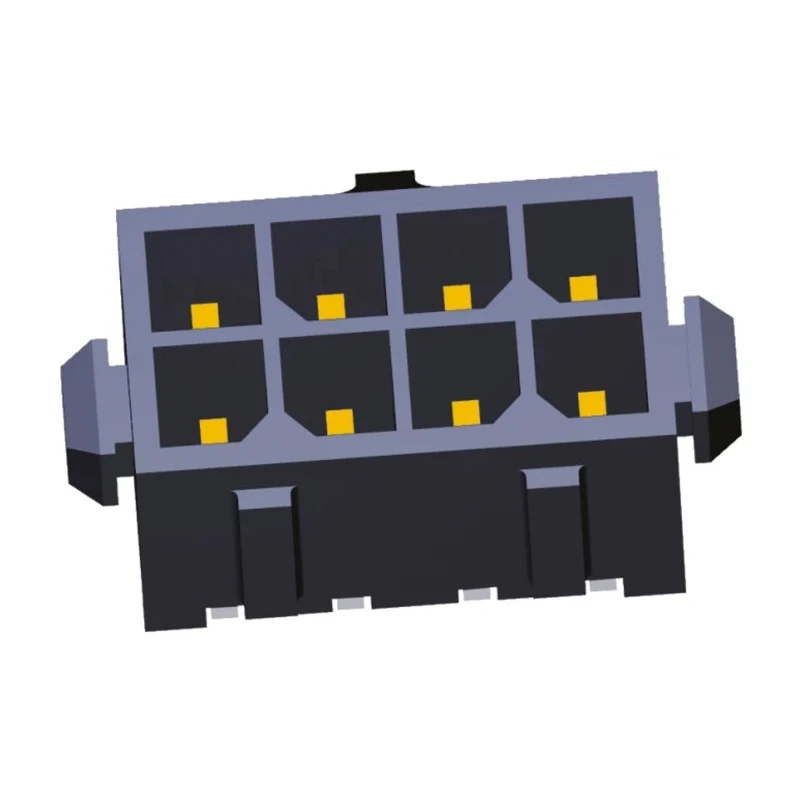

TE Connectivity Micro MATE-N-LOK Series Straight Through Hole PCB Header 8 Contacts 3 mm Pitch 2 Row Shrouded 3-794632-8
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Micro MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.18mm |
Key Features
- This PCB header is designed with a straight orientation for effective wire-to-board connection.
- The housing is made from durable nylon material, ensuring electrical insulation and mechanical protection.
- Contacts are brass with gold plating for reliable conductivity and corrosion resistance.
- It supports a maximum operating current of 5A and voltage rated at 250V.
- Features polarization and positive lock tabs to prevent mis-mating and ensure secure cable connector attachment.
- Tail pins measure 3.18 mm in length for secure solder connections on the PCB.
- Designed for operating temperature range from -65°C to 105°C, suitable for diverse industrial applications.
- The connector is through hole mounted with solder termination type ensuring stable board retention.
Product Description
TE Connectivity 3-794632-8 Micro MATE-N-LOK Series Straight Through Hole PCB Header is a high-reliability connector designed to provide robust wire-to-board connections with 8 electrical contacts arranged on a 3 mm pitch in two rows.
Manufactured with a black nylon housing rated 94V-0 for flame retardancy, the header features polarization to prevent incorrect mating and positive lock tabs securing the header to mating cable connectors. The contacts are made of brass and plated with gold, offering excellent conductivity and corrosion resistance for long-term durability.
This connector supports a maximum current of 5A and a voltage rating of 250V, suitable for a wide range of industrial and commercial electronic applications. Tail pins are 3.18 mm in length, designed for through hole solder mounting, providing strong mechanical and electrical connection to PCBs.
The Micro MATE-N-LOK connectors withstand operating temperatures from -65°C to 105°C, ensuring reliable performance in harsh environments. The shrouded design and male contact gender improve safety by preventing accidental disconnections and mis-mating.
Applications for this PCB header include household appliances, lighting systems (including LED lighting where low profile options are available), factory automation equipment, data storage devices, and security systems, among others.
This connector series is IR reflow process compatible and comes in vertical and right-angle configurations for different PCB layout requirements. Polarization and positive locking features improve reliability during assembly and in service.
Boardlocks and solder tail retention features secure the header on the PCB, preventing loosening under vibration. The robust mechanical and electrical design ensures high durability and performance in demanding industrial environments.
Choose TE Connectivity Micro MATE-N-LOK PCB Headers for trusted connections in electronics manufacturing and assembly. Explore the extensive range of electronic components and connectors at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum operating current of 5A and is rated for a voltage of 250V.
It features a pitch of 3 mm and has 8 electrical contacts arranged in two rows.
The housing is made from nylon, while the contacts are constructed from brass and plated with gold for conductivity and corrosion resistance.
This connector operates within a temperature range of -65°C to 105°C, making it suitable for various industrial applications.
It is designed for through hole mounting with a solder termination type, ensuring stable board retention.
The connector includes polarization and positive lock tabs that secure the header to mating cable connectors, preventing incorrect mating.
The tail pins measure 3.18 mm in length, designed for secure solder connections on the PCB.
It is suitable for various applications including household appliances, lighting systems, factory automation equipment, and security systems.
This model features a male contact gender, which enhances safety by preventing accidental disconnections.
Yes, the Micro MATE-N-LOK series comes in both vertical and right-angle configurations to accommodate different PCB layout requirements.
The housing is rated 94V-0 for flame retardancy, ensuring safety in various applications.
The country of origin for this PCB header is China.
