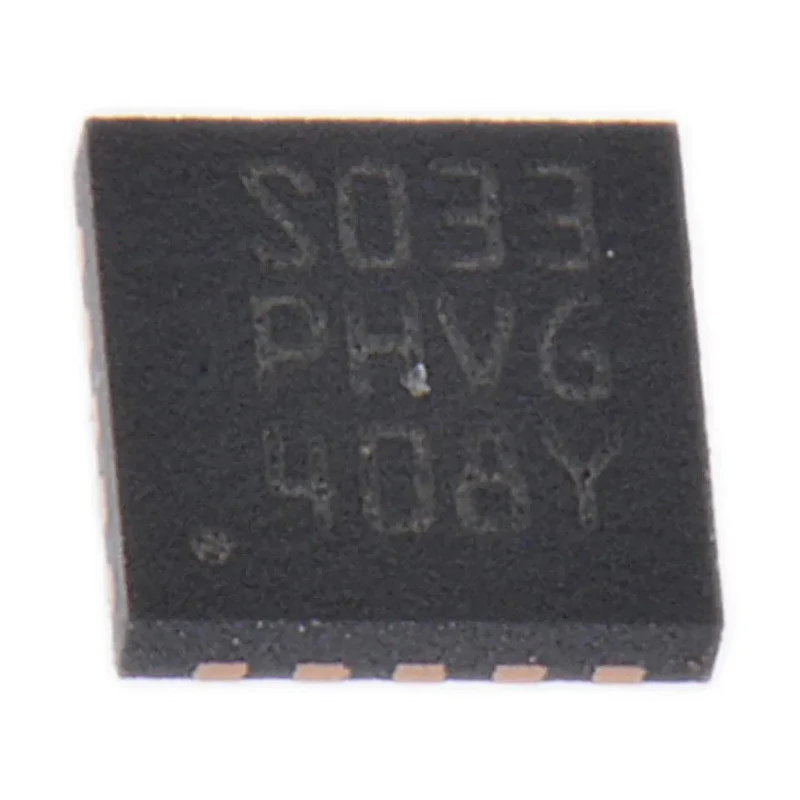

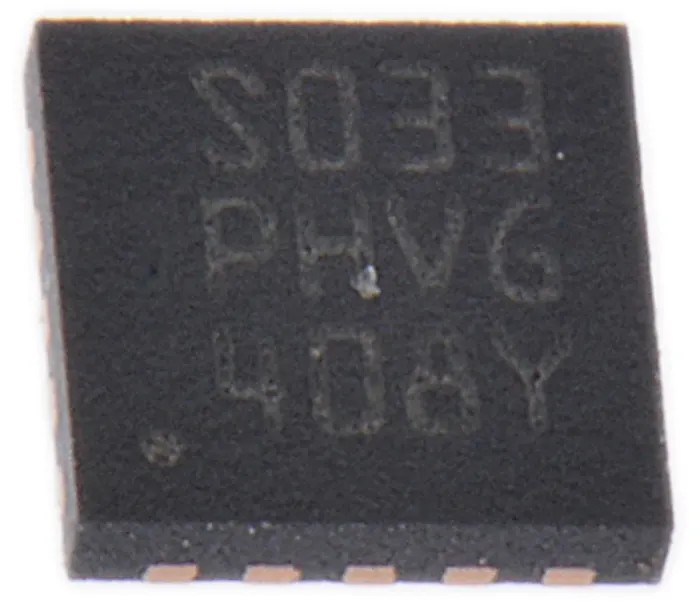

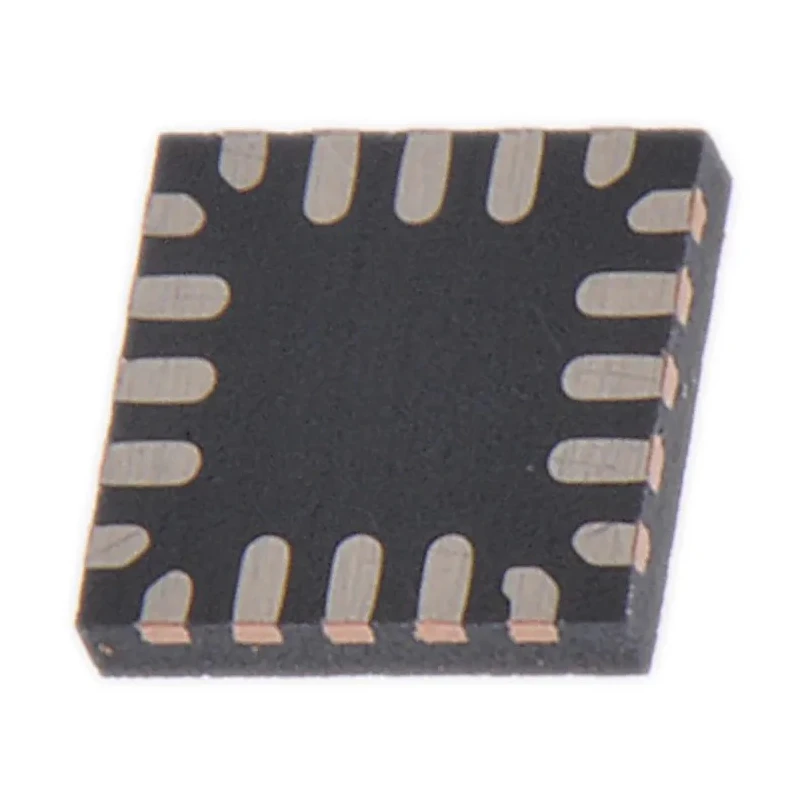

STMicroelectronics 8-Bit STM8S Microcontroller 16 MHz 8kB FLASH 20-Pin UFQFPN STM8S003F3U6TR

STMicroelectronics STM8S003F3U6TR is a high-performance 8-bit STM8 microcontroller designed for versatile industrial and embedded applications. It features a 3-stage pipeline CISC architecture core operating up to 16 MHz and integrates 8 kB of FLASH memory and 1 kB of RAM, enabling efficient program execution and data storage.

This device is housed in a compact 20-pin UFQFPN surface-mount package with dimensions of 3 mm length, 3 mm width, and a height of 550 μm, making it ideal for space-constrained designs. It supports up to 28 programmable I/O pins, facilitating flexible hardware interfacing in control and monitoring systems.

With five 10-bit ADC channels and three timers, the microcontroller supports advanced embedded control functionalities. Its operating voltage range spans from 2.95 V minimum to 5.5 V maximum, allowing robust operation in varied electrical environments. The device’s maximum power dissipation is 330 mW, ensuring stable thermal operation under typical loads.

Engineered for reliability, the STM8S003F3U6TR operates efficiently between -40°C to +85°C, making it suitable for demanding industrial, laboratory, and commercial electronics applications. It complies with RoHS standards to meet environmental regulations.

This microcontroller series builds upon the STM8 platform, known for delivering up to 20 MIPS at 24 MHz, and is equipped with integrated peripherals such as D/A converters, comparators, serial interfaces, and optional display controllers, enabling complex embedded system designs.

Set includes a single STM8S003F3U6TR microcontroller supplied on a reel, ready for placement on automated assembly lines to improve manufacturing efficiency and product reliability.

Advanced 8-bit STM8 core with CISC architecture provides efficient processing. 16 MHz maximum clock frequency supports moderate speed embedded applications. 8 kB FLASH memory and 1 kB RAM for program and data storage. Five 10-bit ADCs and three timers for versatile signal processing.

20-pin UFQFPN surface-mount package ensures compact design. Operates from 2.95 V to 5.5 V supply voltage suitable for varied power sources. Supports 28 programmable I/O pins for hardware interfacing. Wide operating temperature range from -40°C to +85°C for industrial use.

Maximum power dissipation of 330 mW for reliable thermal operation. RoHS compliant for environmentally safe electronics manufacturing. Explore the wide range of STMicroelectronics STM8S Microcontrollers on EnvMart, ideal for embedded systems and industrial control applications.
