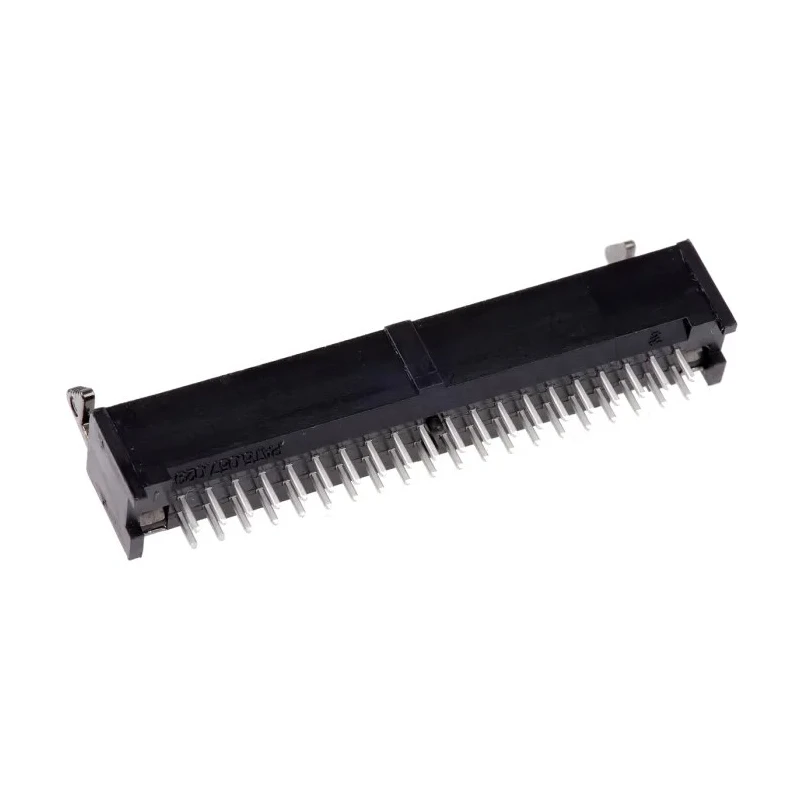

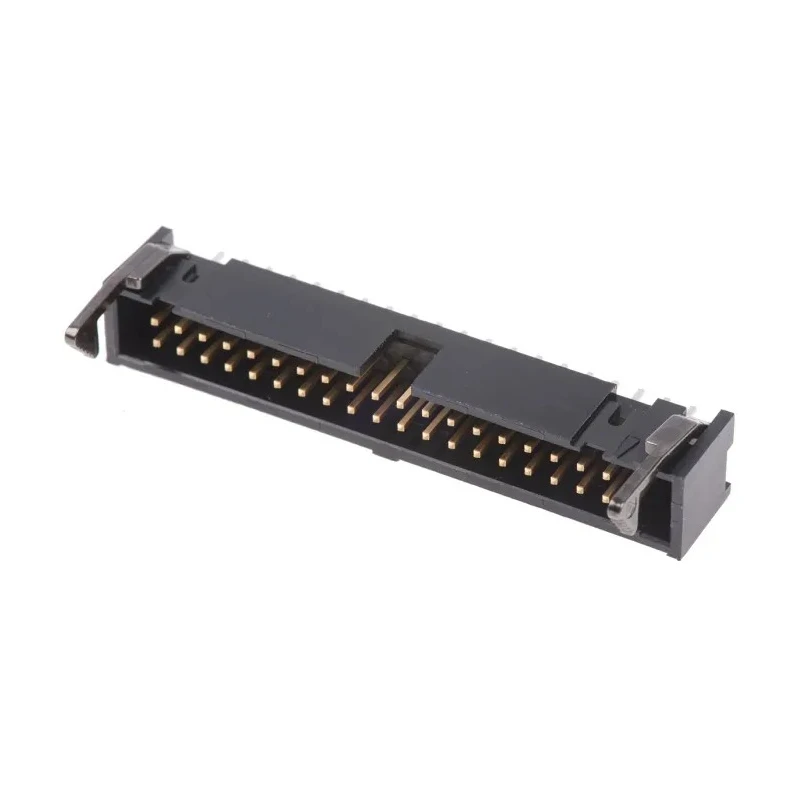

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 40 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 1-1761608-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Low profile design ideal for tight PCB layouts.
- Shrouded, straight through hole with military and centre polarization.
- Gold plated phosphor bronze contacts ensure conductivity and corrosion resistance.
- Ejector latches provide secure mating and easy removal from mating IDC ribbon cable receptacles.
- Mount type is through hole with solder termination for durable attachment.
- Connector system supports wire-to-board connections.
- Operates reliably between -65°C and 105°C ambient temperatures.
- Suitable for PCs, business equipment, medical devices, storage, networking, industrial controls, appliances, and electrical testing.
Product Description
TE Connectivity 1-1761608-3 AMP-LATCH Series Straight Through Hole PCB Header is a high-quality connector component designed for printed circuit boards. Featuring 40 male contacts arranged in 2 rows with a 2.54 mm pitch, this shrouded header provides a low profile and robust wire-to-board connection. Its through hole mounting with solder termination ensures reliable mechanical and electrical connection on PCB assemblies.
The header's phosphor bronze contacts, plated with gold, offer excellent electrical conductivity and corrosion resistance. Operating voltage is rated at 250 V with a current capacity of 1 A, suitable for many industrial and commercial electronics applications. The component supports operating temperatures from -65°C to 105°C, making it durable for harsh environments.
This AMP-LATCH header series integrates military and center polarization for precise mating alignment, coupled with ejector latches that enable both secure locking and easy disconnection from IDC ribbon cable connectors. The availability of long and short latch options provides flexibility for different installation requirements.
These headers find applications across various sectors including computers, business and medical equipment, storage systems, networking hardware, industrial automation controls, household appliances, and electrical testing devices.
Low profile design supports compact PCB layouts. Robust ejector latches ensure secure connection with easy removal. Gold plating on contacts for reliable signal transmission. Wide temperature range for industrial and commercial environments.
Through hole solder termination for strong mechanical attachment. Compatible with AMP-LATCH ribbon cable receptacle connectors.
The AMP-LATCH Series PCB Headers from TE Connectivity are engineered for precision and reliability, offering an ideal solution in demanding applications requiring secure PCB connections. Browse the Electronics Components category on EnvMart for complementary connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this PCB header is 250V.
This model features 40 male contacts arranged in 2 rows.
The pitch size of the contacts is 2.54 mm.
The current capacity of this connector is 1 A.
It uses solder termination for reliable mechanical attachment.
This header operates reliably between -65°C and 105°C.
The contacts are made from phosphor bronze and are gold plated for conductivity and corrosion resistance.
The mounting type is through hole, allowing for durable attachment to PCB assemblies.
This model is shrouded, providing additional protection and alignment during mating.
It is suitable for use in PCs, business equipment, medical devices, storage systems, networking, and industrial controls.
The housing material is polybutylene terephthalate.
Yes, this header supports wire-to-board connections, making it versatile for various applications.
