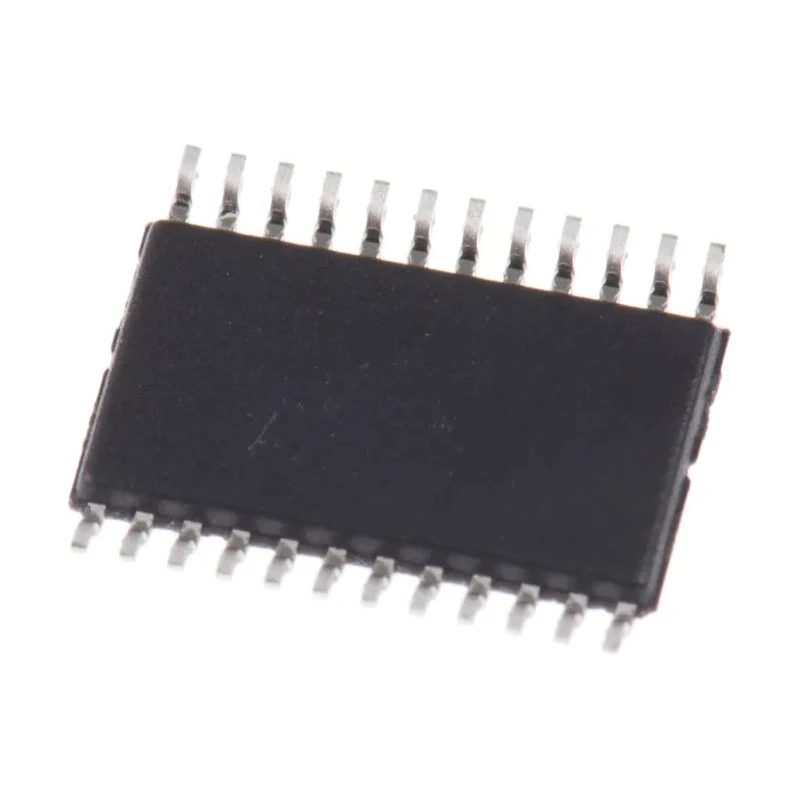

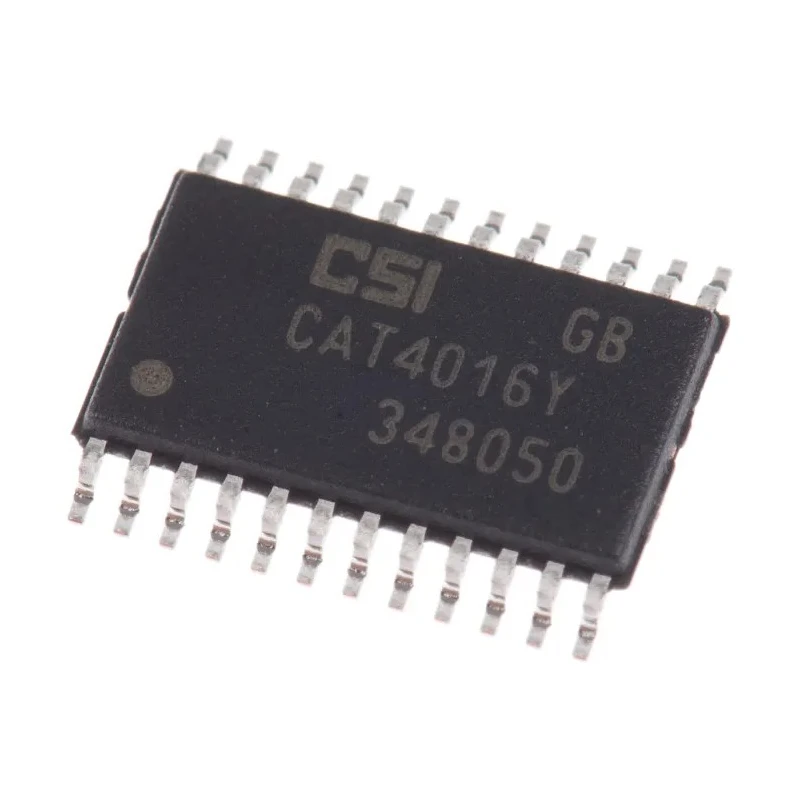

onsemi LED Driver IC, 3V dc, 5.5 V dc, 1.6 A Output Current, 24-Pin TSSOP CAT4016Y-T2
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | onsemi |
| Height | 800μm |
| Model | CAT4016Y-T2 |
| Mount Type | Surface |
| Series | CA |
| Output Current | 1.6A |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Input Voltage | 3, 5.5V dc |
| Standards/Approvals | Pb-Free, RoHS |
| Maximum Output Voltage | 5.5V |
| Number of Pins | 24 |
| Automotive Standard | AEC-Q100 |
| Minimum Output Voltage | 400mV |
| Dimming Operation | PWM |
Key Features
- Operates at input voltages from 3V to 5.5V dc.
- Maximum output voltage rating of 5.5V with minimum output of 400mV.
- Supports PWM dimming operation for brightness control.
- Designed for surface mount applications with 24-pin TSSOP package.
- Operating temperature range from -40°C to 125°C ensures reliability.
- Complies with Pb-Free and RoHS environmental standards.
- Automotive standard certified with AEC-Q100 qualification.
- Compact device height of 800μm for compact PCB designs.
Product Description
onsemi CAT4016Y-T2 LED Driver IC is designed for driving linear LED arrays with efficient power management, operating within a voltage range of 3V to 5.5V dc and providing an output current of 1.6A. Housed in a 24-pin Thin Shrink Small Outline Package (TSSOP), it supports PWM dimming for precise brightness control and is surface mountable for modern PCB assembly.
This LED driver IC operates in harsh environments with a wide operating temperature range from -40°C to 125°C, making it suitable for automotive and industrial applications. The device is compliant with Pb-Free and RoHS environmental standards, promoting eco-friendly manufacturing processes.
Its automotive qualification per AEC-Q100 ensures high reliability in automotive systems. The low device height of 800μm facilitates compact electronic designs, helping reduce overall product size.
Typical applications include automotive LED lighting, backlighting, indicators, and general LED array power management in consumer electronic products. It supports stable, efficient LED driving with high accuracy and temperature tolerance.
Operates at input voltages from 3V to 5.5V dc. Maximum output voltage rating of 5.5V with minimum output of 400mV. Supports PWM dimming operation for brightness control. Designed for surface mount applications with 24-pin TSSOP package.
Operating temperature range from -40°C to 125°C ensures reliability. Complies with Pb-Free and RoHS environmental standards. Automotive standard certified with AEC-Q100 qualification. Compact device height of 800μm for compact PCB designs.
Explore more LED Driver ICs from onsemi and other brands in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 3V to 5.5V dc.
It provides a maximum output current of 1.6A.
The device has a height of 800μm, making it suitable for compact PCB designs.
The operating temperature range is from -40°C to 125°C, ensuring reliability in harsh environments.
Yes, it supports PWM dimming operation for brightness control.
It complies with Pb-Free and RoHS environmental standards.
This LED driver IC features 24 pins in its TSSOP package.
The maximum output voltage rating is 5.5V, with a minimum output of 400mV.
It is designed for surface mount applications.
It is certified with the AEC-Q100 automotive standard, ensuring high reliability in automotive systems.
The country of origin for this model is Thailand.
This model belongs to the CA series of LED driver ICs.
