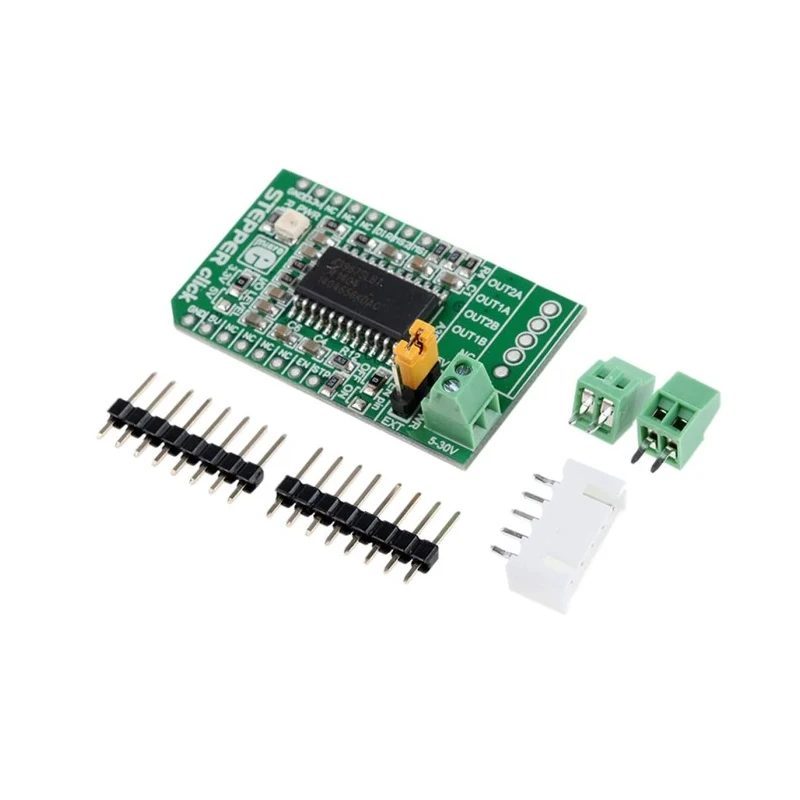

MikroElektronika Microstepping Stepper Motor Driver Shield for MikroBUS with A3967SLBT Chip MIKROE-1528

MikroElektronika MIKROE-1528 is a click shield designed to provide precise stepper motor control with its integrated A3967SLBT driver chip. This shield interfaces seamlessly with mikroBUS sockets on MikroElektronika microcontroller development boards, enabling advanced motor control capabilities.

The stepper motor driver supports multiple microstepping modes including full-, half-, quarter-, and eighth-stepping, allowing for smooth and accurate positioning of bipolar step motors. The output drive current is capable of ±500mA at 30V, suitable for a wide range of stepper motors in various applications.

This shield can be powered by either a 3.3V or 5V DC supply, offering flexibility for different system designs. It provides motor connection options through screw terminals or the B5B-XH-A connector, facilitating easy wiring. Additionally, there are screw terminals for connecting an optional external motor power supply.

The unit features a power indicator LED, assisting in quick visual confirmation of operational status. Supplied with header strips pre-soldered, it ensures hassle-free installation on supported development boards.

Applications for this stepper motor shield include robotics, automation projects, educational STEM development, and motor control experimentation in laboratory and workshop settings. Its compact design and mikroBUS compatibility make it a versatile tool for engineers and hobbyists alike.

The product is manufactured in Serbia and is supplied new. This shield complies with standard quality expectations but does not have specific approvals or certifications. Equipped with A3967SLBT stepper motor driver chip for advanced microstepping control.

Supports bipolar step Motors with full-, half-, quarter-, and eighth-step modes. Output drive capability of ±500mA at 30V ensures reliable motor power. Operates on 3.3V or 5V DC power supply for flexible integration. Motor connections via screw terminals or B5B-XH-A connector for easy setup.

Includes power indicator LED for operational status monitoring. Screw terminals allow optional external motor power supply connection. Designed as a click shield compatible with MikroElektronika mikroBUS™ ecosystem. Ideal for robotics, automation, and education applications.
