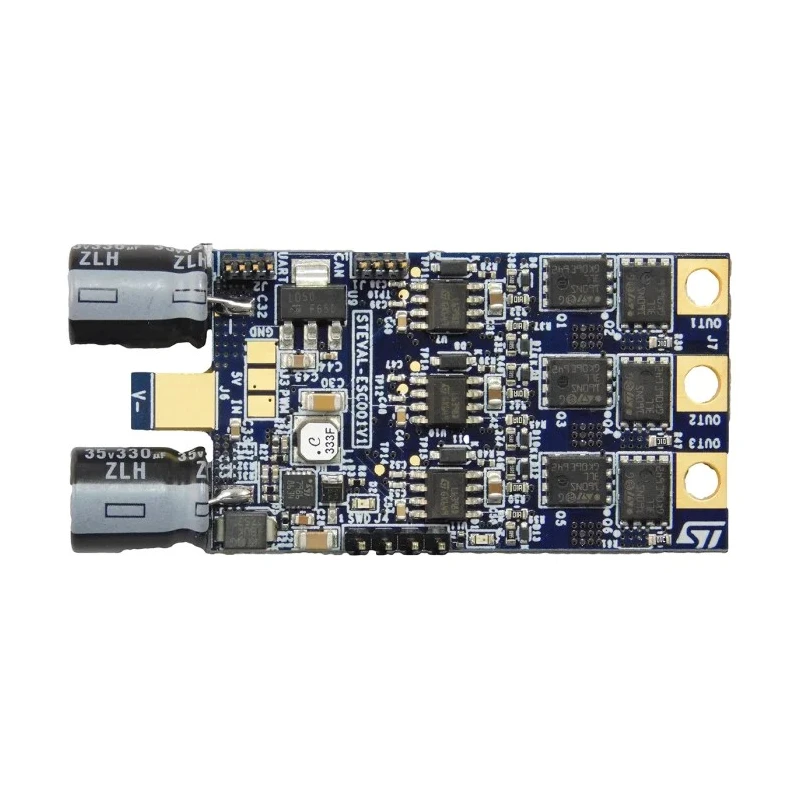

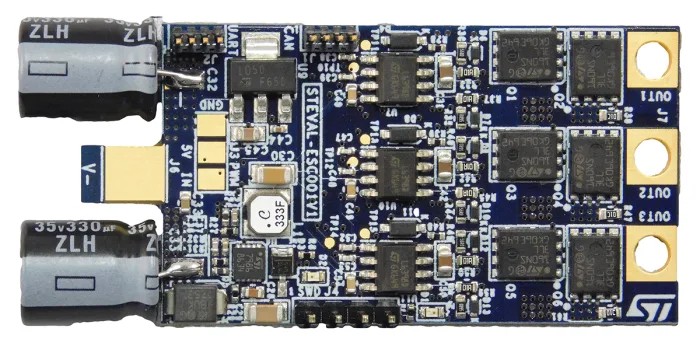

STMicroelectronics Brushless DC Motor Evaluation Board for STM32F303, L6398, STL160NS3LLH7 STEVAL-ESC001V1

The STMicroelectronics STEVAL-ESC001V1 is a dedicated brushless DC motor evaluation board designed to support three-phase BLDC and PMSM motor control with sensorless Field Oriented Control (FOC) and speed regulation. Powered by a 72MHz STM32F303CBT7 Cortex-M4F microcontroller featuring 128KB of Flash memory and 32KB RAM, this board integrates advanced motor driver components including 3 L6398D High Side/Low Side MOSFET gate drivers and 6 STL160NS3LLH7 power MOSFETs arranged in 3 half-bridge configurations to deliver up to 20 amperes RMS current.

The board incorporates precise current-sensing and phase-sensing circuits critical for optimal motor control, alongside multiple host communication interfaces such as serial UART, I2C, and CAN. An onboard SN65HVD230 CAN transceiver enables robust integration with CAN-based systems. Additionally, the board features a Battery Eliminator Circuit (BEC) supplying stable +5V power to R/C receivers and servomotors, facilitating use in radio-controlled vehicles and robotics.

Built for advanced motor control applications in industrial, laboratory, and hobbyist domains, the STEVAL-ESC001V1 supports sensorless FOC algorithm implementation and active braking techniques, controlled through a compact 29.1 x 58 mm form factor suitable for integration in electric cars, boats, UAV drones, and similar remote-controlled platforms.

Protection mechanisms on the board include cross conduction prevention, overcurrent and overvoltage safeguards, as well as thermal measurement via onboard NTC sensors for overheating prevention, ensuring reliable and safe operation under demanding conditions.

The evaluation board is supported by ST’s motor control software development kit (SDK) and motor profiler tools, enabling developers to configure, test, and optimize motor control algorithms effectively.

Integrates a 72MHz STM32F303CBT7 Cortex-M4F MCU with ample Flash and RAM for advanced control. Includes 3 L6398D MOSFET drivers and 6 STL160NS3LLH7 power MOSFETs for efficient motor driving. Supports 20A maximum RMS output current with precise current and phase sensing.

Equipped with UART, I2C, and CAN communication with onboard CAN transceiver. Features Battery Eliminator Circuit providing +5V for peripheral devices. Supports sensorless field oriented control and active braking functions.

Compact dimensions of 29.1 x 58 mm for ease of integration. Built-in protections include cross conduction, overcurrent, overvoltage, and thermal safeguards. Compatible with ST motor control SDK and profiler software tools.
