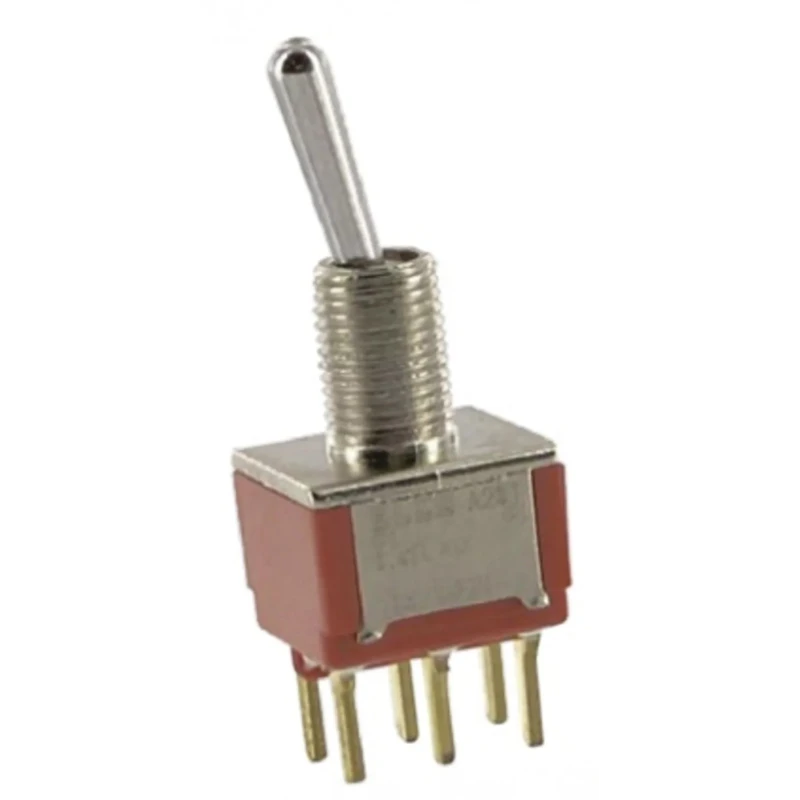

TE Connectivity Toggle Switch PCB Mount On-On DPDT Through Hole Terminal 20V DC 20V AC 2-1825138-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Mount Type | PCB |
| Series | Gemini A |
| Contact Configuration | DPDT |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 20V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 20V ac |
Key Features
- DPDT contact configuration enables dual-pole, dual-throw switching functionality.
- On-On switch operation for versatile circuit control.
- Through hole terminal type ensures secure PCB mount installation.
- Actuator length of 10.41 mm facilitates precise manual switching.
- Constructed with stainless steel frame and brass tin-plated solder supports for durability.
- Epoxy sealed terminals provide excellent protection against contaminants.
- Compliant with RoHS standards ensuring environmentally safe materials.
- Part of the Gemini A series specialized for panel mount toggle switches.
Product Description
TE Connectivity 2-1825138-4 Toggle Switch is a PCB mount, on-on, DPDT switch designed for reliable performance in electrical and automation applications. Rated for 20V DC and 20V AC operation with a switch contact current of 400mA, it is suitable for low-voltage control circuits requiring dual-pole double-throw switching capabilities. The through hole terminal mounting and an actuator length of 10.41mm ensure robust circuit connections and user-friendly control.
This toggle switch belongs to the Gemini A series, featuring a stainless steel frame combined with brass tin-plated solder support that provides mechanical strength and excellent solderability. Its epoxy sealed terminals offer enhanced protection against dust and moisture, contributing to its longevity in demanding industrial environments. Additionally, this switch meets RoHS directives, making it compliant with environmental and safety standards.
Typical applications include industrial automation systems, PCB-based electronic assemblies, control panels, and other electrical devices requiring reliable toggle operations. Its compact design supports easy integration into various electronics and electrical equipment, making it ideal for use in manufacturing, laboratory instrumentation, and commercial electrical installations.
DPDT contact configuration for flexible circuit routing. On-On switch operation suitable for multiple switching positions. Secure through hole PCB mounting design. Durable stainless steel frame with brass tin plating for solder support.
Epoxy sealed terminals for environmental resistance. Compliance with RoHS standards for safety and environmental impact. Part of Gemini A series designed for panel mounting applications.
This product is a new, high-quality Toggle Switch from TE Connectivity, well-suited for electrical and automation use cases. Browse the Electronics & Electricals category on EnvMart for similar high-performance switches from established brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This toggle switch features a DPDT (Dual-Pole, Dual-Throw) contact configuration, allowing for flexible circuit routing and multiple switching positions.
It is rated for a maximum of 20V DC and 20V AC operation, making it suitable for low-voltage control circuits.
The switch contact current is rated at 400mA, which is appropriate for various low-voltage applications.
This model uses a through hole terminal type for PCB mounting, ensuring secure installation on printed circuit boards.
The actuator length of this toggle switch is 10.41mm, facilitating precise manual switching.
Yes, it is compliant with RoHS standards, ensuring it is made with environmentally safe materials.
The switch has a stainless steel frame and brass tin-plated solder supports, providing mechanical strength and excellent solderability.
This toggle switch is part of the Gemini A series, which is designed for panel mount applications.
Typical applications include industrial automation systems, PCB-based electronic assemblies, and control panels requiring reliable toggle operations.
The terminals of this switch are epoxy sealed, providing excellent protection against dust and moisture, which enhances longevity in demanding environments.
The country of origin for this toggle switch is India.
This model operates as an On-On switch, allowing for versatile circuit control.
