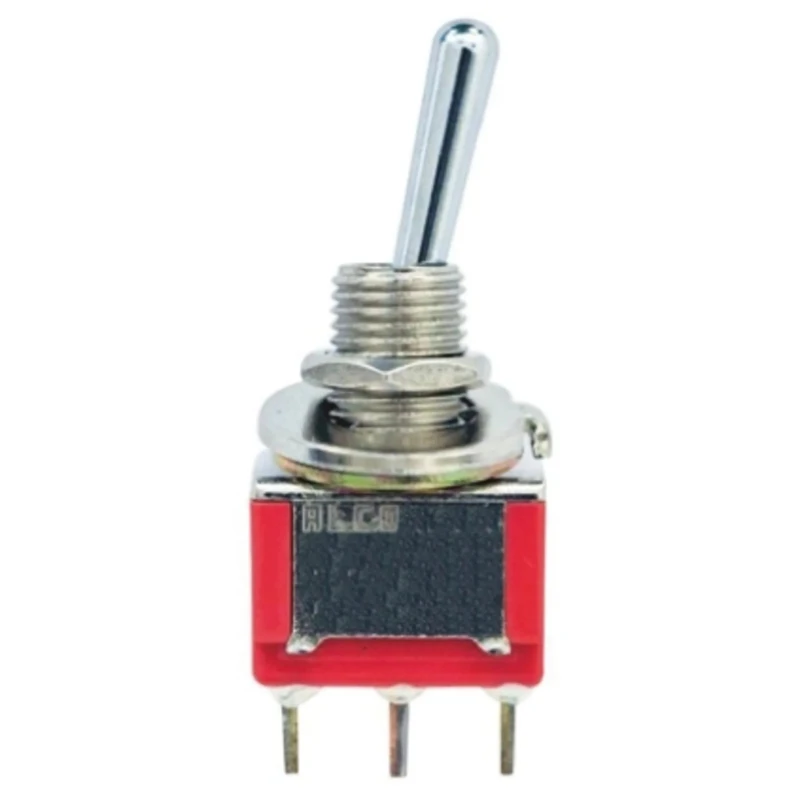

TE Connectivity Toggle Switch PCB Mount On-Off-On SPDT Through Hole Terminal 28 V dc 120 V ac A105MYV30Q04

TE Connectivity A105MYV30Q04 is a high-quality toggle switch designed for PCB mounting applications. Featuring an On-Off-On switch operation and SPDT contact configuration, this switch provides versatile control options for electronic circuits. It supports a contact current of 5A at 28 V dc and 120 V ac, making it suitable for medium power switching tasks in industrial, electronics manufacturing, and automation systems.

The switch is constructed with epoxy sealed terminals for enhanced protection against environmental factors and features a stainless steel frame with brass tin plated solder supports to ensure mechanical stability and durability. Its small footprint with a length of 0.5 inch and width of 0.270 inch allows integration into compact PCB layouts.

Capable of operating reliably in a temperature range of -30°C to 85°C, this toggle switch is ideal for diverse industrial and laboratory environments. The mechanical life is rated at 6000 cycles, ensuring long service life in repetitive switching applications. It meets RoHS compliance to adhere to environmental regulations.

This product is a part of the Gemini A series, a recognized range from TE Connectivity known for robust and reliable switch solutions tailored for panel mount and PCB mount needs. Its break-before-make contact timing prevents shorts during switching actions.

Key practical applications include use in electrical panels, automation control systems, laboratory equipment, HVAC controls, and various manufacturing process controls where safe and dependable circuit switching is required.

Designed for PCB mounting with through hole terminals for secure connections. Switch operation type is On-Off-On suitable for varied control applications. Single Pole Double Throw (SPDT) contact configuration allows dual circuit switching.

Rated for 5A contact current at 28 V dc and 120 V ac for moderate power control. Mechanical life rated for 6000 cycles ensuring reliable long-term use. Operating temperature range from -30°C up to 85°C for versatile environmental conditions.

Epoxy sealed terminals provide protection and durability in industrial environments. Constructed with stainless steel frame and brass tin plated solder supports for robust build quality. Compact dimensions with length 0.5 inch and width 0.270 inch for space constrained PCB designs.

Complies with RoHS standards ensuring environmental regulatory compliance. Explore more TE Connectivity Toggle Switches and other related products on EnvMart for all your industrial and electronic component needs.
