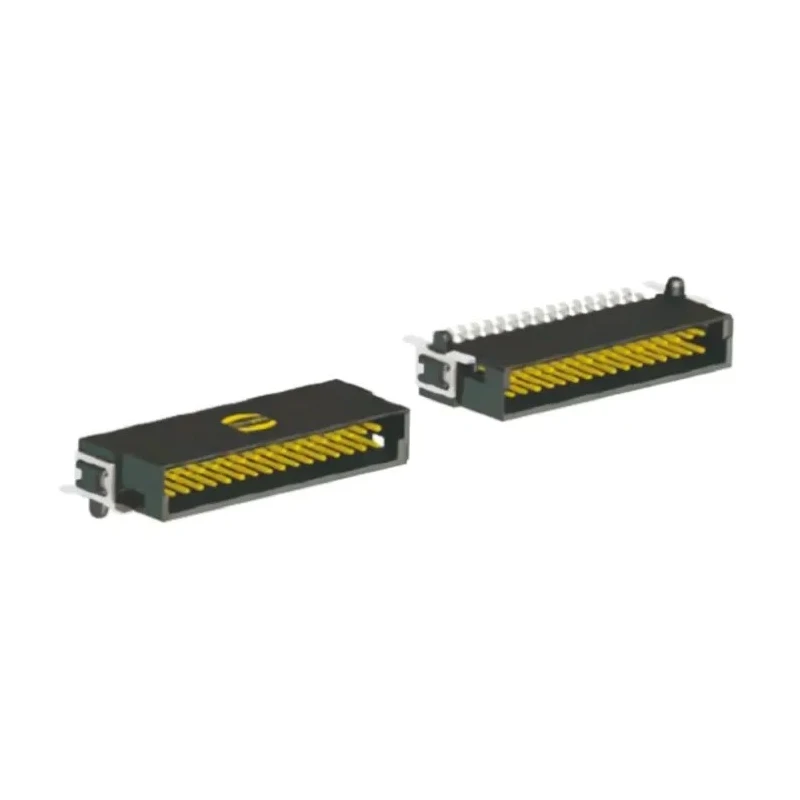

Harting Har-Flex Series Right Angle Surface PCB Header 50 Contacts 1.27 mm Pitch 2 Row Shrouded 15150502601000
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 600V |
| Brand | Harting |
| Orientation | Right Angle |
| Current | 750mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Series | Har-Flex |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Constructed with liquid crystal polymer housing for rugged reliability.
- Gold-plated contacts ensure excellent conductivity and corrosion resistance.
- Rated for 750mA current and 600V voltage operation.
- Designed for surface mounting with solder termination and Ø1.5 mm fixing pegs for precise PCB placement.
- Operates reliably in temperatures ranging from -55°C to 125°C.
- Compatible with Harting har-flex IDC sockets and PCB sockets for versatile application.
- Meets UL 94-V0 flammability standard for safety compliance.
- Provides more than 500 mating cycles for long-term durability.
Product Description
Harting 15150502601000 Har-Flex Series right angle surface PCB header offers a reliable interconnection solution featuring 50 contacts arranged in two rows with 1.27 mm pitch. This shrouded connector is ideal for demanding electronic and industrial applications requiring secure board-to-board or wire-to-board connections within SMT technology.
Its housing is made from liquid crystal polymer, delivering excellent mechanical strength and environmental resistance. Gold-plated contacts ensure low contact resistance and high reliability, supporting currents up to 750mA and voltages up to 600V.
The connector’s design includes solder termination and Ø1.5 mm board fixing pegs to enable exact positioning and retention on the PCB. It is engineered to withstand temperatures from -55°C to 125°C and complies with UL 94-V0 for flame retardance.
The Har-Flex series is scalable from 6 to 100 contacts in even numbers, providing flexibility for mezzanine, extender card, and mother-to-daughter card configurations. This model supports over 500 mating cycles for extended durability in professional electronic applications.
Constructed with liquid crystal polymer housing for rugged reliability. Gold-plated contacts ensure excellent conductivity and corrosion resistance. Rated for 750mA current and 600V voltage operation. Designed for surface mounting with solder termination and Ø1.5 mm fixing pegs for precise PCB placement.
Operates reliably in temperatures ranging from -55°C to 125°C. Compatible with Harting har-flex IDC sockets and PCB sockets for versatile application. Meets UL 94-V0 flammability standard for safety compliance. Provides more than 500 mating cycles for long-term durability.
Manufactured in China with high quality standards.
This PCB header is suited for industrial, electronic, manufacturing, and automotive sectors demanding high-performance electronic connectors. It enhances device modularity and reliability while maintaining compact form factors.
Explore more Harting PCB connectors and electronic components at EnvMart for a wide range of high-quality industrial solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 750mA.
It has a voltage rating of 600V.
The housing is made from liquid crystal polymer, and the contacts are gold-plated for enhanced conductivity and corrosion resistance.
This PCB header features a 1.27mm pitch and has 50 contacts arranged in two rows.
It operates reliably in temperatures ranging from -55°C to 125°C.
It is designed for surface mounting with solder termination and includes Ø1.5 mm fixing pegs for precise placement on the PCB.
This model supports over 500 mating cycles, ensuring long-term durability.
It is suited for industrial, electronic, manufacturing, and automotive sectors that require high-performance electronic connectors.
Yes, it is compatible with Harting har-flex IDC sockets and PCB sockets.
It meets the UL 94-V0 flammability standard for safety compliance.
This model has a right angle orientation, suitable for specific layout requirements.
