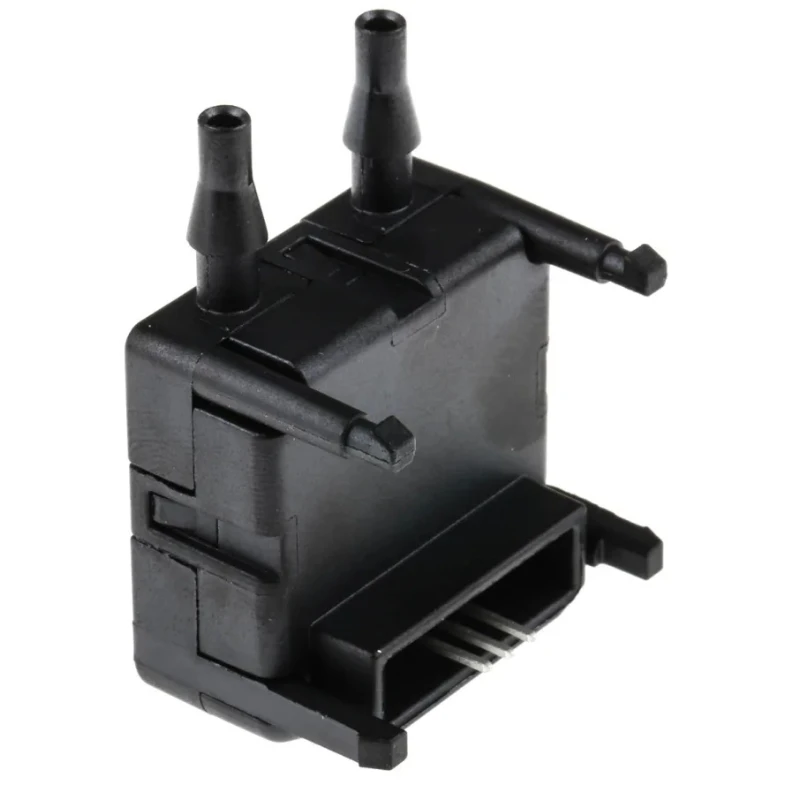

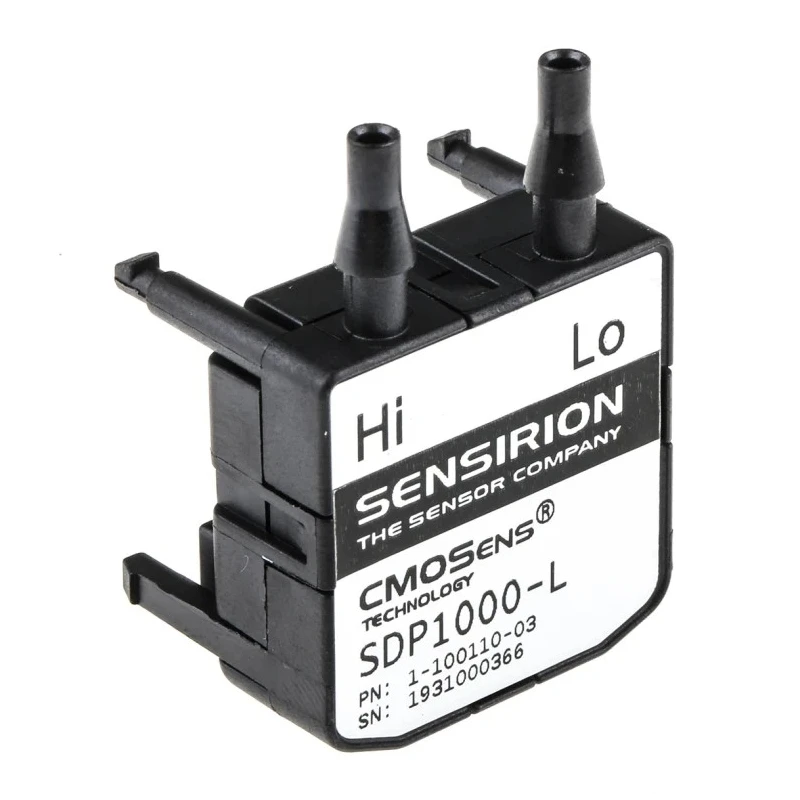

Sensirion Series Low Range Differential Pressure Sensor, Analogue Output 20 Pa to 500 Pa, 4.75V-5.25V Supply, PCB SDP1000
Specifications
| Country of Origin | Switzerland |
|---|---|
| Accuracy | ±0.2 % rdg + 1.5 Digits |
| Brand | Sensirion |
| Response time | 40ms |
| Model | SDP1000 |
| IP Rating | IP20 |
| Mount Type | PCB |
| Housing Material | Polyphenylene Sulphide |
| Output type | Analogue |
| Series | SDP1000 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Terminal type | 3-Pin |
| Standards/Approvals | REACH and RoHS |
| Maximum Pressure Measurement | 500Pa |
| Minimum Pressure Measurement | 20Pa |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 4.75V |
| Pressure Reading Type | Differential |
| Media Measured | Air |
| Diff Pressure Sensor -20 to 500PaBrand | Sensirion |
Key Features
- Measures differential pressure with a range of 20 Pa to 500 Pa.
- Provides analogue output with 0.25 to 4.0 V signal range.
- Operates at supply voltage from 4.75 V up to maximum 5.25 V.
- Fast response time of 40 milliseconds suitable for dynamic measurements.
- Temperature compensated and calibrated individually for accuracy.
- Built with polyphenylene sulphide housing for durability and chemical resistance.
- Operating temperature range from -10°C to 60°C.
- Designed for PCB mounting with a 3-pin terminal type.
Product Description
Sensirion SDP1000 Series low range differential pressure sensor (model SDP1000) is designed for fast and reliable air pressure measurements in industrial and HVAC applications. With a calibrated and temperature compensated analogue output, it accurately measures differential pressures from 20 Pa to a maximum of 500 Pa. The sensor operates with a supply voltage ranging from 4.75 V to 5.25 V, delivering an output voltage between 0.25 and 4.0 V.
Encased in a durable polyphenylene sulphide housing, the sensor is optimized for PCB mounting via a 3-pin connector, ensuring easy integration into control systems. It is suitable for use in environments with operating temperatures between -10°C and 60°C, providing stability and precision even in fluctuating conditions.
The device maintains excellent long-term stability and zero offset, making it ideal for sensitive medical ventilation systems and HVAC monitoring. Compliance with REACH and RoHS standards assures environmentally safe manufacturing and chemical conformity.
Measures differential pressure from 20 Pa to 500 Pa. Analogue output voltage from 0.25 to 4.0 V for precise reading. Fast response time of 40 ms for timely data acquisition. Stable operation between operating temperatures -10°C and 60°C.
Compact PCB mount design with 3-pin terminal. Polyphenylene sulphide housing for chemical and thermal resistance. Meets REACH and RoHS standards for safety and sustainability. IP20 rating protects against solid foreign objects larger than 12 mm.
This pressure sensor is well suited for industrial process control, HVAC systems, medical ventilation equipment, and other applications requiring accurate low range differential pressure measurement of air and non-aggressive gases. The product originates from Switzerland, reflecting high-quality European manufacturing standards.
Explore other innovative Pressure Sensors and sensing solutions in the Sensirion product range at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SDP1000 measures differential pressures from 20 Pa to 500 Pa.
It provides an analogue output with a voltage range from 0.25 V to 4.0 V.
This sensor operates with a supply voltage ranging from 4.75 V to 5.25 V.
The response time of the SDP1000 is 40 milliseconds, making it suitable for dynamic measurements.
It operates effectively within a temperature range of -10°C to 60°C.
The housing is made of polyphenylene sulphide, providing durability and chemical resistance.
This model is designed for PCB mounting and features a 3-pin terminal type.
It complies with REACH and RoHS standards, ensuring environmentally safe manufacturing.
The sensor has an accuracy of ±0.2 % reading plus 1.5 digits.
It is designed to measure air and non-aggressive gases.
The SDP1000 has an IP20 rating, protecting it against solid foreign objects larger than 12 mm.
This sensor is suitable for industrial process control, HVAC systems, and medical ventilation equipment.
