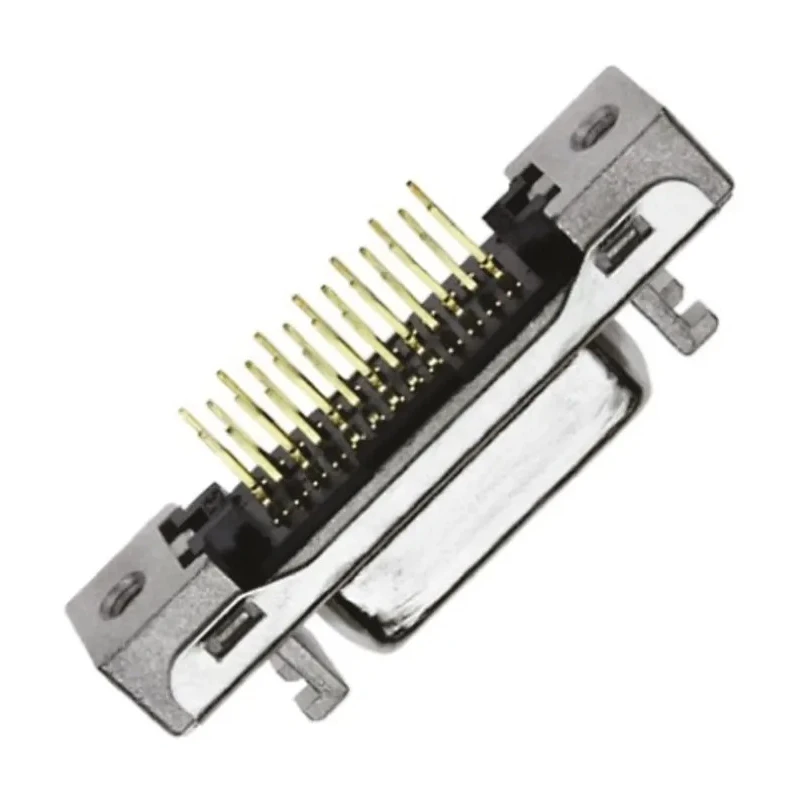

3M MDR 102 36 Way Straight 1.27 mm Pitch Through Hole D-Sub Connector with M2.5 Screw Female 10236-6212PC

Free Delivery in India | Lowest Global Shipping Charges

3M MDR 102 36 Way Straight 1.27 mm Pitch Through Hole D-Sub Connector with M2.5 Screw Female 10236-6212PC



Category D-Sub Connector Brand 3M Condition New

Specifications

Country of Origin	Japan
Voltage	500V
Brand	3M
Orientation	Straight
Current	1A
Model	10236-6212PC
Mount Type	Through Hole
Housing Material	Zinc Alloy
Contact Material	Copper Alloy
Series	MDR 102
Mounting Hardware	M2.5 Screw
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-20°C
Pitch	1.27mm
Contact Plating	Gold over Nickel
Number of Contacts	36
Contact Gender	Female
Connector Gender	Female
Connector Type D	Standard
N102xx-xxxxxx	High temperature PCT insulator
x102xx-xx0xxx	M2.6 Panel and Screw locks
x102xx-xx1xxx	M2.5 Panel and Screw locks
x102xx-xxxxPC	Contact area Au 0.7 6 μm, Tail area Au flash
x102xx-xxxxPL	Contact area Au 0.2 μm, Tail area Au flash with lubricant treatment
3M MDR 102 36 Way Through Hole Micro-D PCB Connector Socket, 1.27mm PitchBrand	3M

Key Features

This connector accommodates 36 contacts designed for standard electronic interconnections.
Rated for a current of 1A and maximum voltage of 500V to support demanding power requirements.
Constructed with zinc alloy housing and copper alloy contacts plated with gold over nickel for durability and excellent conductivity.
Designed with a straight orientation and through hole mount type for secure PCB integration.
Operates efficiently across a temperature range of -20°C to 85°C suitable for varied environmental conditions.
Includes M2.5 screw mounting hardware ensuring firm connection and mechanical stability.
Utilized in heavy duty computing, industrial electronics, and medical equipment requiring robust connections.
Connector gender and contact gender are female to match compatible plugs for streamlined assembly.

Product Description

3M 10236-6212PC MDR 102 Series 36 Way Straight 1.27 mm Pitch Through Hole D-Sub Connector with M2.5 Screw Female is designed for reliable electronic connections in industrial, laboratory, and commercial computing environments.

The connector features a zinc alloy housing for ruggedness and copper alloy contacts plated with gold over nickel to ensure excellent electrical performance and corrosion resistance. Its straight orientation and through hole mounting type facilitate easy PCB integration, while the M2.5 screw hardware secures the connector firmly in place.

This 102 Series MDR (Mini Delta Ribbon) connector is suited for high density I/O applications with a fine pitch of 1.27 mm. It supports a maximum current of 1A and voltage rating of 500V, making it ideal for signal and power transmissions in complex electronic systems.

The operating temperature range from -20°C to 85°C enables usage in diverse environmental conditions ranging from industrial to medical computing equipment. Female connector and contact gender design ensure compatibility with mating plugs, providing secure and stable connections.

Applications include hospital equipment, industrial computers, and personal or office computing systems where durable and robust connector solutions are essential. This connector accommodates 36 contacts designed for standard electronic interconnections.

Rated for a current of 1 Ampere and maximum voltage of 500 Volts to support demanding power requirements. Constructed with zinc alloy housing and copper alloy contacts plated with gold over nickel for durability and excellent conductivity.

Features straight orientation and through hole mount type for secure PCB integration. Operates efficiently across a temperature range of -20°C to 85°C suitable for varied environmental conditions. Includes M2.5 screw mounting hardware ensuring firm connection and mechanical stability.

Connector gender and contact gender are female to match compatible plugs for streamlined assembly. Pitch of 1.27 mm supports high-density I/O usage.

3M is a trusted brand known for high-quality connectors suitable for industrial, laboratory, and commercial electronics solutions. Explore similar connectors and accessories in the D-Sub Connector category at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This connector is rated for a maximum current of 1A and a maximum voltage of 500V, making it suitable for demanding power requirements.

The pitch size of this model is 1.27 mm, which supports high-density I/O applications.

It features a zinc alloy housing for durability and copper alloy contacts that are plated with gold over nickel for excellent conductivity and corrosion resistance.

The operating temperature range is from -20°C to 85°C, allowing it to function effectively in various environmental conditions.

This model is designed for through hole mounting and includes M2.5 screw mounting hardware to ensure a secure connection.

This D-Sub connector accommodates 36 contacts, designed for standard electronic interconnections.

The termination type for this connector is solder, which is standard for secure electrical connections.

Both the connector and contact gender are female, ensuring compatibility with compatible plugs for streamlined assembly.

It is utilized in heavy-duty computing, industrial electronics, and medical equipment where robust connections are required.

The connector is manufactured in Japan.

The gold over nickel plating on the contacts ensures excellent electrical performance and corrosion resistance, enhancing the longevity of the connections.

This connector is part of the MDR 102 Series, designed for reliable electronic connections in various environments.
