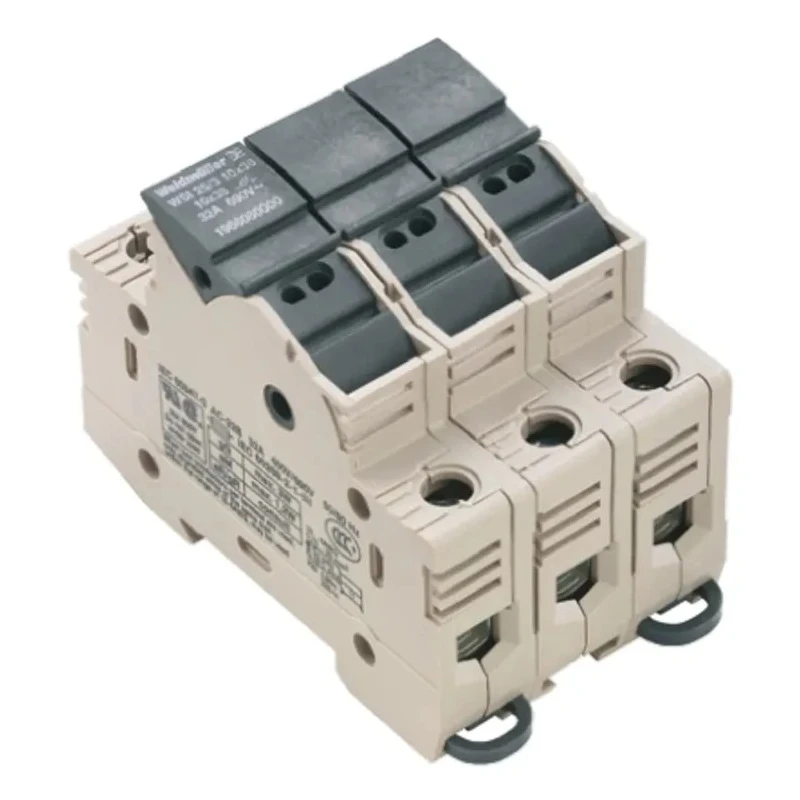

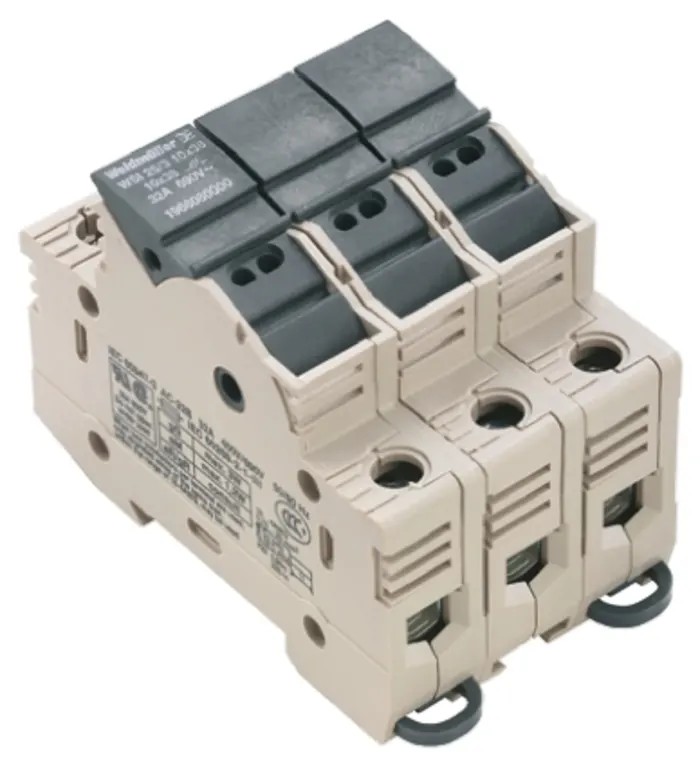

Weidmüller W Series Fused DIN Rail Terminal, Beige, 1-Level, Screw Termination, 690V, 32A, Model 1966080000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 690V |
| Brand | Weidmüller |
| Colour | Beige |
| Series | W |
| Termination Type | Screw |
| Maximum Operating Temperature | 120°C |
| Number of Levels | 1 |
| Minimum Operating Temperature | -50°C |
| Pitch | 54mm |
| Minimum Wire Size AWG | 18AWG |
| Maximum Wire Size AWG | 3AWG |
| Terminal Block Current | 32A |
Key Features
- This 1-level fused DIN rail terminal is designed for easy fuse replacement without disassembling adjacent terminals.
- The pivoting lever fuse holder safely accommodates fuse cartridges with lever action.
- Constructed from durable beige nylon 6.6 with a continuous temperature rating of 120°C.
- The screw clamp termination supports wire sizes from 18 AWG to 3 AWG and carries up to 32A current at 690V.
- It is ideal for space-saving DIN rail mounting in electrical cabinets and industrial control panels.
- The compact 54mm pitch design enhances cabinet wiring density.
- Made in Germany, the terminal block is self-extinguishing to UL94V-0 standards and free from halogen and cadmium.
- Suitable for industrial and electrical use requiring secure, short circuit and overload protection.
Product Description
Weidmüller 1966080000 W Series fused DIN Rail Terminal is a high-quality electrical component designed for industrial and electrical applications demanding reliable fuse protection and secure wiring connections. The terminal features a pivoting lever fuse holder that allows for easy insertion and replacement of fuse cartridges without the need to dismantle surrounding terminals, improving maintenance efficiency.
Manufactured from beige nylon 6.6, this terminal block is rated for continuous operation up to 120°C and complies with UL94V-0 self-extinguishing standards. Its screw clamp connection system accommodates wire sizes from 18 AWG to 3 AWG and supports a current rating of 32A at 690 volts, ensuring robust electrical performance and safety.
The compact 54mm pitch reduces cabinet space requirements while facilitating organized wiring in control panels and industrial switchgear. The internal copper current bar, made from 10 mm electrolytic copper, guarantees a current load capacity exceeding the nominal rating, providing superior conductivity and durability.
This 1-level fused DIN rail terminal is ideal for use in industrial installations requiring efficient short circuit and overload protection. Its space-saving design and rugged construction make it a reliable choice for use in automation, manufacturing, power distribution, and other electrical engineering fields.
This fused terminal block is designed for direct mounting on standard 'Top Hat' DIN rails. The lever action fuse carrier ensures safe and easy fuse replacement. The terminal block is free from hazardous substances such as cadmium and halogen, supporting environmental compliance.
Suitable for industrial electrical wiring setups needing robust overload protection. Its compact design maximizes wiring density in electrical distribution cabinets. Made in Germany, guaranteeing high standards of quality and reliability.
Choose Weidmüller W Series fused DIN rail terminals for effective circuit protection and dependable industrial performance. Explore more DIN Rail Terminal Blocks in EnvMart’s Electronics Components category for comprehensive wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this DIN rail terminal is 690V.
This model can carry a current of up to 32A.
The terminal operates within a temperature range of -50°C to 120°C.
The screw clamp termination supports wire sizes from 18 AWG to 3 AWG.
The terminal features a pivoting lever fuse holder that allows for easy insertion and replacement of fuse cartridges without disassembling adjacent terminals.
The pitch of this DIN rail terminal is 54mm, which helps maximize wiring density in cabinets.
This terminal is manufactured in Germany.
This terminal is designed for direct mounting on standard 'Top Hat' DIN rails.
This terminal has 1 level.
This terminal is suitable for industrial installations requiring efficient short circuit and overload protection.
