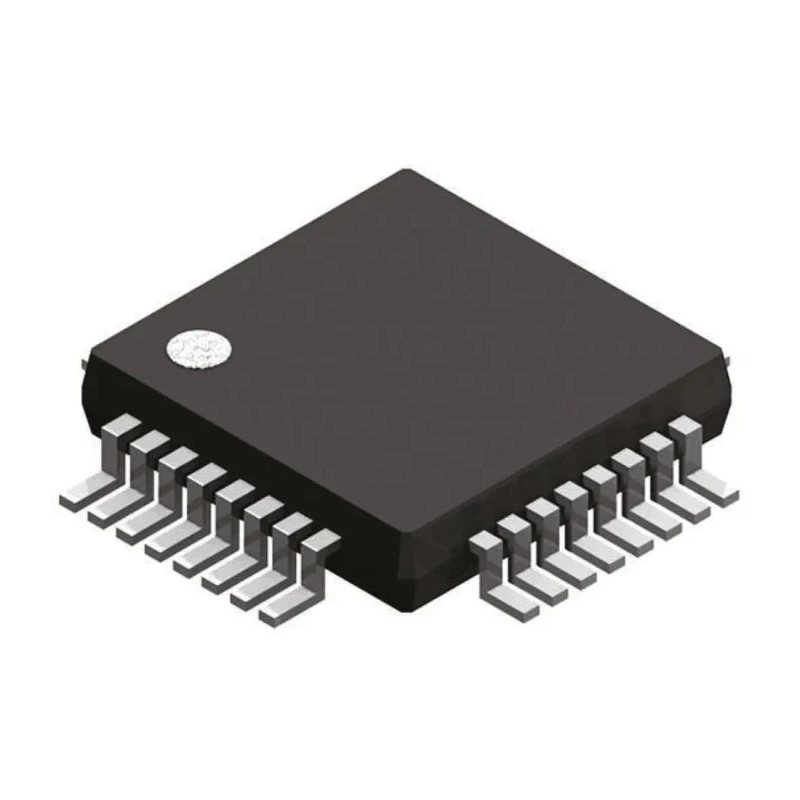

Silicon Labs 8 bit 8051 Microcontroller, 32kB FLASH, 50 MHz, 32-Pin QFP C8051F560-IQ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Silicon Labs |
| Height | 1.45mm |
| Length | 7mm |
| Model | C8051F560-IQ |
| Width | 7mm |
| Mount Type | Surface |
| Series | C8051F |
| Maximum Operating Temperature | 125°C |
| Package Type | QFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2.3kB |
| Standards/Approvals | RoHS |
| Pin Count | 32 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 1.8V |
| Device Core | 8051 |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 50MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Number of Timers | 4 |
| Instruction Set Architecture | Harvard |
| ADCs | 32 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a maximum clock frequency of 50 MHz enabling high-speed processing.
- Equipped with 32kB of program FLASH memory for effective code storage.
- Includes 2.3kB RAM size for efficient data handling during operation.
- Features 8-bit data bus width and an 8051 device core architecture.
- Supports up to 25 programmable I/O pins for versatile interfacing.
- Operating voltage range from 1.8V minimum to 5.25V maximum ensuring power flexibility.
- Temperature rating from -40°C to 125°C suitable for industrial environments.
- Utilizes Harvard instruction set architecture with 4 built-in timers.
Product Description
Silicon Labs C8051F560-IQ is a robust 8 bit 8051 microcontroller designed for embedded system applications requiring high speed and precise control. Featuring a 50 MHz maximum clock frequency, it ensures fast processing capabilities suitable for demanding industrial and commercial projects.
Equipped with 32kB of FLASH program memory and 2.3kB of RAM, this microcontroller offers ample storage for complex firmware and data. The 32-pin QFP surface mount package, measuring 7mm x 7mm x 1.45mm, allows compact integration on printed circuit boards.
With 25 programmable I/O pins, users can implement diverse interfacing options for sensors, actuators, and communication peripherals. The device supports an operating voltage range of 1.8V to 5.25V and is rated for operation from -40°C to 125°C, making it suitable for harsh industrial conditions.
Noteworthy features include two analog comparators, four timers, and 32 channels of 12-bit ADCs, enabling precise analog signal processing. The Harvard instruction set architecture provides efficient instruction execution, enhancing overall system responsiveness.
Certified for automotive use under AEC-Q100 and compliant with RoHS standards, this microcontroller meets stringent quality and environmental regulations. Its flash type program memory facilitates easy firmware updates and reprogramming during development cycles.
This microcontroller is ideal for applications in industrial automation, consumer electronics, automotive systems, and embedded control units. Its versatile performance and comprehensive feature set support a wide range of development needs.
Explore EnvMart's Semiconductor category for more high-performance Microcontrollers and electronic components suitable for your projects and manufacturing requirements. Operates at a maximum clock frequency of 50 MHz enabling high-speed processing.
Equipped with 32kB of program FLASH memory for effective code storage. Includes 2.3kB RAM size for efficient data handling during operation. Features 8-bit data bus width and an 8051 device core architecture. Supports up to 25 programmable I/O pins for versatile interfacing.
Operating voltage range from 1.8V minimum to 5.25V maximum ensuring power flexibility. Temperature rating from -40°C to 125°C suitable for industrial environments. Utilizes Harvard instruction set architecture with 4 built-in timers.
Provides 2 analog comparators and 32-channel 12-bit ADCs for precise signal measurement. Compliant with RoHS standards and automotive AEC-Q100 certification for quality assurance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 50 MHz, enabling high-speed processing for demanding applications.
It is equipped with 32kB of FLASH program memory for effective code storage and firmware updates.
The C8051F560-IQ includes 2.3kB of RAM, which is used for efficient data handling during operation.
This model operates within a voltage range of 1.8V to 5.25V, providing flexibility in power supply options.
It has a temperature rating from -40°C to 125°C, making it suitable for industrial environments.
This microcontroller supports up to 25 programmable I/O pins for versatile interfacing options.
The C8051F560-IQ comes in a 32-pin QFP (Quad Flat Package) format, which allows for compact integration on PCBs.
It utilizes a Harvard instruction set architecture, which enhances instruction execution efficiency.
This microcontroller features four built-in timers for various timing applications.
It includes 32 channels of 12-bit ADCs, enabling precise analog signal processing.
Yes, it is compliant with RoHS standards and certified for automotive use under AEC-Q100.
The height of this microcontroller is 1.45mm, contributing to its compact design.
