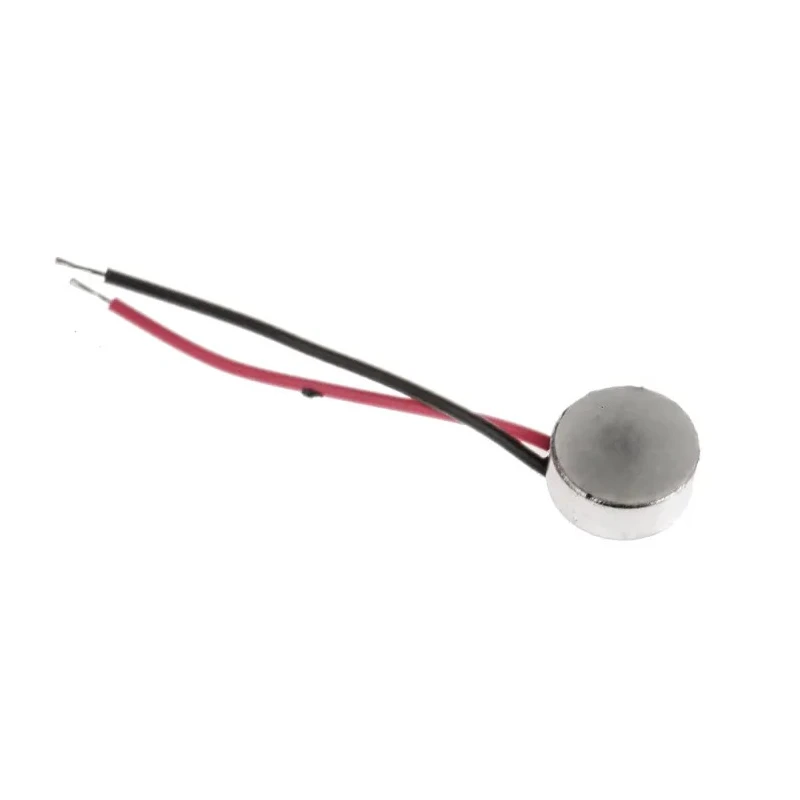

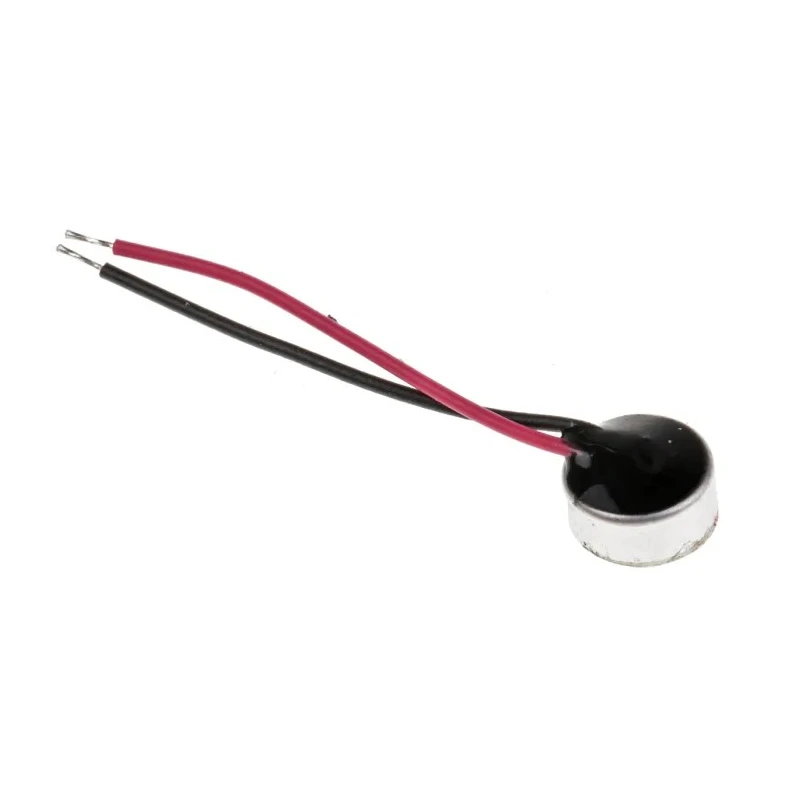

RS PRO 6 mm Omni-Directional Lead Wire Condenser Microphone -42dB Sensitivity 2V DC 20kHz Frequency 7542100P
Specifications
| Country of Origin | Taiwan |
|---|---|
| Diameter | 6mm |
| Brand | RS PRO |
| Height | 4.1mm |
| Model | 7542100P |
| SENSITIVITY | -42dB |
| Mount Type | Lead Wire |
| Output Impedance | 2.2kΩ |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Signal to Noise Ratio | 57dB |
| Standards/Approvals | IEC 529 edition 2.01989, RoHS |
| Maximum Frequency | 20kHz |
| Termination Style | Wire Terminal |
| Supply Current | 500μA |
| Minimum Frequency | 20Hz |
| Standards and Approvals | RoHS compliant |
| Directivity | Omni-Directional |
| Standard Operating Voltage | 2V dc |
Key Features
- The microphone features an omni-directional pickup pattern for capturing sound from all directions.
- It operates at a standard voltage of 2V DC with a maximum voltage rating of 10V.
- The sensitivity is rated at -42dB ensuring precise sound capture.
- It supports a frequency response range from 20Hz to 20kHz for versatile audio applications.
- The microphone has a low output impedance of 2.2kΩ to maintain signal integrity.
- It has a high signal-to-noise ratio of 57dB for clear audio output.
- The compact diameter of 6 mm and a height of 4.1 mm make it suitable for small device integration.
- Constructed with aluminium and wire terminal solder termination for ease of installation.
Product Description
RS PRO 7542100P is a high-quality 6 mm omni-directional condenser microphone featuring a lead wire termination, designed for professional sound capture across a broad 20 Hz to 20 kHz frequency range.
Its compact aluminium construction and 4.1 mm height enable easy integration into small electronic devices and instruments. The microphone’s omni-directional pattern facilitates sound pickup from all directions with an impressive signal-to-noise ratio of 57dB and a sensitivity of -42dB, suitable for accurate audio monitoring and recording applications.
Operated at a standard voltage of 2V DC and capable of withstanding up to 10V, it maintains high signal integrity with an output impedance of 2.2kΩ. The lead wire termination style with 25 mm UL1571 and 32 AWG wire allows straightforward solder termination for hassle-free installation.
With an operational temperature range from -20°C to 70°C, the microphone is well-suited for various industrial, laboratory, communication, and consumer electronics applications requiring precise audio input in compact form factors.
The microphone features an omni-directional pickup pattern for capturing sound from all directions. Operates at 2V DC with 10V maximum voltage tolerance. Sensitivity rating of -42dB for clear sound detection. Frequency response from 20 Hz to 20 kHz supports wide audio spectrum capture.
Low output impedance of 2.2kΩ to preserve signal quality. Signal-to-noise ratio of 57dB enhances audio clarity. Compact size with a 6 mm diameter and 4.1 mm height for easy integration. Aluminium body with wire terminal solder termination provides durability and ease of use.
Accepts supply current of 500μA with a 25 mm lead wire. Suitable for industrial, laboratory, communication, and consumer electronics applications.
RS PRO products are known for their quality, reliability, and compliance with industry standards including IEC 529 edition 2.0 and RoHS. This microphone is manufactured in Taiwan, Province Of China, ensuring adherence to global manufacturing standards.
Explore more Condenser Microphone components and sounder, buzzer & microphone assemblies at EnvMart for a wide array of industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensitivity of this microphone is rated at -42dB, which helps ensure precise sound capture.
This model supports a frequency response range from 20Hz to 20kHz, making it suitable for a wide array of audio applications.
The output impedance is 2.2kΩ, which helps maintain signal integrity during audio capture.
It features an omni-directional pickup pattern, allowing it to capture sound from all directions.
The maximum operating temperature for this microphone is 70°C, suitable for various environments.
It operates at a standard voltage of 2V DC and can withstand a maximum voltage of 10V.
This microphone has a compact diameter of 6 mm and a height of 4.1 mm, making it easy to integrate into small devices.
The signal-to-noise ratio is 57dB, which enhances audio clarity during recording and monitoring.
It requires a supply current of 500μA for operation.
The microphone is constructed with aluminium and features a wire terminal solder termination for ease of installation.
It complies with IEC 529 edition 2.0 and RoHS standards, ensuring adherence to industry regulations.
This microphone is manufactured in Taiwan, Province Of China, ensuring compliance with global manufacturing standards.
