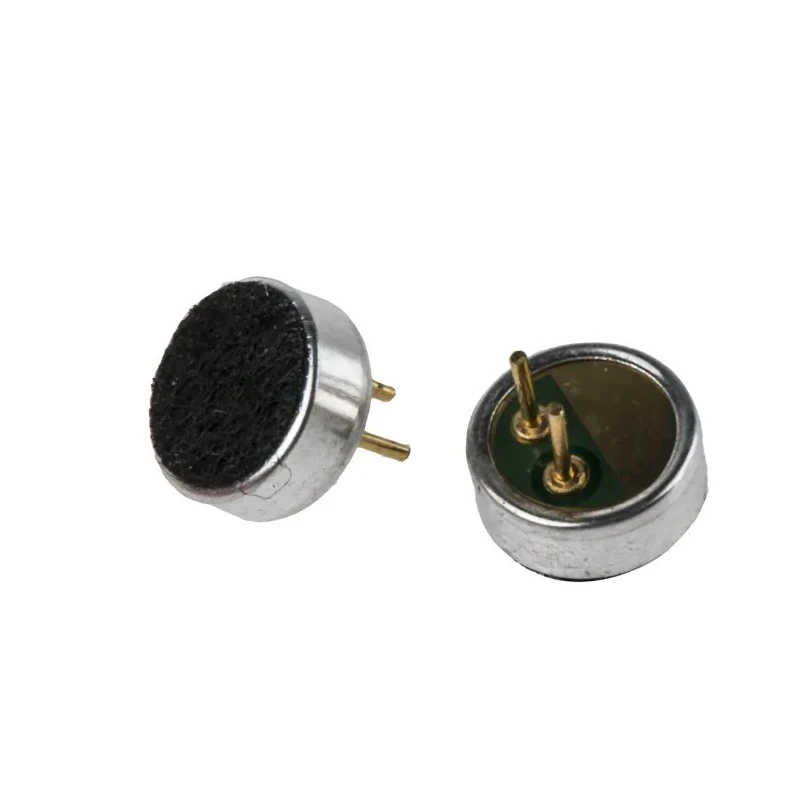

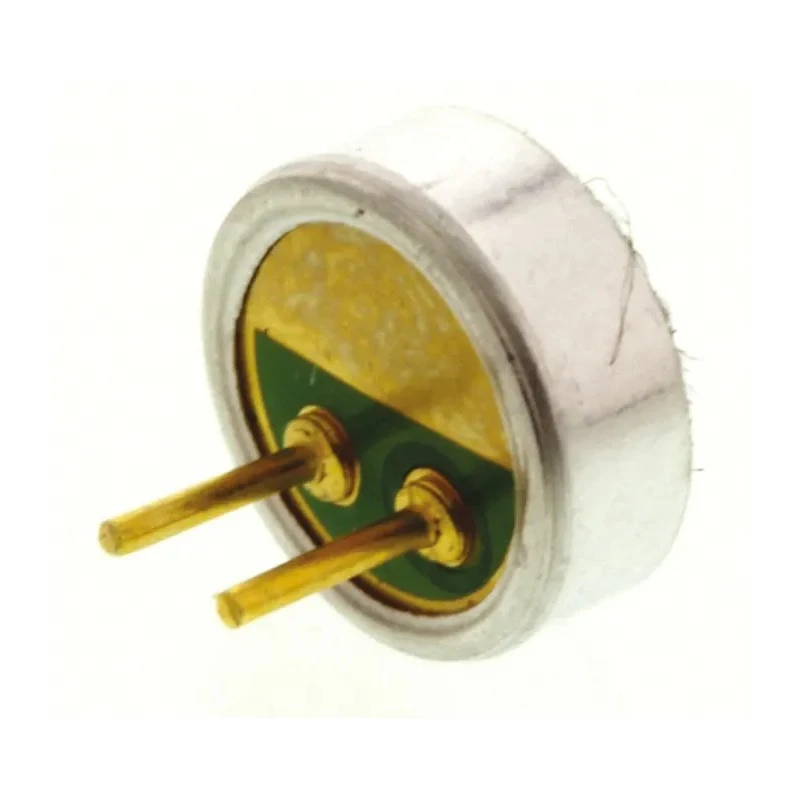

RS PRO Omni-Directional Through Hole 6 mm Microphone Condenser -40dB 2V 2.2kΩ 60dB Signal to Noise Ratio 724-3125
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 6mm |
| Brand | RS PRO |
| Height | 2.2mm |
| Model | 724-3125 |
| SENSITIVITY | -40dB |
| Mount Type | Through Hole |
| Output Impedance | 2.2kΩ |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Signal to Noise Ratio | 60dB |
| Maximum Frequency | 16kHz |
| Termination Style | Solder Pad |
| Supply Current | 500μA |
| Minimum Frequency | 100Hz |
| Directivity | Omni-Directional |
| Standard Operating Voltage | 2V |
| RS PRO Omni-Directional, Through Hole 6 mm Microphone Condenser -38dBBrand | RS PRO |
Key Features
- Omni-directional microphone condensers provide 360-degree sound capture.
- 6 mm diameter compact size is suitable for PCB mounting.
- Standard 2V operating voltage with 500μA supply current for low power consumption.
- Output impedance of 2.2kΩ ensures stable audio signal transmission.
- Signal to noise ratio of 60dB for clear audio capture with minimal background noise.
- Robust operating temperature range from -20°C to 70°C enables versatile environmental use.
- Solder pad termination style facilitates durable and reliable PCB connections.
- Manufactured in China with quality controls.
Product Description
The RS PRO 724-3125 is an omni-directional condenser microphone designed for through hole PCB mounting applications. Operating at 2 volts and consuming 500 microamps of supply current, this miniature device provides wide frequency response and enhanced signal clarity, making it ideal for various electronic and audio applications.
Its compact 6 mm diameter and low profile 2.2 mm height allow easy integration into tight circuit board layouts. The microphone features an output impedance of 2.2kΩ and a signal to noise ratio of 60dB to ensure high-fidelity audio output with minimal interference.
This microphone condenser covers a frequency range from 100Hz to 16kHz, suitable for capturing detailed sound spectra. It can operate reliably in temperatures ranging from -20°C to 70°C, enabling use in diverse industrial, laboratory, and consumer electronic environments.
The through hole mounting type with solder pad termination facilitates secure and reliable solder connections. The device requires a standard operating voltage of 2 volts and draws low current, making it energy efficient for use in portable or powered equipment.
Omni-directional sound pickup for full-area audio capture. Compact 6 mm diameter size fits space-constrained applications. 2V operating voltage with 500μA supply current maximizes energy efficiency. 2.2kΩ output impedance enables consistent audio transmission.
60dB signal to noise ratio provides clear sound quality. Wide frequency response from 100Hz to 16kHz. Operates between -20°C and 70°C for industrial reliability. Through hole mounting with solder pad termination assures strong connections.
Manufactured in China under RS PRO quality standards.
This condenser microphone is well suited for applications in audio electronics, communications equipment, laboratory instruments, and other precision audio capture uses. It supports industrial, laboratory, manufacturing, and electronic assembly uses where precise sound detection is required.
Explore more Condenser Microphones and precision audio components from RS PRO in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The microphone condenser has a diameter of 6 mm, making it suitable for compact applications.
It operates at a standard voltage of 2 volts, which contributes to its energy efficiency.
The output impedance is 2.2kΩ, ensuring stable audio signal transmission.
It features a signal to noise ratio of 60dB, providing clear audio capture with minimal background noise.
The frequency response ranges from 100Hz to 16kHz, allowing for detailed sound capture.
This microphone operates reliably in temperatures ranging from -20°C to 70°C.
It utilizes a through hole mounting type with solder pad termination for secure connections.
The microphone requires a supply current of 500μA, making it suitable for low power applications.
It is suitable for various applications including audio electronics, communications equipment, and laboratory instruments.
The height of this microphone is 2.2 mm, allowing for easy integration into tight circuit board layouts.
The sensitivity rating is -40dB, which contributes to its ability to capture sound effectively.
This microphone is manufactured in China under RS PRO quality standards.
