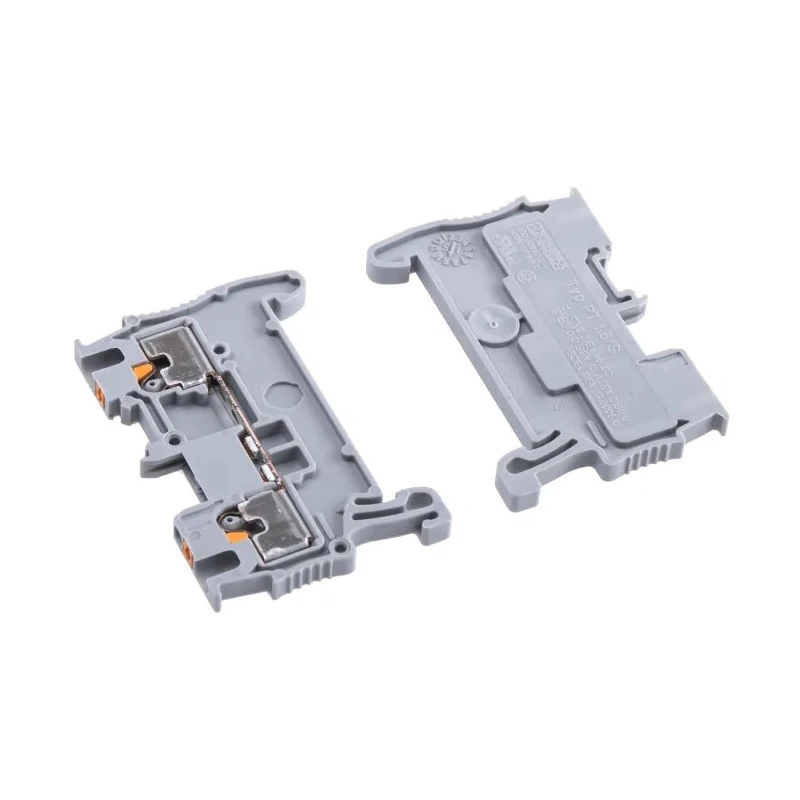

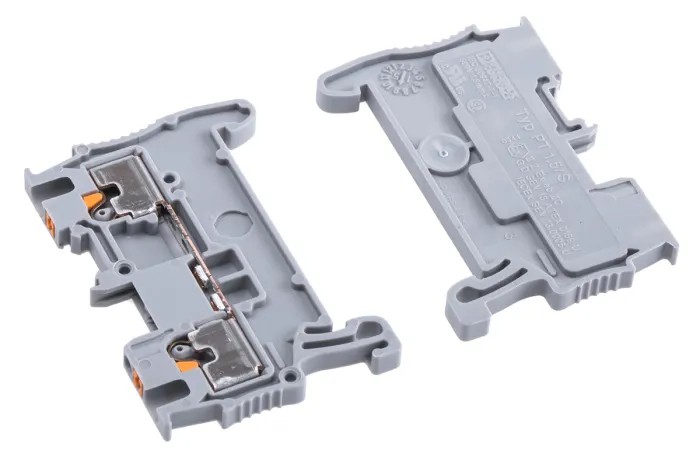

Phoenix Contact PT 1.5/S Series Feed Through Terminal Block Grey, 0.14mm² to 1.5mm², 1-Level, Push-in Termination 3208100
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 3208100 |
| Series | PT 1.5/S |
| Termination Type | Push-in |
| Maximum Operating Temperature | 105°C |
| Number of Levels | 1 |
| Sub Type | Feed Through |
| Minimum Operating Temperature | -60°C |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | ABS, ATEX, Bureau Veritas, CSA, cUL Recognised, cULus Recognised, EAC, EAC Ex, GL, IEC 60947-7-1, IECEE CB Scheme, IECEX, LR, NK, UL Recognised, VDE |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 14AWG |
| Cable CSA | 0.14, 1.5mm² |
| Terminal Block Current | 17.5A |
Key Features
- Compact grey terminal block designed for clean and efficient conductor connections.
- Push-in termination enables quick installation without special tools.
- Supports minimum wire size AWG 26 and maximum AWG 14.
- Rated for operating temperatures ranging from -60°C to 105°C for harsh environments.
- Certified to ATEX standards for safe use in hazardous areas.
- Equipped with high surge voltage rating of 6 kV to protect against voltage spikes.
- Insulated with durable Polyamide (PA) material for excellent electrical resistance.
- Compliant with multiple international standards including IEC 60947-7-1 and UL Recognised.
Product Description
The Phoenix Contact 3208100 PT 1.5/S Series Feed Through Terminal Block is engineered to provide secure and efficient electrical connections in industrial, railway, manufacturing, and heavy-duty plant machinery applications. This grey terminal block accepts wire sizes from 0.14mm² up to 1.5mm² and supports AWG 26 to AWG 14, making it versatile for medium-to-high power installations.
With a voltage rating of 500 V and a continuous current rating of 17.5 A, the terminal block ensures safe and reliable operation. Its push-in termination technology allows quick conductor insertion without the need for specialized tools, reducing installation time significantly.
The product features a robust Polyamide (PA) insulation that provides excellent electrical resistance and safety. It withstands operating temperatures from -60°C to +105°C, suitable for severe environmental conditions. Additionally, the device has a high surge voltage rating of 6 kV to protect electrical systems against transient surges.
Certified with multiple approvals including ATEX for hazardous areas, IECEX, UL Recognised, CSA, and VDE, this terminal block complies with rigorous international standards to guarantee durability and safety.
The PT series offers easy bridging options with multi-conductor terminals and benefits from 50% lower insertion forces, further facilitating wiring work in tight spaces. Its compact design (3.5 mm width, 30.5 mm height, and 45 mm length) makes it ideal for installation in small enclosures.
Compact grey feed-through design for neat wiring. Push-in termination for tool-free quick connection. Supports a broad wire range for flexible applications. Polyamide insulation enhances electrical safety. Wide temperature range for harsh industrial conditions.
Multiple certifications ensure safe deployment in hazardous environments. High surge resistance safeguards electrical systems. Lightweight and ergonomic for easier handling. Complies with IEC 60947-7-1 standards for terminal blocks.
This product is made in Germany and is designed for demanding industrial environments requiring reliable DIN rail mounted terminal blocks. It helps maintain clean, secure, and efficient conductor management in manufacturing, railway, automation, and power systems.
Explore a broad range of DIN Rail Terminal Blocks and complementary products on EnvMart for industrial and electrical installation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block has a voltage rating of 500 V, ensuring safe operation in various applications.
This model has a continuous current rating of 17.5 A, suitable for medium-to-high power installations.
It supports wire sizes from 0.14 mm² to 1.5 mm², equivalent to AWG 26 to AWG 14.
The terminal block operates within a temperature range of -60°C to +105°C, making it suitable for harsh environments.
It features push-in termination, allowing for quick and tool-free conductor insertion.
Yes, it is certified to ATEX standards, making it safe for deployment in hazardous environments.
The terminal block is insulated with durable Polyamide (PA) material, providing excellent electrical resistance.
This unit has a compact design with dimensions of 3.5 mm in width, 30.5 mm in height, and 45 mm in length.
It complies with multiple standards including IEC 60947-7-1, UL Recognised, and CSA, among others.
The terminal block has a high surge voltage rating of 6 kV, protecting against voltage spikes.
It features a single-level design, which simplifies wiring in tight spaces.
This product is made in Germany, ensuring adherence to high manufacturing standards.
