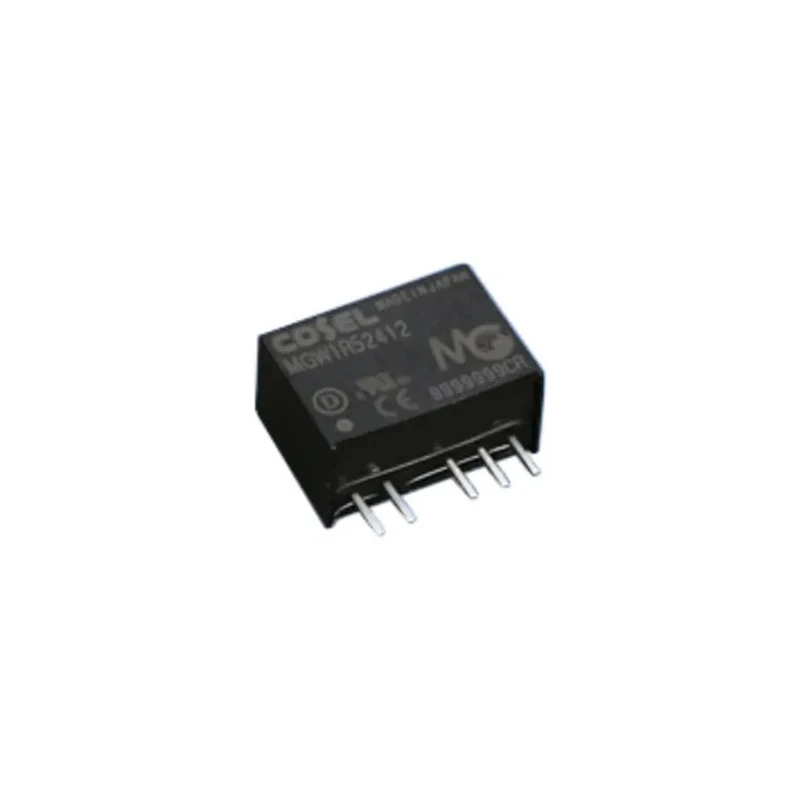

Cosel High-Performance DC/DC Converter, Dual Output 12V dc & -12V dc, 65 mA, 24V dc Input, 1.56W Power, SIP-6 PCB MGW1R52412
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | Converters / DC-DC Converters Cosel MGW DC/DC Converter, 12V dc, -12 V dc/ 65 mA |
| Brand | Cosel |
| Efficiency | 82% |
| Length | 17mm |
| Model | MGW1R52412 |
| Depth | 12mm |
| Gross Weight | 4g |
| Width | 8.5mm |
| Mount Type | PCB |
| Series | MGW |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP-6 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Ripple and Noise | 200mV Pk-Pk |
| Maximum Output Power | 1.56W |
| Maximum Input Voltage | 24V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 5 |
| Output Voltage 1 | 12, -12V dc |
| Output Current 1 | 65mA |
| Output Voltage Adjustment Range | 11.64 to 12.36 V |
| Isolation Voltage | 1kV dc |
| Output Current 2 | 0.05A |
| Output Voltage 2 | 30V |
Key Features
- Supports input voltage range from 18V dc to 24V dc.
- Dual outputs provide 12 V dc and -12 V dc at 65 mA output current.
- Isolation voltage of 1kV dc for enhanced safety and noise immunity.
- Compact SIP-6 package for PCB mounting with dimensions 17mm x 8.5mm x 12mm.
- Wide operating temperature range from -40°C to 85°C.
- High efficiency converter rated at 82%.
- Ripple and noise rating of 200mV peak-to-peak.
- Compliant with RoHS and international safety standards including UL and CE.
Product Description
The Cosel MGW1R52412 is a high-performance DC/DC converter designed for industrial, electronic, and power supply applications requiring reliable dual voltage outputs. It converts a DC input voltage ranging from 18V to 24V to dual stabilized DC output voltages of 12V and -12V at output currents of 65 mA and 50 mA respectively. The device operates at a maximum output power of 1.56W which makes it suitable for low power electronic circuits.
This SIP-6 package device is designed for mounting on printed circuit boards, providing compactness with dimensions of 17mm length, 8.5mm width, and 12mm depth, and weighs just 4 grams. The isolation voltage of 1kV dc ensures safety and noise immunity, essential for sensitive electronic applications.
The converter boasts an efficiency of 82%, significantly reducing energy loss and thermal dissipation, while operating reliably within an ambient temperature range from -40°C to 85°C, catering to demanding industrial environments. It features a low ripple and noise of 200 mV peak-to-peak, preserving the integrity of sensitive signals.
Cosel MGW series converters comply with international safety and environmental standards including RoHS, UL60950-1, UL62368-1, CSA, CE, UKCA, and EN 62368-1 certifications. This makes it a reliable choice for globally distributed products.
This DC/DC converter is ideal for use in electronics components manufacturing, industrial automation, instrumentation, telecommunications, and embedded systems where dual voltage supply rails are required.
Supports input voltages from 18V to 24V dc. Dual output voltages of 12V dc and -12V dc for versatile applications. Maximum output power rating of 1.56 watts for efficient low power use. Compact SIP-6 PCB mount package with small footprint.
Isolation voltage of 1kV dc enhances safety and noise immunity. Wide operating temperature range from -40°C to 85°C. High efficiency of 82% reduces power loss and heat generation. Compliance with RoHS and multiple global safety standards guarantees market acceptance.
Lightweight design (4g) facilitates integration into compact assemblies. Explore more DC-DC Converters and power supply solutions at EnvMart for your industrial, laboratory, telecom, and commercial electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V dc to 24V dc.
This unit provides dual output voltages of 12V dc and -12V dc.
The maximum output power rating of this converter is 1.56W.
It has an efficiency rating of 82%, which helps reduce energy loss.
The isolation voltage of this converter is 1kV dc, enhancing safety and noise immunity.
The dimensions of the SIP-6 package are 17mm in length, 8.5mm in width, and 12mm in depth.
This model weighs 4 grams, making it lightweight for integration into assemblies.
It operates within a temperature range from -40°C to 85°C.
The ripple and noise rating is 200mV peak-to-peak, which is suitable for sensitive applications.
This converter has two outputs: one at 65mA for 12V dc and another at 50mA for -12V dc.
It complies with multiple safety standards including RoHS, UL60950-1, UL62368-1, CSA, CE, UKCA, and EN 62368-1.
This unit is designed for PCB mounting, utilizing a compact SIP-6 package.
