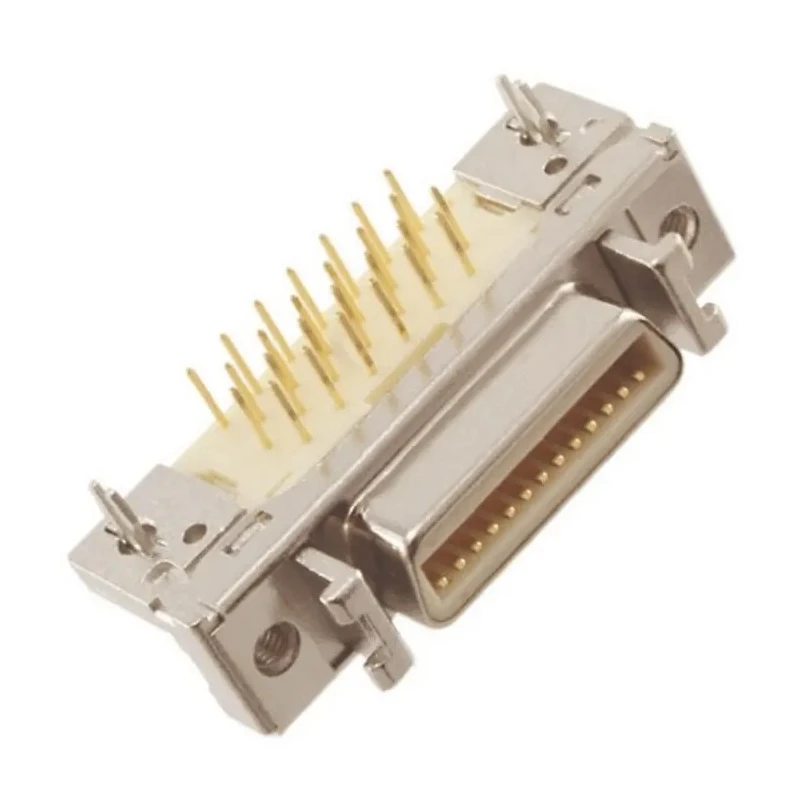

3M MDR 102 26 Way Right Angle 1.27 mm Pitch Through Hole D-Sub Connector M2.5 Screw Female N10226-52B2PC

3M N10226-52B2PC MDR 102 series is a 26 way right angle through hole D-Sub connector designed for reliable high-density interconnection needs. This connector features a 1.27 mm pitch and uses a metal body to ensure ruggedness and durability in industrial and electronic applications.

The contacts are made from copper alloy and plated with gold over nickel to provide excellent conductivity and corrosion resistance. The housing is constructed from fibreglass reinforced polyethylene terephthalate, engineered for robust mechanical strength and thermal endurance spanning -55°C to 105°C.

This D-Sub Connector utilizes solder termination to guarantee secure electrical connections to printed circuit boards in diverse environments including industrial computing systems, medical devices, and telecommunications equipment. The through hole mount type combined with right angle orientation allows for efficient board space utilization and lasting mechanical stability.

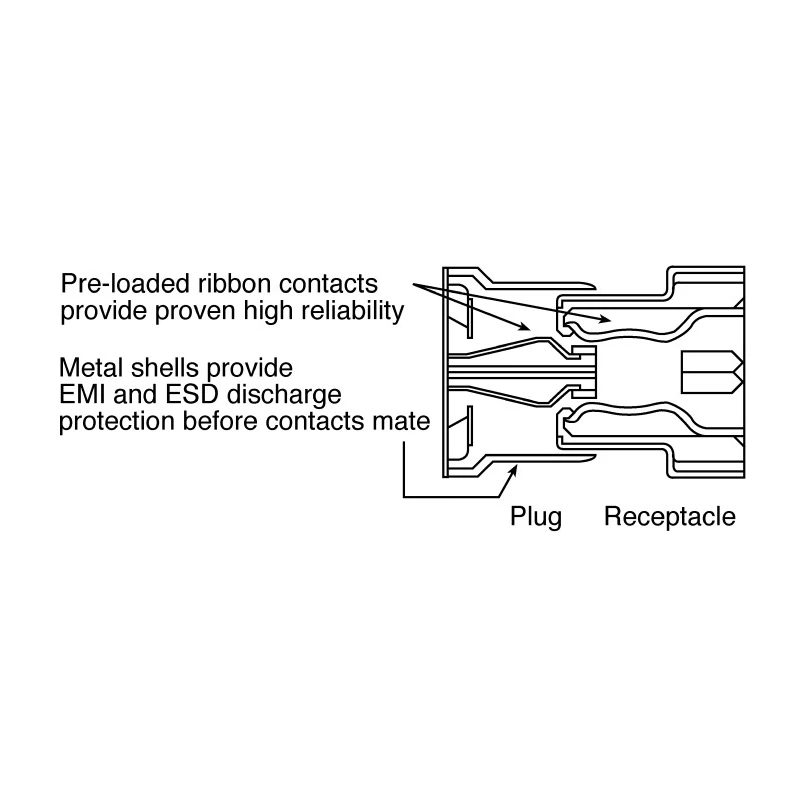

Designed as part of the MDR 102 series of Mini Delta Ribbon (MDR) connectors, it includes an interface latch and metal casing to resist mechanical stresses and maintain stable connections under repetitive plugging cycles. The M2.5 screw mounting hardware enhances retention for panel mounting applications.

These features make it highly suitable for harsh environments requiring stable, high-density connections. The connector supports currents up to 1 amp and voltages up to 500 volts, making it versatile for power and signal interconnections.

Manufactured in Japan, this model exemplifies 3M's commitment to precision and quality in connector systems for industrial, laboratory, manufacturing, and commercial electronics sectors.

Offers 26 contact points for robust signal connections. Right angle orientation optimizes PCB space utilization. Constructed with copper alloy contacts plated in gold over nickel for durability. Uses a fibreglass reinforced polyethylene terephthalate housing for strength and thermal resistance.

Rated for 1 amp current and voltage up to 500 volts. Supports operating temperatures from -55°C to 105°C. Includes solder termination for secure electrical connections. Metal-bodied design with an interface latch improves mechanical stability.

Complies with MDR 102 series design standards, suitable for industrial and computing electronics. Manufactured in Japan ensuring high-quality standards. Equipped with M2.5 screw mounting hardware for secure PCB retention.
