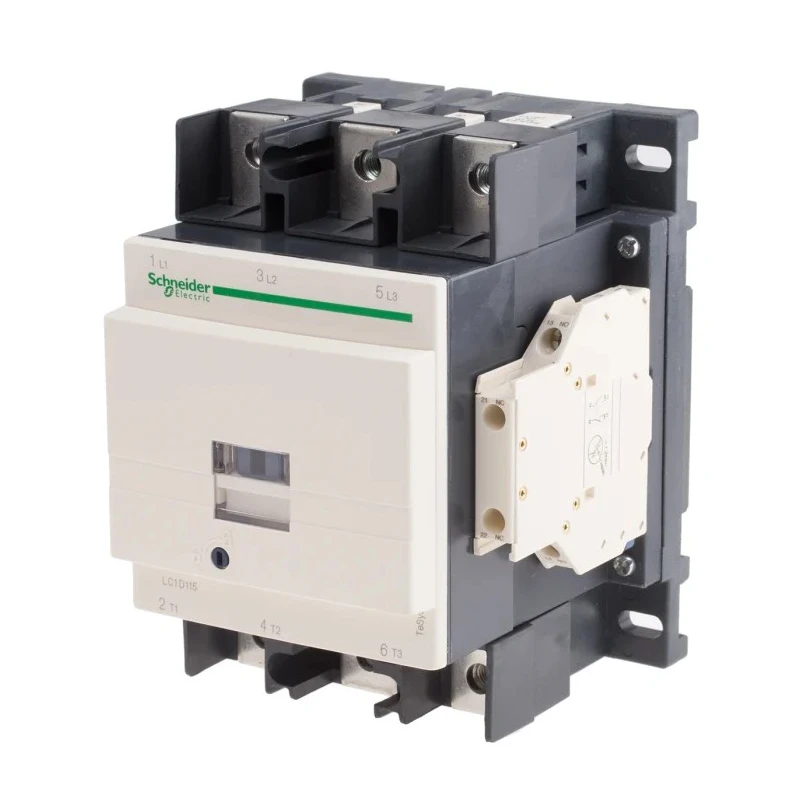

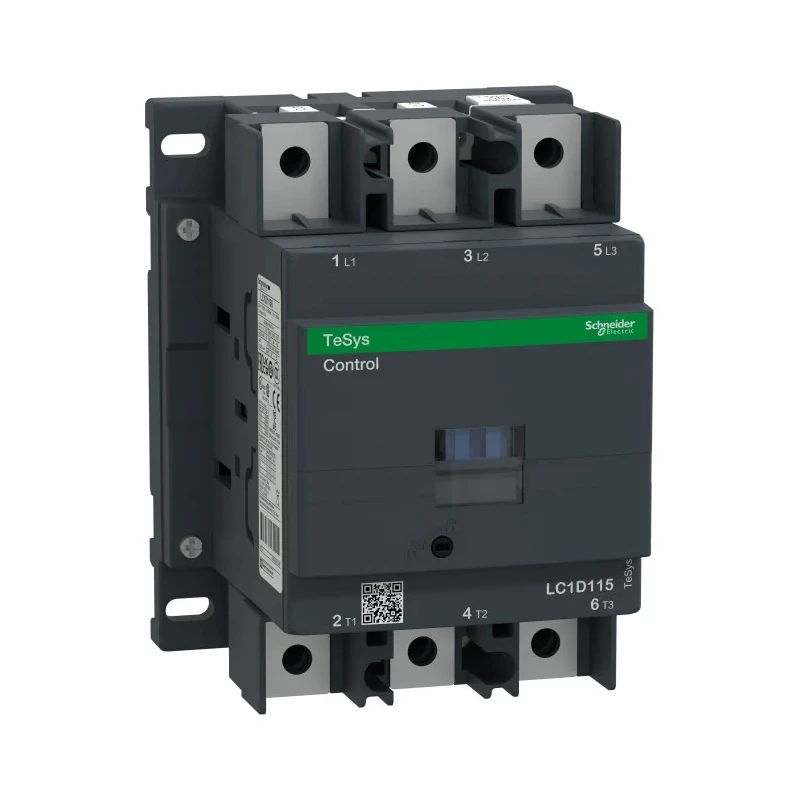

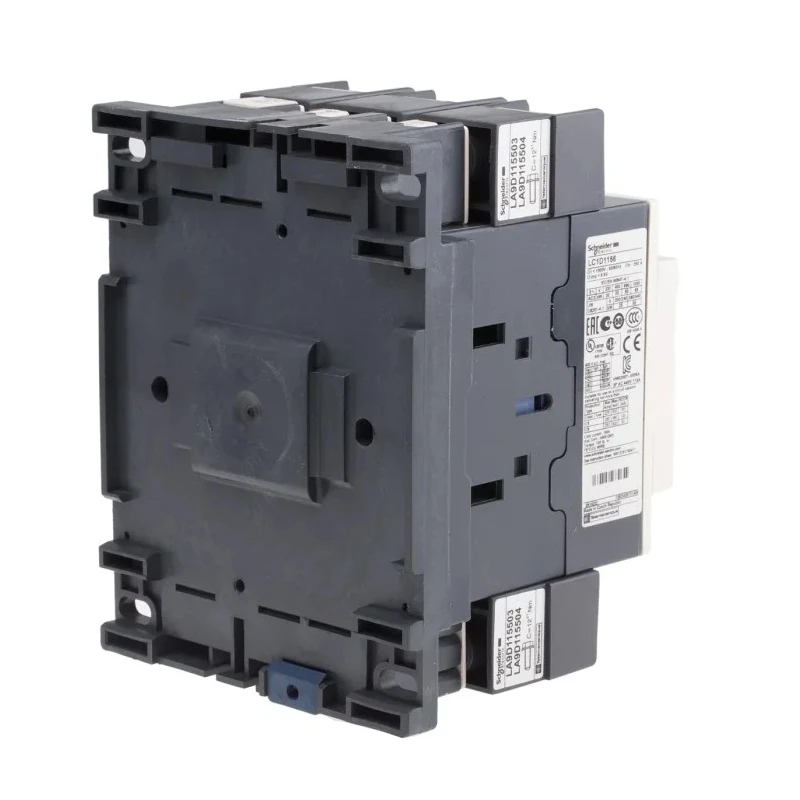

Schneider Electric LC1D TeSys D Contactor, 3-Pole, 400V AC Coil, 115 A, 30 kW 415V, 3 NO, 1kV AC LC1D1156N7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 158mm |
| Model | LC1D1156N7 |
| Depth | 136mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 30kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Lug Ring |
| Number of Poles | 3 |
| Standards/Approvals | IEC 61095 |
| Contact Voltage | 1kV ac |
| Coil Voltage | 400V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 115A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 115A |
| Control Circuit Voltage Uc | 415V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3P |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 3-pole, 115A contact current rating suitable for robust electrical loads.
- Power rating of 30 kW at 415V, ideal for motor control and resistive load applications.
- Features 3 normally open (NO) contacts and 2 auxiliary contacts configured as 1 NO and 1 NC.
- Constructed for DIN rail mounting with IP20 finger-safe terminals ensuring user protection.
- Operates within temperature range of -40°C to 60°C for versatility in various environments.
- Complies with IEC 61095 standards ensuring international quality and safety standards.
- Includes lug ring terminal types for secure and reliable electrical connections.
- Designed with a bidirectional peak limiting diode suppressor to protect the coil during operation.
Product Description
Schneider Electric LC1D1156N7 is a 3-pole TeSys D Contactor designed with a 400V AC coil, rated for 115A contact current and a power rating of 30 kW at 415V. This contactor is suitable for motor control and resistive load applications, providing reliable and efficient switching.
The product features a built-in auxiliary contact block with 1 normally open (NO) and 1 normally closed (NC) contact for enhanced switching capabilities. It is engineered for DIN rail mounting and includes IP20 finger-safe terminals with both North American and international terminal markings for safety and compliance.
Designed to operate in harsh environments, the contactor functions reliably between -40°C and 60°C. The device complies with IEC 61095 standards, ensuring high performance and safety in industrial control systems.
Additional protections include a bidirectional peak limiting diode suppressor that safeguards the coil against voltage spikes, extending the operational life of the contactor.
The LC1D1156N7 contactor is ideal for use in industrial automation, manufacturing motor starters, HVAC systems, and various commercial and automation control applications. The product supports a wide range of duties, including AC-1 category for resistive loads and AC-3 category for motor starting and stopping under load.
3-pole contactor with 115A contact current capacity. Power rating of 30 kW at 415V for versatile industrial applications. 2 auxiliary contacts configured 1 NO / 1 NC for additional control functions. DIN rail mount type with lug ring terminal connections for convenience and safety.
Operates in temperature range from -40°C to 60°C suitable for diverse environments. IP20 finger-safe terminals with dual terminal markings for global compliance. Bidirectional peak limiting diode for coil protection enhances longevity.
Meets IEC 61095 standards assuring quality and international safety compliance.
Set includes the Schneider Electric LC1D TeSys D Contactor model LC1D1156N7. This unit provides durable and efficient switching solutions for industrial, manufacturing, HVAC, and automation control applications. Browse more Contactors and electrical components at EnvMart to find the best fit for your projects and installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schneider Electric LC1D1156N7 has a contact current rating of 115A.
It has a power rating of 30 kW at 415V.
This unit features a 3-pole configuration.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
The dimensions are 158mm in length, 120mm in width, and 136mm in depth.
It operates within a temperature range of -40°C to 60°C.
It features IP20 finger-safe terminals with lug ring connections.
The product complies with IEC 61095 standards.
It is suitable for motor control and resistive load applications.
This model is designed for DIN rail mounting.
The coil voltage is 400V AC.
It includes a bidirectional peak limiting diode suppressor to protect the coil during operation.
