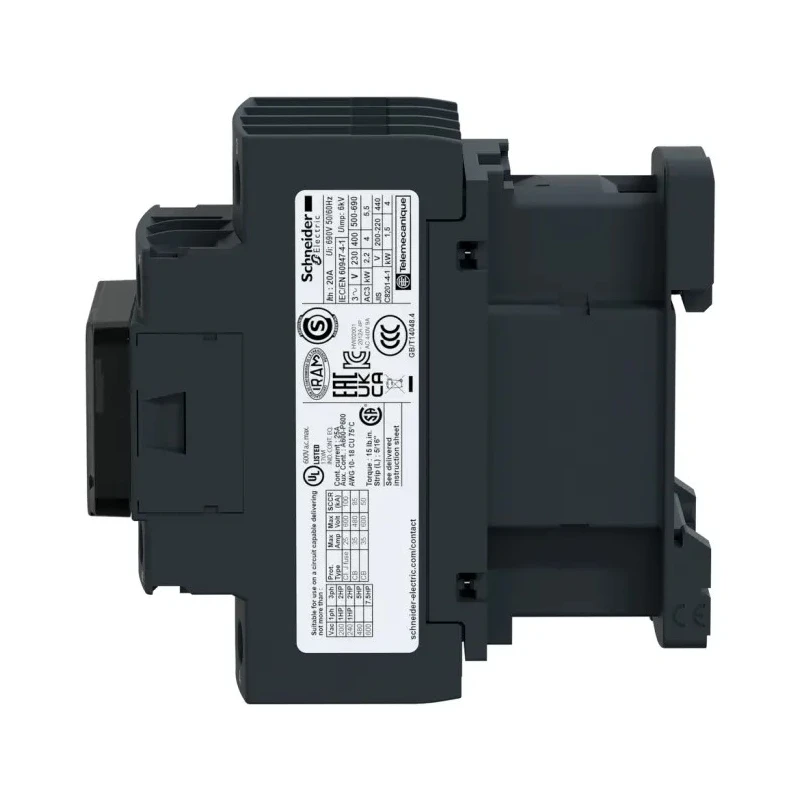

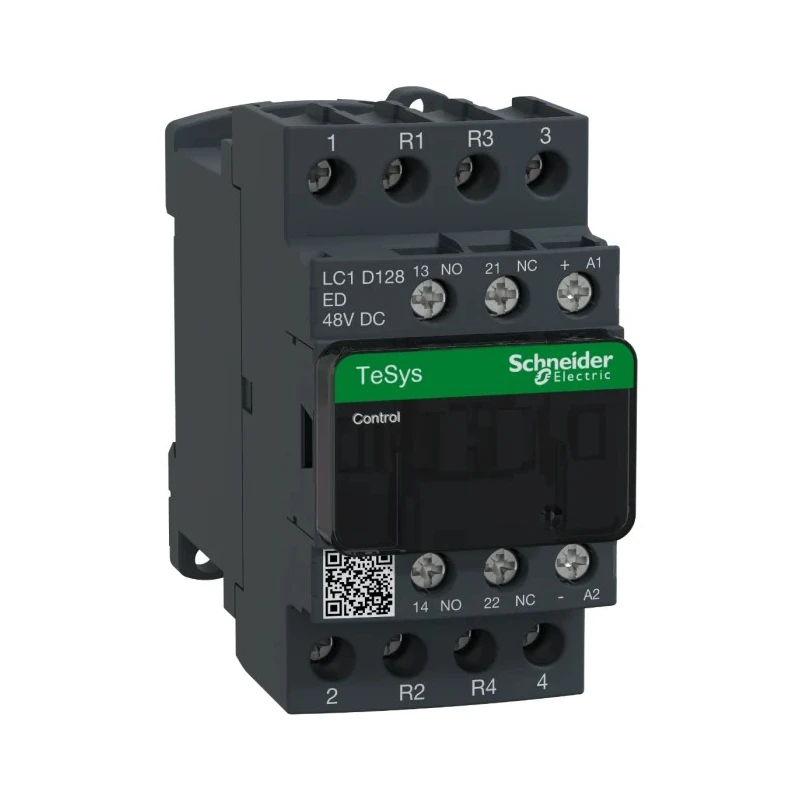

Schneider Electric TeSys D Contactor, 48V DC Coil, 4-Pole, 25 A, 2 NO/2 NC, 690V AC/DC LC1D128ED
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 85mm |
| Model | LC1D128ED |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | RoHS |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 48V dc |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 48V dc |
| Contactor Application | Safety |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- The contactor features 2 normally open and 2 normally closed contacts for versatile switching.
- It is designed for use in motor starters and resistive load applications with high reliability.
- Compact design permits DIN rail mounting with screw clamp terminals for secure connections.
- Operational temperature range from -40°C to 60°C ensures durability in harsh environments.
- Equipped with a transient suppressor module to protect the coil and enhance lifespan.
- Includes 1 NO and 1 NC auxiliary contacts built-in with mirror certification for safety.
- Complies with international standards including IEC, UL, CSA, CCC, EAC, and Marine certifications.
- Supports operational rates up to 3600 cycles per hour for demanding industrial use.
Product Description
Schneider Electric LC1D128ED TeSys D Contactor is engineered for industrial and commercial motor control applications. It features a 48V DC coil and 4-pole configuration supporting 25A contact current with 690V AC/DC contact voltage, suitable for resistive and motor control loads.
This contactor offers high reliability and exceptional durability with an operational temperature range from -40°C to 60°C. It employs screw clamp terminals enabling secure and safe electrical connections with IP20 finger-safe protection and internationally recognized terminal markings.
Designed for easy installation, it supports DIN rail mounting or screw fixing in compact form factors with dimensions of 85mm length, 45mm width, and 99mm depth. The incorporated transient suppressor module protects the coil, ensuring longevity and reducing electrical noise.
The device incorporates 2 normally open and 2 normally closed power contacts alongside 1 NO and 1 NC auxiliary contacts built-in with mirror certification, enhancing safety and versatility in control circuits. It supports operational rates of up to 3600 cycles per hour, making it suitable for rigorous industrial environments.
This contactor conforms to multiple global standards including IEC, UL, CSA, CCC, EAC, and Marine certifications, reflecting its quality and compliance for worldwide applications. It is a Green Premium product meeting RoHS and REACh environmental directives, supporting sustainability in industrial automation.
The contactor is a versatile solution for motor starters, resistive loads, and control gear applications. Its compact size makes it ideal for space-constrained electrical panels. High mechanical and electrical life cycles provide consistent performance and reliability.
The screw terminal design facilitates simple wiring and maintenance. It withstands shocks and vibrations, suitable for demanding industrial conditions. Designed with the environment in mind, it complies with RoHS/REACh standards.
Auxiliary contacts enhance the control capabilities within automation systems.
Schneider Electric TeSys D contactors represent a robust choice for industrial, manufacturing, HVAC, and automation systems requiring high performance and safety. Explore our full range of Schneider Electric Contactors and control devices at EnvMart for reliable and certified electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact voltage rating of this model is 690V AC/DC.
The coil voltage for this contactor is 48V DC.
This contactor features a 4-pole configuration.
It can handle a maximum contact current of 25A.
The dimensions are 85mm in length, 45mm in width, and 99mm in depth.
It supports DIN rail mounting or screw fixing for installation.
The operational temperature range is from -40°C to 60°C.
It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact.
It complies with various international standards including IEC, UL, CSA, CCC, EAC, and Marine certifications.
It supports operational rates of up to 3600 cycles per hour.
It utilizes screw clamp terminals with IP20 finger-safe protection.
It is designed for motor control and resistive load applications, suitable for industrial and commercial use.
