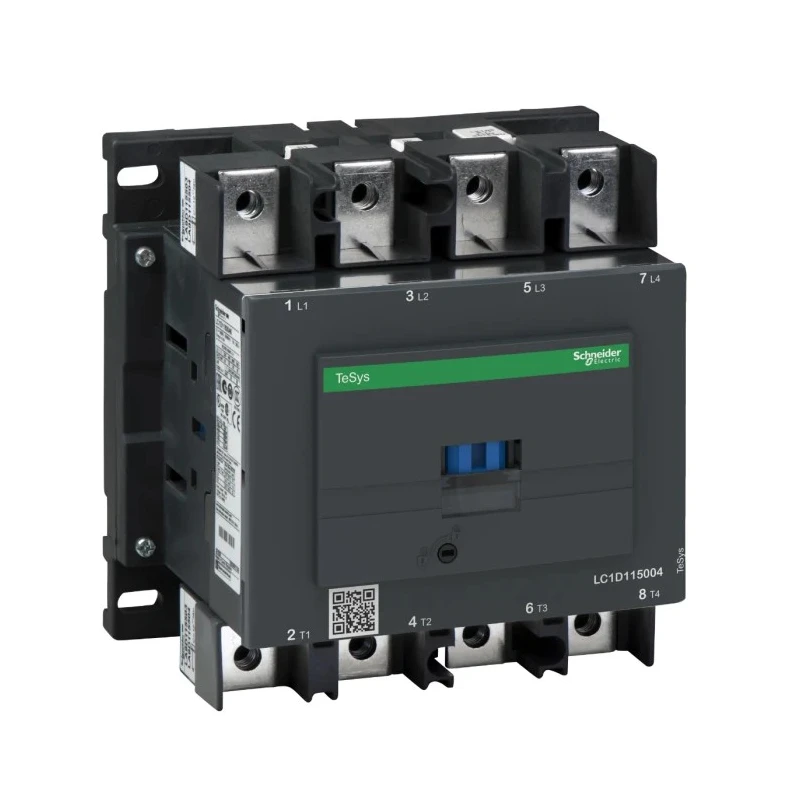

Schneider Electric LC1D Contactor, 110V AC Coil, 4-Pole, 115A Contact Current, 1kV AC Contact Voltage LC1D1150046F7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Resistive Load |
| Length | 158mm |
| Model | LC1D1150046F7 |
| Depth | 115mm |
| Width | 155mm |
| Series | LC1D |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Lug Ring |
| Number of Poles | 4 |
| Contact Voltage | 1kV ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 4 NO |
| Contact Current | 115A |
| Operational Current Ie | 200A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Resistive Load |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 4-pole configuration for versatile switching capacity.
- Supports contact current up to 115A and contact voltage of 1kV AC.
- Features IP20 finger-safe screw connections with North American and International markings.
- Operates reliably within temperatures ranging from -40°C to 70°C.
- Designed for easy mounting on panels or DIN rails with flexible control circuits.
- Complies with IEC 60947 and UL 508 international standards for safety and performance.
- Utilization categories AC-1 and AC-3 suitable for resistive loads and motors respectively.
- Constructed for high resistance to shock and vibration ensuring long mechanical and electrical life.
Product Description
Schneider Electric LC1D1150046F7 contactor, equipped with a 110V AC coil and a 4-pole configuration, is engineered for reliable switching of resistive loads and motor control applications. It offers a contact current rating of 115A at 1kV AC contact voltage, suitable for demanding industrial environments.
The contactor features IP20 finger-safe screw connections marked for both North American and international standards. This design enhances operational safety and ease of installation, allowing mounting on panels or DIN rails. The flexible control circuit design adapts to a wide range of application needs.
Operating temperature range from -40°C to 70°C ensures dependable performance in various environments. The product complies with key international standards including IEC 60947-5-1, EN 60947-4-1, CSA C22.2 No 14, and UL 508, certifying its safety and interoperability in industrial setups.
The utilization categories AC-1 and AC-3 define the contactor's suitability for resistive loads, heating, distribution, and squirrel cage motor operations where breaking occurs during motor running. These categories highlight the contactor’s versatility across multiple applications including lifts, escalators, conveyors, compressors, pumps, mixers, and air conditioning systems.
Designed for industrial, automation, and commercial electrical applications, this contactor offers high resistance to shock and vibration resulting in a long mechanical and electrical life. It is part of the Schneider Electric TeSys D range, known for its double break pole type contactors using linear translation movement for enhanced performance.
Equipped with 4 poles and supports 4 NO contacts. Screw connections provide easy and safe installation. Suitable for motor starters, resistive loads, and HVAC controls. Built for high reliability and compliance with international standards.
Flexible mounting options including panel and DIN rail installation. Control circuit voltage: 110V AC ensuring compatibility with common industrial systems. Designed for applications requiring durable performance under shock and vibration.
Includes auxiliary contact blocks and surge suppressor options as accessories. Discover reliable Contactors for your automation and control gear needs with Schneider Electric offerings at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contactor has a contact current rating of 115A.
This model operates with a coil voltage of 110V AC.
The maximum contact voltage supported by this contactor is 1kV AC.
It operates reliably within a temperature range of -40°C to 70°C.
This contactor is equipped with a 4-pole configuration.
It is suitable for resistive loads and squirrel cage motors, classified under utilization categories AC-1 and AC-3.
The dimensions are 158mm in length, 155mm in width, and 115mm in depth.
It features IP20 finger-safe screw connections with both North American and International markings.
It can be easily mounted on panels or DIN rails.
The operational current rating for this contactor is 200A.
It complies with IEC 60947-5-1, EN 60947-4-1, CSA C22.2 No 14, and UL 508 standards.
It includes options for auxiliary contact blocks and surge suppressors as accessories.
