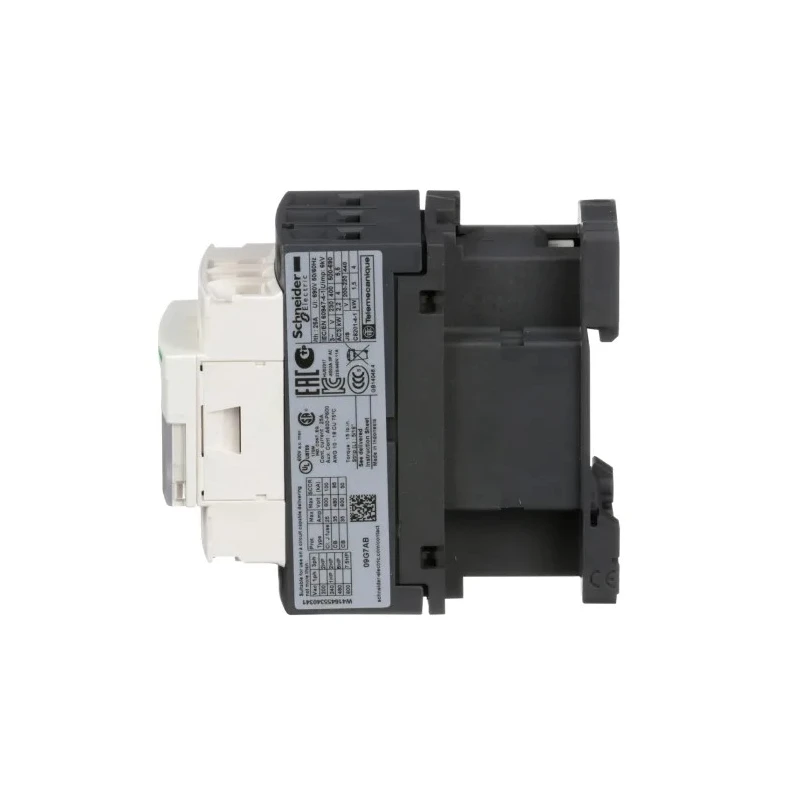

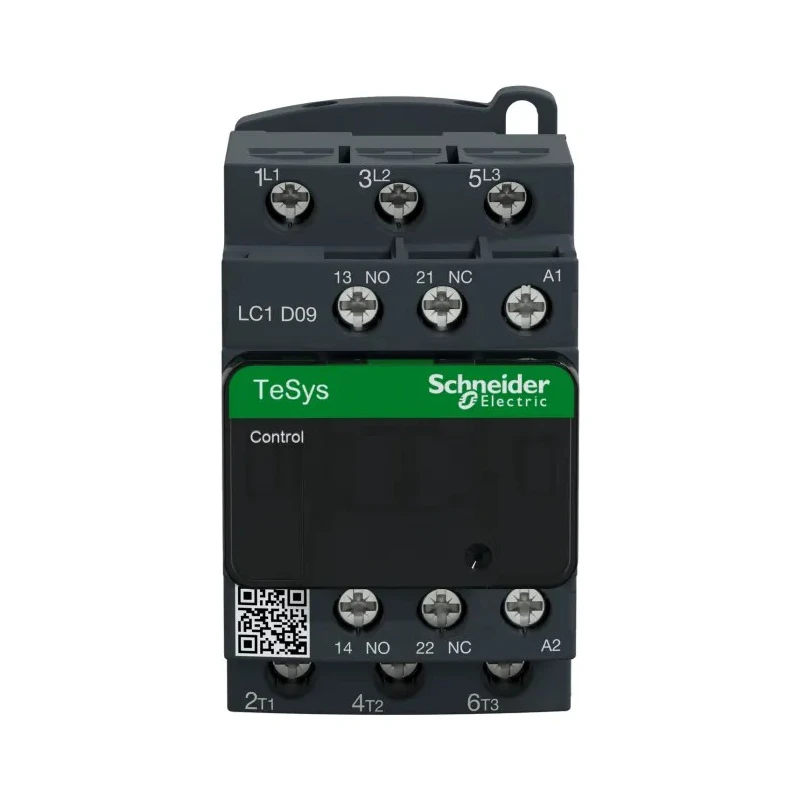

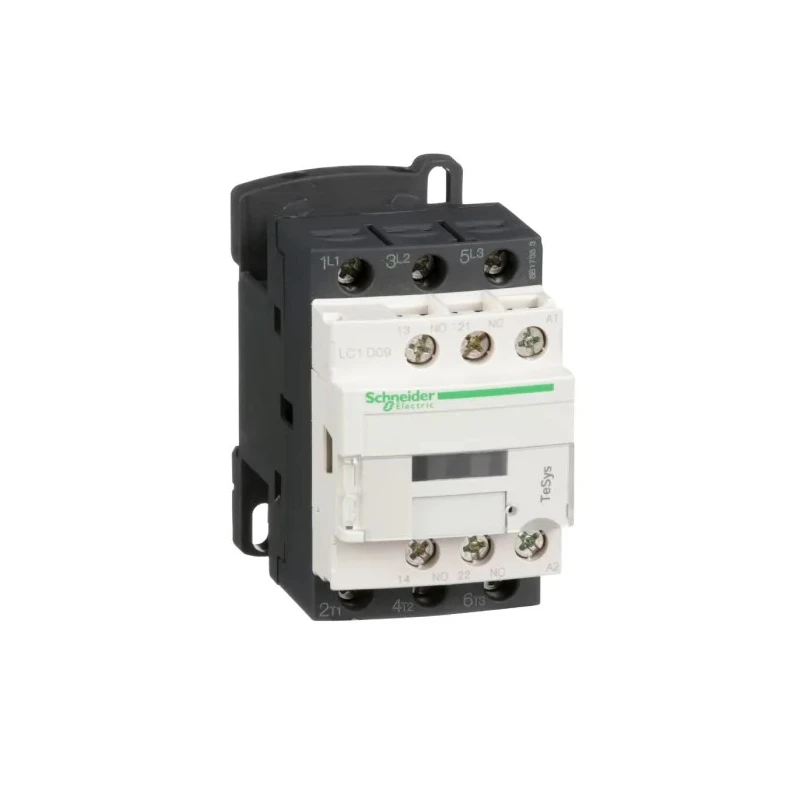

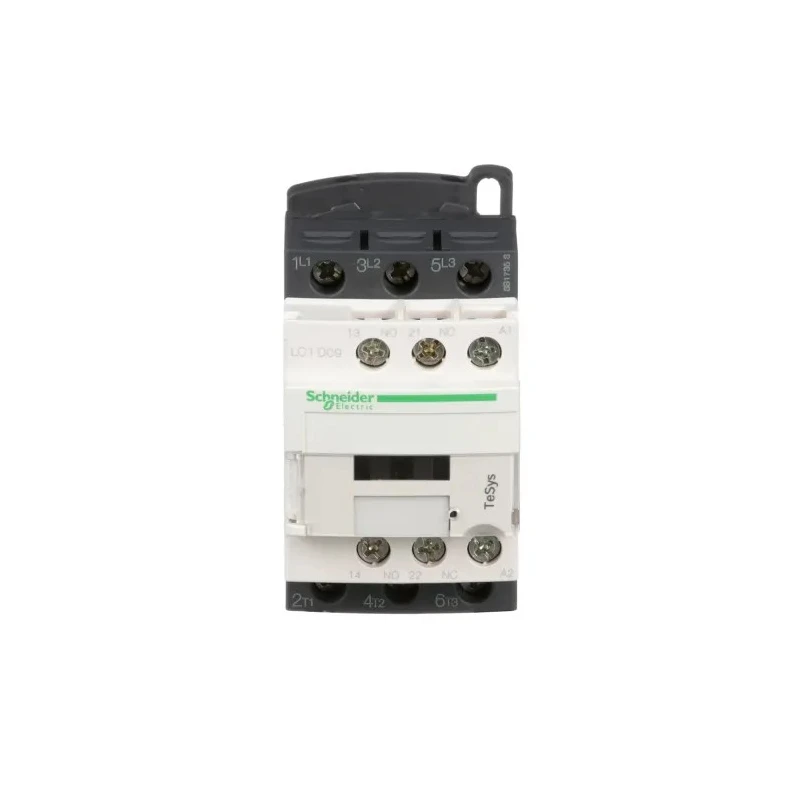

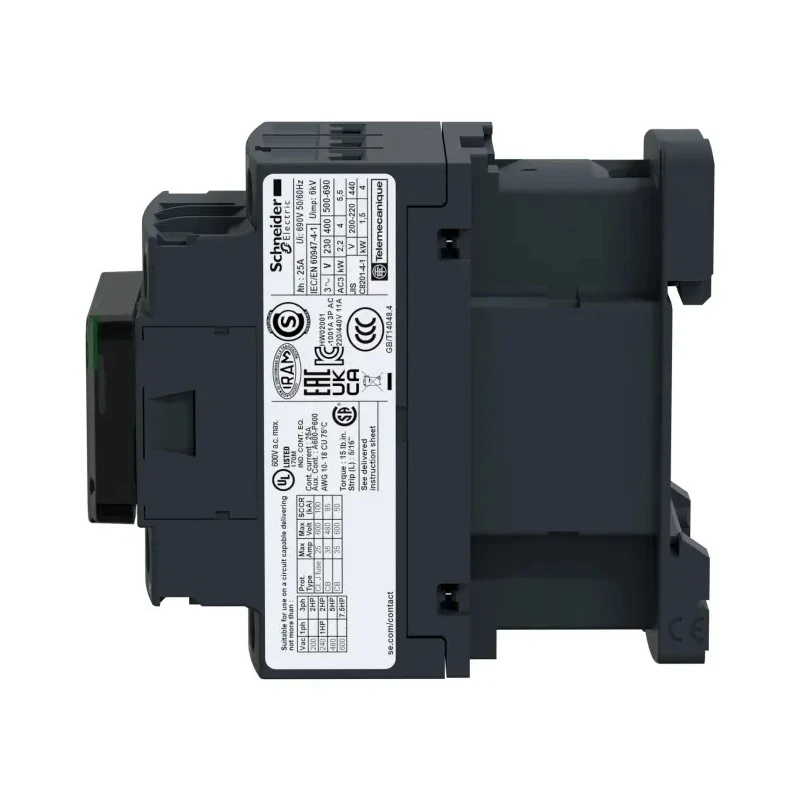

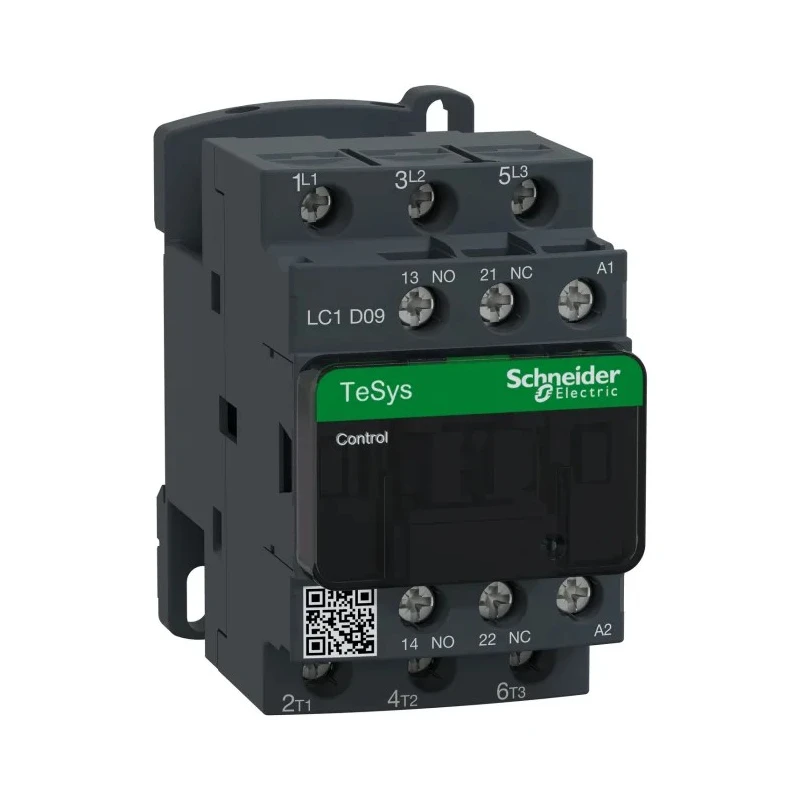

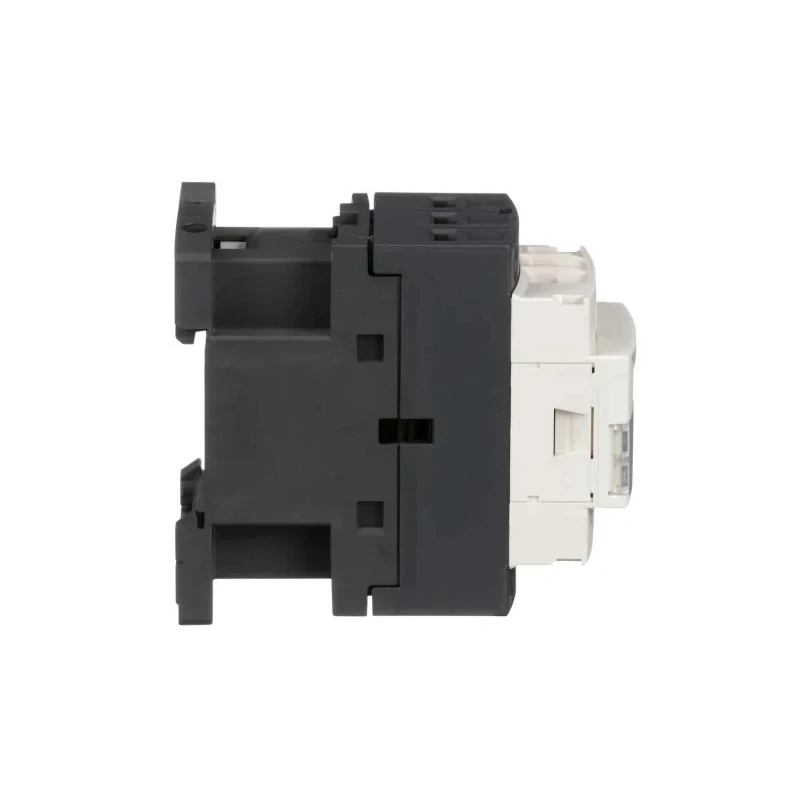

Schneider Electric Reversing Contactor 3-Pole 9A 5.5kW 120V ac Coil LC1D

Schneider Electric LC1D09G7 is a 3-pole reversing contactor designed for robust motor control applications with a 9 ampere contact current and 5.5 kW power rating. It operates with a coil voltage of 120V AC and supports a maximum contact voltage of 690V AC/DC, suitable for industrial automation and control gear integration.

The contactor's compact dimensions (45mm length, 77mm width, 86mm depth) allow efficient use of limited panel space and are designed for DIN rail mounting. The device is equipped with screw terminals that provide reliable and secure electrical connections, minimizing maintenance needs.

This product offers versatility through three normally open contacts and two auxiliary contacts configured as one normally open and one normally closed, enabling various control logic implementations. It supports motor control and resistive loads, making it suitable for diverse electrical circuit requirements.

With an operational temperature range from -40°C to +70°C, the contactor performs effectively in a wide range of environmental conditions, including harsh industrial settings. It conforms to IEC 61095 standards, ensuring compliance with recognized safety and performance criteria.

Typical applications include motor control in automation systems, reversing motor operation, and use in commercial and machinery sectors demanding dependable switching solutions. The product’s better world claim highlights its design for disassembly, supporting sustainability goals through easier recyclability.

Compact design optimizes space efficiency. Supports motor control and resistive loads. Rated for 5.5 kW power with three normally open contacts. Screw terminal connections ensure secure wiring. Operates between -40°C to +70°C for harsh environments.

Features 2 auxiliary contacts configured as 1 NO and 1 NC. Designed for DIN rail mounting for easy installation. Complies with IEC 61095 standards for industrial use.

This Schneider Electric contactor is ideal for industrial, manufacturing, and automotive applications requiring efficient and reliable motor control. Browse our selection of Contactors and control gear at EnvMart for more automation solutions.
